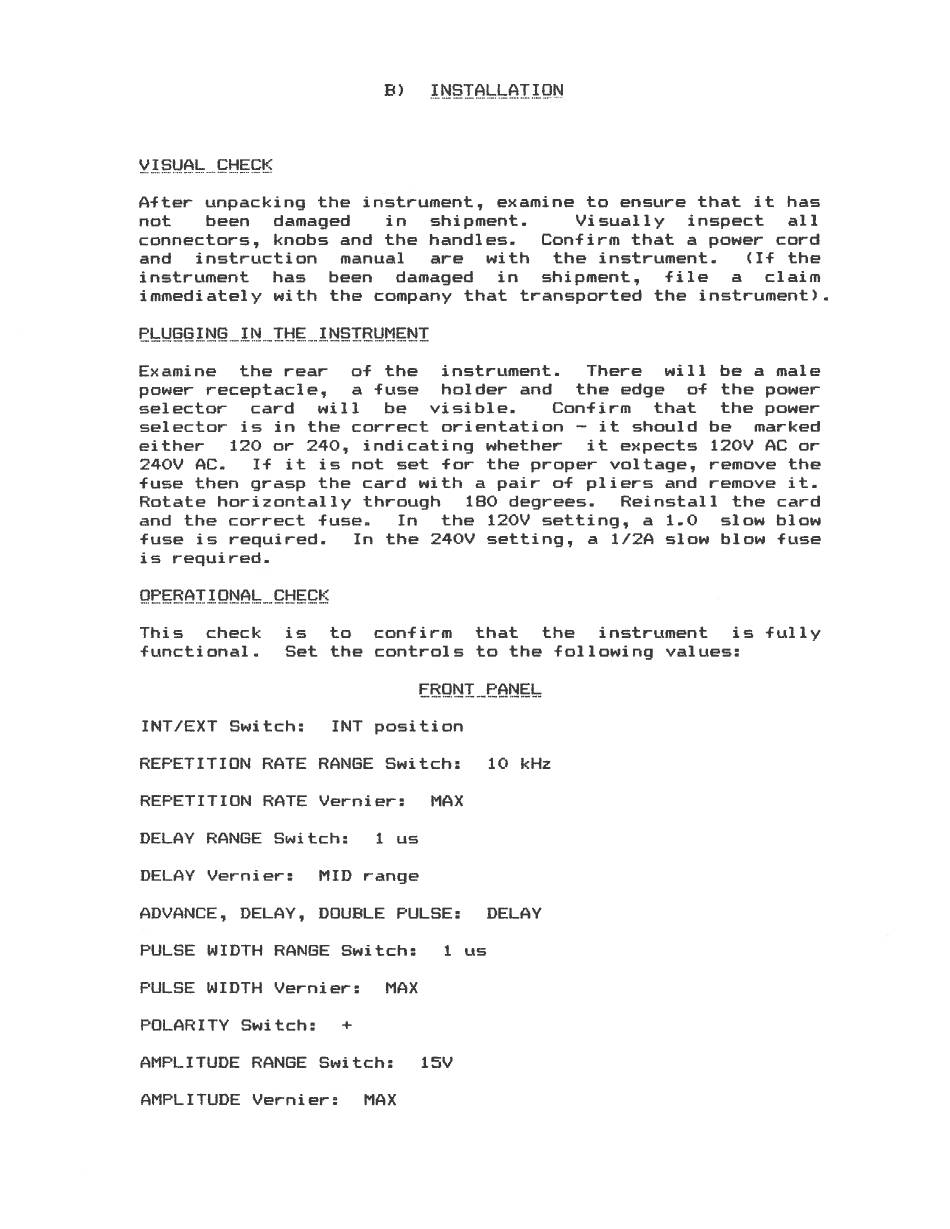

Avtech AV-1010-C-3MA Instructions Manual page 5

VISUAL CHECK
After unpacking the instrument, examine to ensure that it has
not been damaged in shipment. Visually inspect all
connectors, knobs and the handles. Confirm that a power cord
and instruction manual are with the instrument. (If the
instrument has been damaged in shipment, file a claim
immediately with the company that transported the instrument).
PLUGGING IN THE INSTRUMENT
Examine the rear of the instrument. There will be a male
power receptacle, a fuse holder and the edge of the power
selector card will be visible. Confirm that the power
selector is in the correct orientation ~— it should be marked
either 120 or 240, indicating whether it expects 120V AC or
240V AC. If it is not set for the proper voltage, remove the
fuse then grasp the card with a pair of pliers and remove it.
Rotate horizontally through 180 degrees. Reinstall the card
and the correct fuse. In the 120V setting, ai1.0 slow blow
fuse is required. In the 240V setting, a 1/2A slow blow fuse
is required.
OPERATIONAL CHECK
This check is to confirm that the instrument is fully
functional. Set the controls to the following values:
FRONT PANEL
INT/EXT Switches INT position
REPETITION RATE RANGE Switch: 10 kHz
REPETITION RATE Verniers MAX
DELAY RANGE Switch: 1 us
DELAY Vernier: MID range
ADVANCE, DELAY, DOUBLE FULSE: DELAY
PULSE WIDTH RANGE Switch: 1 us
PULSE WIDTH Verniers MAX
POLARITY Switch: +
AMPLITUDE RANGE Switch: 15¥V
AMPLITUDE Vernier: MAX
