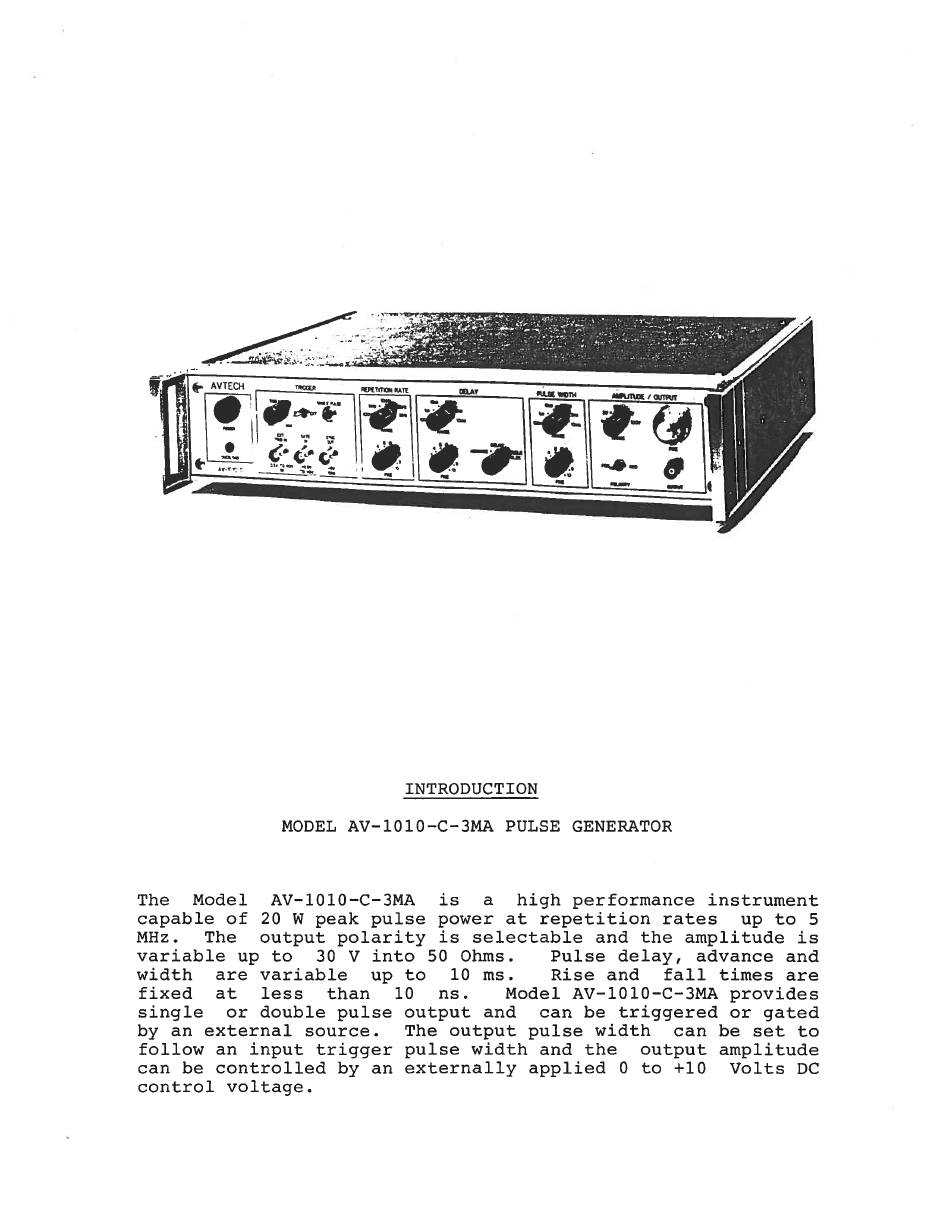

INTRODUCTION
MODEL AV-1010-C-3MA PULSE GENERATOR
The Model AV-1010-C-3MA is a high performance instrument
capable of 20 W peak pulse power at repetition rates up to 5
MHz. The output polarity is selectable and the amplitude is
variable up to 30 V into 50 Ohms. Pulse delay, advance and
width are variable up to 10 ms. Rise and fall times are
fixed at less than 10 ons. Model AV-1010-C-3MA provides
single or double pulse output and can be triggered or gated
by an external source. The output pulse width can be set to
follow an input trigger pulse width and the output amplitude
can be controlled by an externally applied 0 to +10 Volts DC
control voltage.
