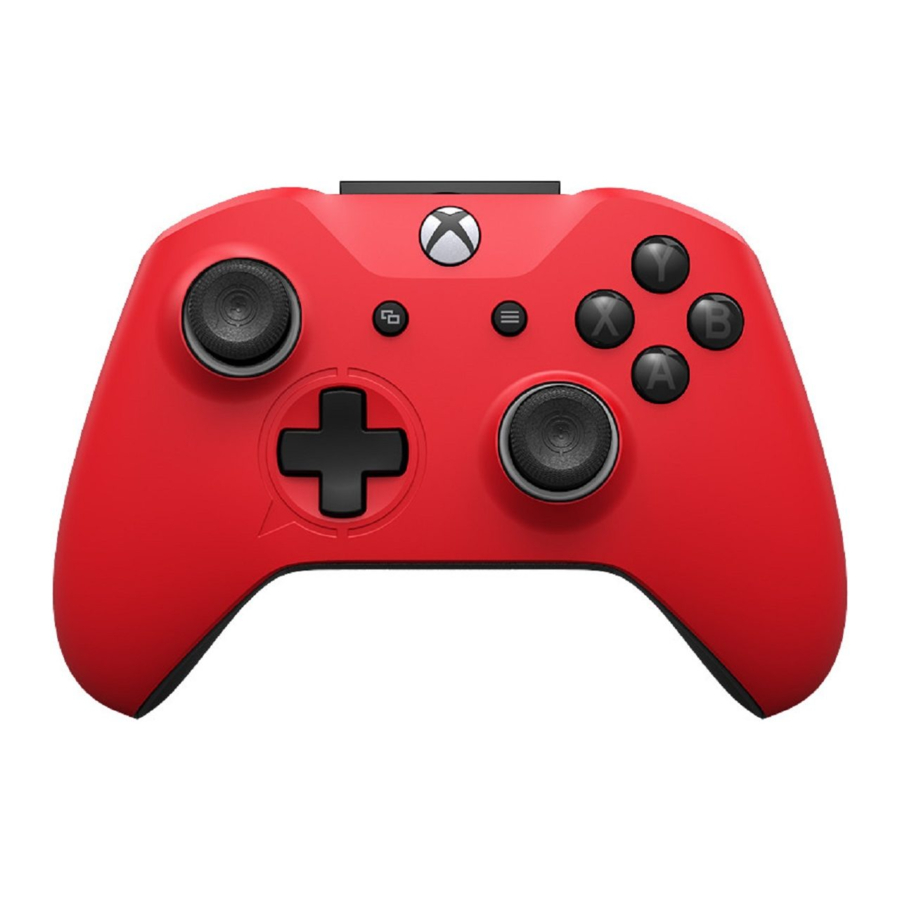

SCUF Prestige - Wireless Controller Manual

SCUF Prestige - Wireless Controller Manual

Advertisement

SCUF Prestige - Wireless Controller Manual

WHAT'S IN THE BOX

  • SCUF Prestige Wireless Controller
  • 10ft Braided Micro-USB Cable (for charging and wired play)
  • 2x Additional Thumbsticks
  • 1x EMR Mag Key (used to remap paddles)
  • 1x SCUF Key 0.9mm (used to adjust hair triggers)
  • Product Guide
  • Sticker Pack

DEVICE LAYOUT & FEATURES

DEVICE LAYOUT & FEATURES - Part 1

  1. Customizable Thumbsticks
  2. Anti-Friction Rings
  3. Menu Button
  4. Xbox Button
  5. Sync Button
  6. View Button
  7. Action Buttons (ABXY)
  8. Interchangeable Magnetic Faceplate
  9. D-Pad
  10. 3.5mm Audio Jack Port
  11. Xbox Chat Adapter Port

DEVICE LAYOUT & FEATURES - Part 2

  1. Bumpers (LB, RB)
  2. Triggers (LT, RT)
  3. Micro-USB Port
  4. Adjustable Hair Trigger
  5. Trigger Stop Switch
  6. Paddle Control System
  7. Reset Button (under paddle)
  8. High Performance Grip
  9. Electro-Magnetic Remapping Area
  10. Lithium-Ion Rechargeable Battery (enclosed)

DEVICE SET-UP

The SCUF Prestige for Xbox One & Windows offers dual mode Wireless (Bluetooth) / Wired (USB) connectivity.
Please follow the appropriate set-up instructions for your device.

Pairing your unit with your Xbox One system using the connect button

  1. Turn on your Xbox One system (pressing the Xbox button on your SCUF Prestige will not turn on the console until the controller is paired).
  2. Press the Xbox button on your SCUF Prestige to activate it. The Xbox button will start flashing.
  3. Press the connect button on your Xbox One system.
  4. Within 20 seconds, press and hold the controller's sync button until the Xbox button flashes. When the light stays lit, your controller is connected.

Pairing your unit with your Xbox One using the Micro-USB cable

  1. Connect the cable to the Micro-USB port in the back of the controller.
  2. Connect the other end of the cable to one of the USB ports on your Xbox One system.
  3. Press the connect button on your Xbox One system.
  4. Within 20 seconds, press and hold the controller's sync button until the Xbox button flashes. When the light stays lit, your controller is connected.

Charging

We recommend charging your SCUF Prestige via the Xbox One system. Using any other power source could result in damage to your controller.

  1. Connect the cable to the Micro-USB port in the back of the controller.
  2. Connect the other end of the cable to one of the USB ports on your Xbox One console.
  3. Expected charge time of the SCUF Prestige is four hours.
  4. Up to 30 hours on a single charge depending on use. If the vibration and Impulse Triggers are active, play time on a single charge will decrease.

Note: On the Xbox One X and Xbox One S systems, the connect button is on the front right, below the power button. On the original Xbox One system, the connect button is a circular button on the side, around the corner from the disc tray.

You can connect up to eight SCUF Prestige controllers to an Xbox One system.

For more information about how to connect your controller to a PC, please visit scuf.co/support

FEATURES & BENEFITS

PADDLE CONTROL SYSTEM

(P1, P2, P3, P4)
Paddles allow you to utilize more of your hands by keeping your thumbs on the thumbsticks, shortening the response time in between performing actions.

  • Any of the four paddles can be mapped to buttons or controller functions, including the bumpers and Menu / View buttons. For more information, see the "Electro-Magnetic Remapping" section.

Adding, removing, replacing or customizing your paddles:

  • To remove a paddle: lift slightly under the base of the paddle (see diagram) and slide up to release.
  • To replace a paddle: Locate the side-locking features on the paddle and align with controller channel (see diagram). When flush, lock the paddle by pushing it down into place. You will hear a "click" when the paddle is secured into place.

ELECTRO-MAGNETIC REMAPPING

The EMR Mag Key (see diagram) included in the box is used to easily remap any paddle to one of the following fourteen functions: A, B, X, Y, Left D-Pad, Right D-Pad, Up D-Pad, Down D-Pad, LS, RS, Menu, View, LB and RB, offering you ultimate gaming flexibility and customization.
FEATURES & BENEFITS - ELECTRO-MAGNETIC REMAPPING

To remap paddles:
Place your EMR Mag Key on the back of the controller between the two inner paddles (P2 and P3) with the SCUF logo facing the back of the controller. The key needs to remain magnetically attached to the back of the controller during the remapping process.

  1. Press and hold the paddle that you intend to remap, and simultaneously press and hold the controller function or button that you want to map it to.
  2. Release the button or controller function, then release the paddle.
  3. Repeat steps 1 & 2 for each paddle you wish to remap.
  4. Remove the EMR Mag Key from the back of the controller and your paddle / paddles will be remapped accordingly.

Note: If you try to remap a paddle to the Xbox button or the triggers (LT / RT), the read will be ignored and your paddle will remain mapped to the last mapped function.

TRIGGER CONTROL SYSTEM

The Trigger Control System consists of two modules: the Adjustable Hair Triggers and the Quick Shift Trigger Stops, which reduce latency and allow you to fine-tune the triggers and eliminate unnecessary trigger travel. Please note that trigger features may not be compatible with all games. If you experience any controller issues in or out of game, please return to the standard trigger settings as first troubleshooting step.

ADJUSTABLE HAIR TRIGGERS

You may want to adjust and fine-tune the position of your trigger to reduce movement in trigger resulting in faster response time. We recommend adjusting the Hair Trigger in-game by tightening until the in-game action is initiated, then loosening off slightly to your playing preference.
FEATURES & BENEFITS - ADJUSTING THE HAIR TRIGGERS

To use your Hair Trigger feature:

  • Insert the SCUF Key (0.9mm) into the adjustable trigger screw.
  • Turn the SCUF Key clockwise to tighten the Hair Trigger. Turn the SCUF Key counterclockwise to loosen the Hair Trigger.

To return to standard trigger position:

  • Insert the SCUF Key into the adjustable trigger screw and turn counterclockwise until the screw is flush with the back of the controller body.

QUICK SHIFT TRIGGER STOPS

Trigger Stops are designed to reduce trigger latency by eliminating the travel required past the activation point of the trigger. Use the Trigger Stop switches on the back of the controller to enable or disable the Trigger Stop.

"ON" position: the travel distance when releasing the trigger will be reduced. To turn the trigger stops on, push the Trigger Stop switch towards the outside of the controller. See diagram.
FEATURES & BENEFITS - TURNING ON THE TRIGGER STOPS

"OFF" position: travel distance. To turn the trigger stops off, push the Trigger Stop switch towards the inside of the controller. See diagram.
FEATURES & BENEFITS - TURNING OFF TRIGGER STOPS

CUSTOMIZABLE THUMBSTICK AREA

The SCUF thumbsticks are interchangeable and securely lock in place with the removable magnetic faceplate. The thumbsticks come in various lengths and shapes to accommodate your hand size and also provide a larger, more grippy surface area for improved accuracy and control.

To swap thumbsticks:

  • Remove the faceplate by lifting it from the controller chassis using the finger notch on the top right side of the controller (see diagram).
    FEATURES & BENEFITS - SWAPPING THE THUMBSTICKS
  • To remove your current thumbstick, lift it off the thumbstick shaft.
  • Align your selected thumbstick with the thumbstick shaft and press firmly to secure.
  • Align faceplate with the controller and push to secure. You will hear the faceplate "click" into place.

Note: The tail of the SCUF logo on the thumbstick should be positioned at the bottom left once the thumbstick is in proper position.

ANTI-FRICTION RINGS

The Anti-Friction Rings can also be swapped out and replaced. These rings are made with high grade self-lubricating materials to provide a pro-grade finish, so the thumbstick glides on contact.

INTERCHANGEABLE MAGNETIC FACEPLATE

This allows you to customize your controller's style. It can be removed by lifting it from the controller chassis using the finger notch on the top right side of the controller.

RESET BUTTON

In the event that you are encountering issues with your controller, one potential solution may be resetting your controller. The Reset Button is positioned beneath the inner right paddle (P2), and can be pressed using the SCUF Key (0.9mm) provided or a paper clip. To remove and replace the paddle: refer to Paddle Control System section. Pressing the Reset Button will restart your controller.

To swap the rings:

  1. Remove the faceplate by lifting it from the controller chassis using the finger notch on the top right side of the controller (see diagram in "Customizable Thumbstick Area" section).
  2. To remove the ring, push it from the inside of the front faceplate until release.
  3. To place a ring into a faceplate, push it into place from the front side aligning the teeth.
  4. Align faceplate with the controller and push to secure. You will hear the magnets "click" into place.

To swap the faceplate:

  1. Remove the faceplate by lifting it from the controller chassis using the finger notch on the top right side of the controller.
  2. Align the new faceplate with the controller and push to secure. You will hear the faceplate "click" into place.

Note: The Anti-Friction Rings on the faceplate may pop out when attaching the faceplate onto the controller chassis. If the rings become dislodged during this action, press the rings back into the faceplate until you hear a "click."

CONTACT US & TECHNICAL SUPPORT

For technical assistance or questions about your product, warranty and return questions as well as general inquiries, please visit scuf.co/support

Contact: scuf.co/contact

North America & International:
SCUF Gaming International LLC
3970 Johns Creek Court, Suite 325
Suwanee, GA 30024 USA

Europe:
SCUF Gaming Europe Limited
16 Gelders Hall Road
Shepshed
LE12 9NH Leicestershire, UK

U.S. and Canada:
+1 (844) 728-3488

U.K. & Europe:
(+44) 15 09 81 21 10

All Other Countries:
+1 (404) 851-9261

IMPORTANT SAFETY INFORMATION

Always read, understand and follow all warnings and instructions for your controller before use. Keep this Product Guide for future reference. See Important Safety Information section for more information.

Your health is important — please read through this section as closely as you read through every other part of the manual.

WARNING
To prevent serious injury or death: Stop playing and seek medical attention if you experience fatigue, nausea, shortness of breath, chest tightness, dizziness, discomfort, or pain.

Stop and rest if muscles, joints, or eyes become tired or sore.

Photosensitive Seizures. Some people may experience seizures when exposed to certain images, such as flashing lights or patterns in video games.

Immediately stop playing and seek medical attention if you experience lightheadedness, altered vision, eye or face twitching, jerking or shaking of arms or legs, disorientation, confusion, or momentary loss of awareness. Seizures may also cause loss of consciousness or convulsions that can lead to injury or death.

Parents should watch for and ask their children about the above symptoms because children and teenagers are more likely to experience these types of seizures. If you or any relatives have a history of seizures or epilepsy, consult a doctor before playing.

Sitting or standing farther away from the screen, using a smaller size screen, playing in a well-lit room, and not playing while sleepy or fatigued can reduce the potential for photosensitive seizures to occur.

Musculoskeletal Disorders.
When playing video games, you may experience discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you experience persistent or any type of recurring discomfort, seek medical attention.
Symptoms can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, blood vessels, and other parts of the body, including carpal tunnel syndrome, tendinitis, tenosynovitis, vibration syndromes and other conditions.
To potentially reduce your risk of experiencing a musculoskeletal disorder, use comfortable postures; keep your hands, fingers, and other body parts relaxed; and take breaks as needed.
If you have questions about musculoskeletal disorders, see a qualified medical professional.

Choking Hazard.
Your game controller and accessories are not toys and may contain small parts.
Please keep your controller and accessories out of reach of children under three years old.

Hearing Loss.
Extended exposure to loud noises may result in temporary or permanent hearing loss.
Set the volume to a level loud enough to hear clearly in quiet surroundings. If you can't understand someone nearby speaking in a normal voice, turn down the volume.
The more time you are exposed to high noise levels, the more likely you are to damage your hearing. The louder the sound, the less time is required to permanently damage your hearing. Even low volumes can damage your hearing, if you are exposed for many hours.

Personal Medical Devices.
Radio-frequency emissions from electronic equipment may negatively a ect the operation of other electronic equipment and cause them to malfunction.

Although these devices are designed, tested and manufactured to comply with regulations governing radio frequencies and EMC directives, the wireless transmitters and electrical circuits in the device may cause interference in other electronic equipment.

Persons with Pacemakers.
The Health Industry Manufacturers Association recommends a minimum separation of 15 cm (6 inches) be maintained between a wireless device and a pacemaker to avoid potential interference with the pacemaker. Wireless devices should not be carried in a breast pocket.
If you have any reason to suspect that interference is occurring, turn the device off immediately.

Other Medical Devices.
If you use any other personal medical device, contact the medical device manufacturer or your physician to determine whether it is appropriate for you to use other electronic devices near your medical device.

Controller.
Product may become warm to the touch during use, this is normal and should not indicate an issue with the controller.

WARNING
Batteries
Improper battery use may result in serious injury, death, or property damage as a result of battery fluid leakage, overheating, fire or explosion.
Battery fluid is corrosive, can cause skin and eye burns, and is harmful if swallowed. If fluid from the battery contacts skin or clothes, flush skin with water immediately and seek medical attention.
DO NOT crush, open, puncture, mutilate, heat above 95°F (35°C), apply direct heat to, or dispose of the controller in a fire.
DO NOT leave a battery-powered device in direct sunlight for an extended period, such as on the dashboard of a car during the summer.
DO NOT immerse the controller in water or allow it to become wet.
DO NOT charge your controller directly to wall outlets or car cigarette-lighter sockets.
DO NOT strike, throw, step on or subject the controller to severe physical shock.
DO NOT pierce the controller casing in any manner.
DO NOT attempt to disassemble or modify the controller in any way.
DO NOT recharge your controller near a fire or extremely hot conditions.

WARNING
Micro-USB Cable
To prevent serious injury or death:
DO NOT step on or crush cable.
DO NOT pinch or sharply bend cable, particularly where the cable connects to the controller and to the console.
DO NOT jerk, knot, sharply bend or otherwise abuse the cable.
DO NOT allow children or pets to play with, or chew on, the cable.
ALWAYS pull on the console connector when disconnecting the cable.
DO NOT pull on the cord.
Stop use immediately if Micro-USB cable becomes damaged in any way.

WARNING
To prevent potential trip or entanglement hazards, locate cable so people and pets are not likely to trip or to accidentally pull on the cable if they are near the controller and the Xbox One system.

WARNING
Use and Care of Your SCUF Controller
To prevent risk of electric shock, damage, fire, serious injury or death:
DO NOT attempt to repair, open or modify the controller in any way beyond exchanging interchangeable components discussed in this manual.
ONLY use SCUF approved components with your controller.

WARNING
Cleaning
To reduce the risk of fire or shock, do not expose the device to water or other type of moisture.
ONLY clean using a dry-cloth.
