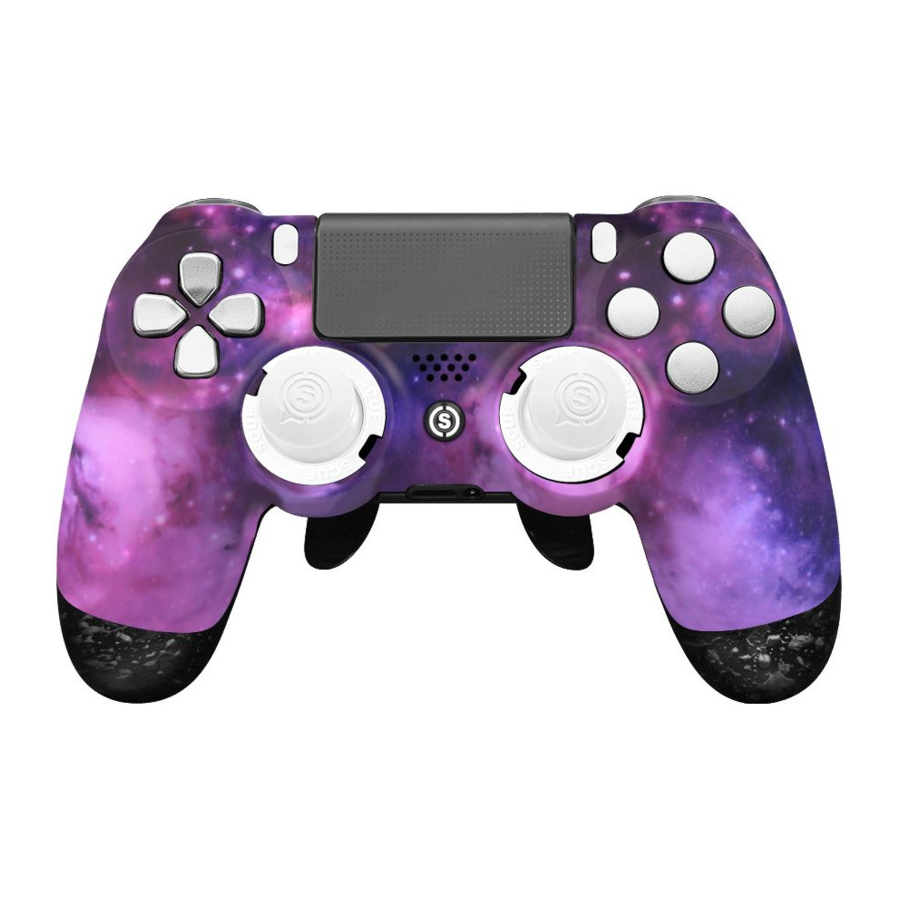

SCUF Infinity 4PS Pro - Controller Manual

Table of Contents

Contents

1 Device Set-Up
2 Product Paddle Removal and Replacement
3 Interchangeable Thumbstick Control Area
4 SCUF Trigger Covers
5 SCUF Adjustable Hair Trigger
6 SCUF Quick Shift Trigger Stop
7 SCUF EMR (Electro Magnetic Remapping)
8 Documents / Resources
- 8.1 Download manual

Device Set-Up

To set up your SCUF first turn on your gaming console, then sync controller to console. Start a game of your choice. Instructions may be found at: scufgaming.com/instructions

Product Paddle Removal and Replacement

Lift up slightly on the bottom of the paddle to be removed.
Push the paddle upwards, and twist slightly out toward the closest handle to remove the paddle.
To replace a paddle, twist the paddle into the paddle cavity from the top. Then slide to secure into place. You will hear a click when the paddle is secured in place.

Interchangeable Thumbstick Control Area

Place the SCUF Lock over the Infinity Ring and thumbstick on the controller. The notches on the bottom of the SCUF Lock will insert into the grooves of the Infinity Ring.
Turn the lock counter clockwise until movement stops. Pull straight up on the thumbstick to remove both ring and thumbstick at the same time.
Place a new thumbstick into your controller, make sure to line up the thumbstick on the thumbstick shaft to ensure correct placement. The thumbstick will lock into place on the controller.
Use your SCUF Lock to secure the ring in place by turning the lock clockwise until movement stops.

SCUF Trigger Covers

To remove the trigger cover, push the trigger down on the Quick Shift Trigger Stop.
Lift the bottom of the cover straight up to separate from the trigger mechanism.
To replace the trigger cover, push the trigger down on the Quick Shift Trigger Stop, then snap the top part of the cover on first, then tilt the cover down to snap on the bottom.

SCUF Adjustable Hair Trigger

Using the SCUF Adjustable Hair Trigger

Remove the short trigger cover or trigger extender.
Insert the 0.9mm SCUF key into the adjustable screw.
With trigger stops off turn the 0.9mm SCUF key two full clockwise turns to tighten and activate the adjustable hair trigger.
Turn the key counterclockwise to loosen and fine tune the adjustable hair trigger.
Note: It is recommended to adjust the hair triggers in-game to adjust to preference. Tighten the adjustable hair trigger in-game until the weapon fires, then loosen slightly to playing preference.
To turn the adjustable hair trigger off, Insert the 0.9mm SCUF key into the adjustable screw on the top of the trigger mechanism and turn counterclockwise until the top of the screw is flush against the top of the trigger mechanism.
Note: To adjust the hair triggers you must remove the trigger cover or trigger extenders Trigger Cover Removal instructions above.

SCUF Quick Shift Trigger Stop

Insert the 0.9mm SCUF Key into the Quick Shift Trigger Stop on the trigger mechanism.
Turn the 0.9mm SCUF Key 180° to either the left or right in order to turn on the Quick Shift Trigger Stop.
To turn off the Quick Shift Trigger Stop, Insert the 0.9mm SCUF Key into the trigger mechanism and turn 180° to either the left or right.

SCUF EMR (Electro Magnetic Remapping)

PLEASE NOTE: This is an optional feature available if selected at time of purchase.

WARNING: The SCUF Mag Key contains a powerful Neodymium Magnet.
See last page for Safety.

Turn on the game console and your SCUF controller.
Place the EMR Mag Key on the back of the controller (as indicated) so the magnet symbol latches onto the controller.
Press and hold the paddle that you wish to remap a function.
Press and hold the function (Χ, Ο, , , L DPAD, R DPAD, Left Thumbstick down, Right Thumbstick down) that you would like to map to a paddle.
Release the function.
Release the paddle.
Remove the EMR Mag Key and place it at least 5cm away from the back of the controller to prevent the SCUF controller from accidentally entering remapping mode.
