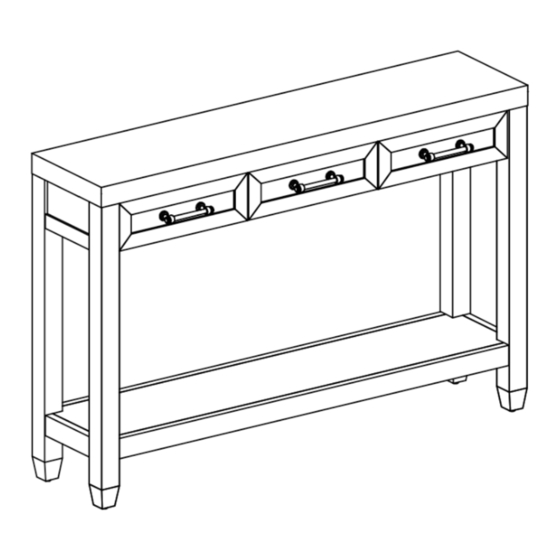

ASSEMBLY INSTRUCTIONS | STELLA NARROW CONSOLE TABLE
PARTS
A
Body (1pc)
B
Leg Frame (Right)
C
Leg Frame (Left)
D
Shelf (1pc)
Please do not begin assembly or discard any packaging until you have checked that all the parts and hardware are present. Follow instructions
closely as deviation from them may void your warranty and present a possible safety risk. It is recommended that assembly is done on a soft
surface to avoid any damage. Periodically check and re-tighten any fasteners. Wipe down all surfaces weekly with a clean cloth. Do not clean
any surfaces with harsh abrasives or chemicals.
Step 1
A
REMOVE DRAWERS
Step 2
HARDWARE CHECKLIST
01
Long Bolt M6x65 (6pcs)
02
Short Bolt M6x45 (4pcs)
03
Spring Washer (10pcs)
04
Flat Washer (4pcs)
05
Half Moon Washer (6pcs)
06
Allen Key (1pc)
DOWN
C
UP
19511 Pauling, Foothill Ranch, CA 92610 USA | www.EssentialsForLiving.com
B
A
D
HANDLE INSIDE
FRONT
BACK
Advertisement
Table of Contents
Related Manuals for Essentials For Living STELLA 6138.WHT/BBRS
Summary of Contents for Essentials For Living STELLA 6138.WHT/BBRS
- Page 1 ASSEMBLY INSTRUCTIONS | STELLA NARROW CONSOLE TABLE PARTS HARDWARE CHECKLIST Body (1pc) Long Bolt M6x65 (6pcs) Leg Frame (Right) Short Bolt M6x45 (4pcs) Leg Frame (Left) Spring Washer (10pcs) Shelf (1pc) Flat Washer (4pcs) Half Moon Washer (6pcs) Allen Key (1pc) Please do not begin assembly or discard any packaging until you have checked that all the parts and hardware are present.
- Page 2 ASSEMBLY INSTRUCTIONS | STELLA NARROW CONSOLE TABLE Step 3 Step 4 Fully tighten long bolts after installing the shelf Step 5 Adjust Feet Levelers INSERT DRAWERS 19511 Pauling, Foothill Ranch, CA 92610 USA | www.EssentialsForLiving.com...
