LK FSB 30 Assembly Instructions

LK Mobile Pumping Unit FSB 30
Design
The LK Mobile pumping unit FSB 30 is a mobile
unit for filling and de-aeration of heating, un-
der floor heating, solar and cooling systems. The
LK FSB 30 is also used for mixing anti-freeze of
the ethylene or propylene glycol type. An addi-
tional 30 litre mixing vessel for preparation of ex-
tra glycol mixture is available as an accessory. The
unit can also be used with filter bags (accessory) for
flushing and cleaning heating and cooling systems.
Intended usage
The product is intended for skilled personnel who are
trained and specialised in installation of heating systems.
Service and maintenance work may only be carried out by
approved specialists.
The filling unit is designed to be used for filling, flushing and
deaeration of heating and cooling systems with water or
mixtures water and glycol.
Do not pump any liquids with a flash point below 55 °C. Do
not pump petrol or solvents.
There can be a risk of scalding or burn injuries due to high
liquid temperature. This applies particularly when working
with solar heating systems or high temperature radiator
systems. For solar systems, only fill the system when it is
cold and if necessary cover the solar collectors.
Risk of burn injuries due to hot motor hood. Do not block
the connecting tubes for more than 1 minute to avoid over-
heating the motor.
There can be a risk of injury due to splashing liquid, e.g. if
the tubes are not properly connected.
Assembly instructions | LK Mobile Pumping Unit FSB 30

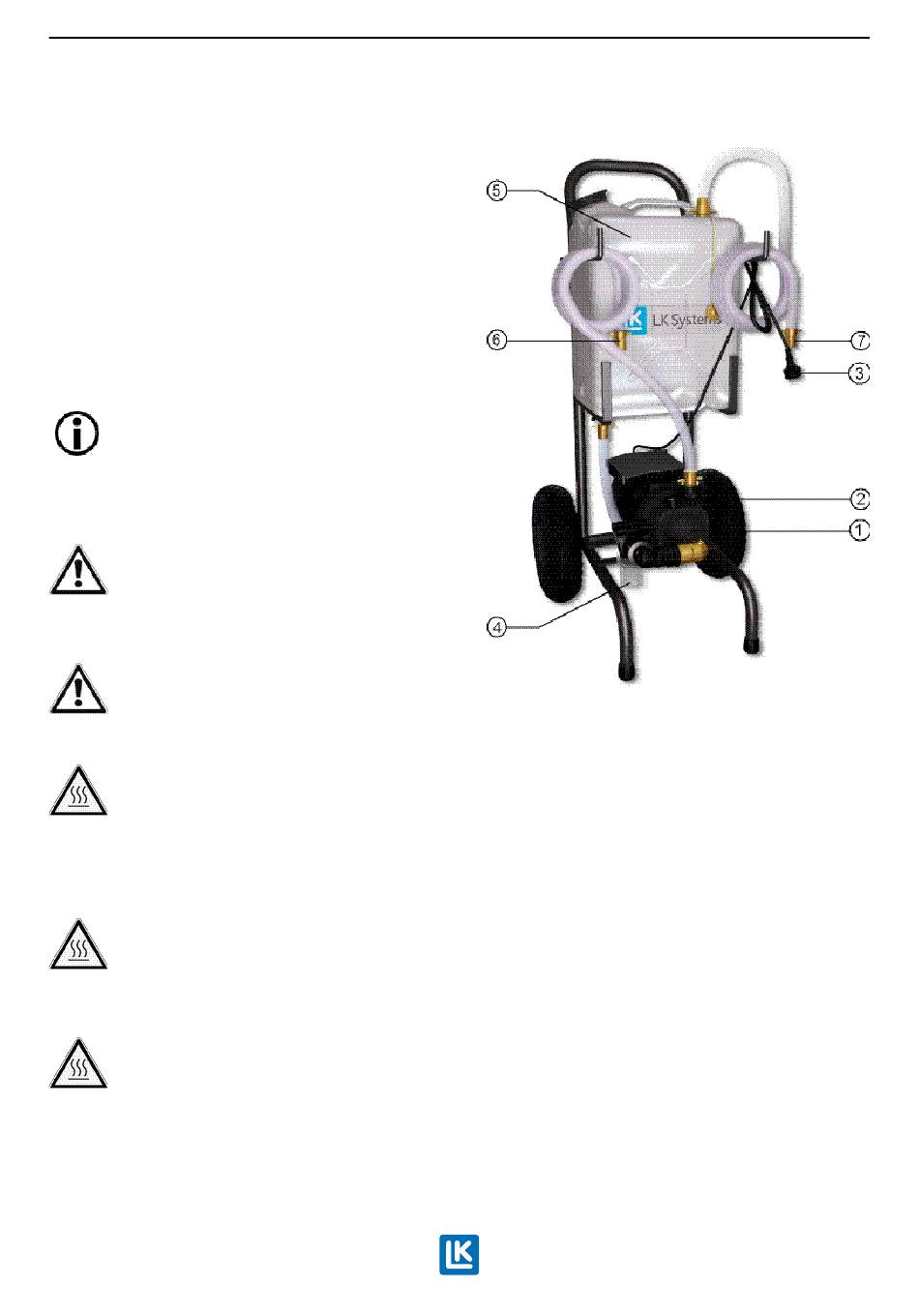

Construction
1. Pressure pump, centrifugal pump
2. Vent screw, pump
3. Mains plug, pump 230V AC
4. Filter
5. Mixing vessel, 30 litres
6. Connection hose, supply 3 m
7. Connection hose, return 3 m
EN.33.C.120.1511
1 (3)
