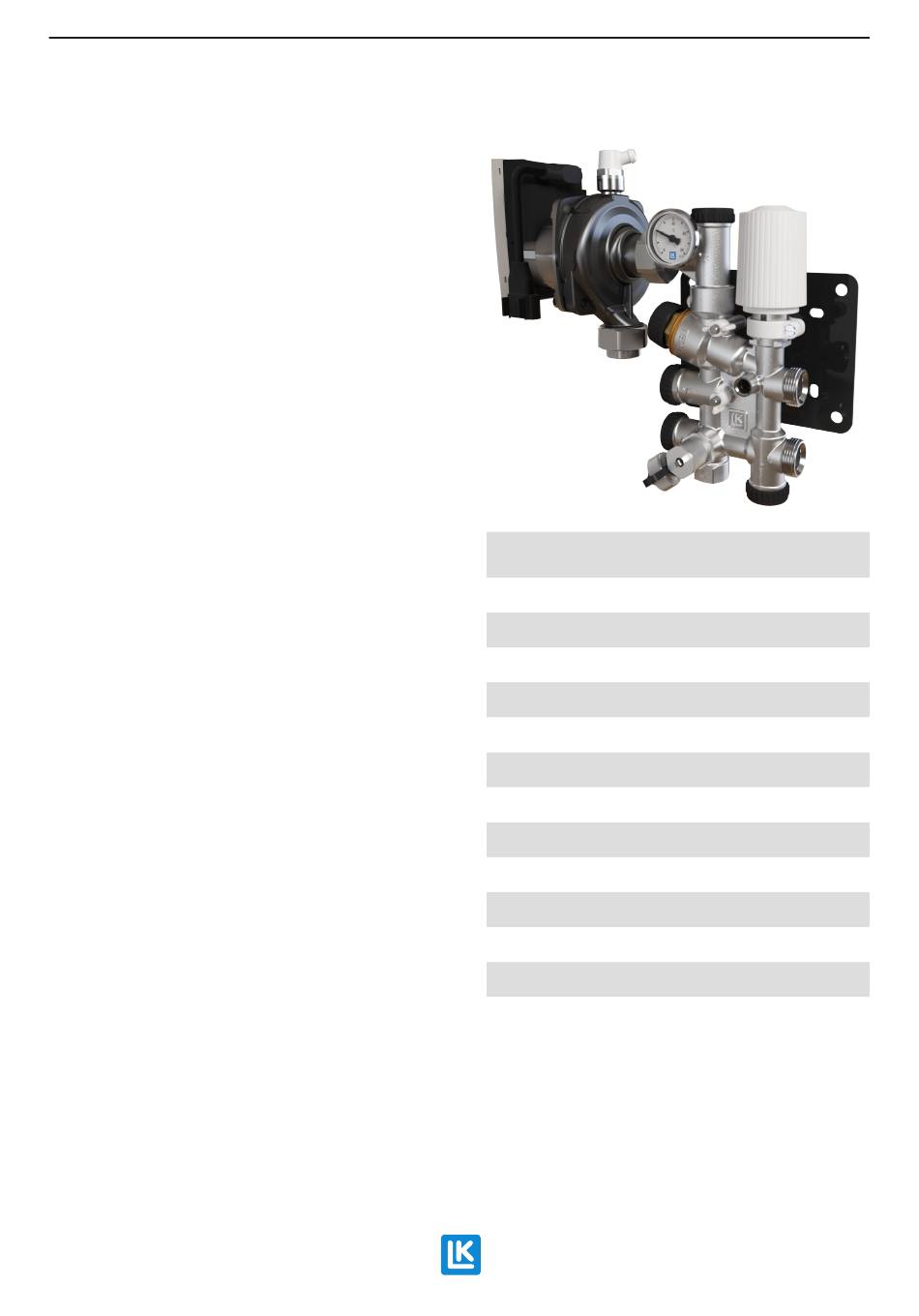

LK Minishunt M60n circulation pump
Wilo Para RSB 15/6 SC
Design
LK Minishunt M60n is a shunt group intended for use
when smaller underfloor heating areas are to be con-
nected to an existing heating system. LK Minishunt
M60n adapts the heating system temperature to the
lower temperature necessary for the underfloor heat-
ing system. Its capacity can normally be set at a heat-
ing need of 50 W/m² to a maximum 60 m² underfloor
heating area. Capacity is however dependent on pri-
mary temperature, pressure, laying method etc.
• For underfloor heating areas up to 60 m
• Compact design.
• Energy efficient circulation pump.
• Thermostat-controlled maximum limit of supply
temperature.
• Switchable between single or twin pipe systems.
• VF valve.
• Easy filling & air bleeding.
• Expandable to 2, 3 or 4 underfloor heating cir-
cuits.
Supplied with product
• Circulation pump Wilo Para RSB 15/6 SC, with
automatic speed control.
• T
hermostat with capillary tube sensor, length 2 m.
• Thermometer to place in one of the shunt group's
thermometer pockets.
• Hose 0.5 m for air bleeding.
• Primary connector ¾" EuroCone and 2 connectors
for CU15.
• Bracket.
Accessories
• Accessories for the primary connector include
connectors for CU12 mm and PEX-/PAL pipes
dim. 16x2, 20x2 and 20x2.8.
• The LK Elbow Pipes M60n for connecting the
primary connector when the feed pipe is from
below or above. The elbow pipes enables compact
assembly.
• Connection couplings for underfloor heating
pipes dim. 8, 12, 16 and 20 mm.
• The LK Mini Manifold for 2, 3 or 4 underfloor
heating circuits.
• Installation cabinets for built-in or wall mounting,
see heading Installation cabinets.
• The LK Heater 350 is an electric comfort heater
for underfloor heating installations using the
LK Minishunt M60n. The electric heating car-
tridge output is 350W and is sufficient under
normal conditions for underfloor heated areas
up to 12 m².
.
2

Table of contents

Design
Supplied with product
Accessories
Flow chart
Assembly instructions | LK Minishunt M60n
EN.33.C.204.2022-02-10
1
1
1
2
3
3
5
5
7
9
9
9
10
1 (10)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Minishunt M60n and is the answer not in the manual?

Questions and answers

Related Manuals for LK Minishunt M60n

Summary of Contents for LK Minishunt M60n

  • Page 1: Table Of Contents

    LK Minishunt M60n circulation pump Wilo Para RSB 15/6 SC Design LK Minishunt M60n is a shunt group intended for use when smaller underfloor heating areas are to be con- nected to an existing heating system. LK Minishunt M60n adapts the heating system temperature to the lower temperature necessary for the underfloor heat- ing system.

  • Page 2: Lk Minishunt M60N, Overview

    Assembly instructions | LK Minishunt M60n LK Minishunt M60n, overview 12. Temperature limiter (TEMP). Maximum limit for feed temperature to underfloor 1. The LK Elbow Pipes M60n (accessory) heating. Factory setting at 45 ºC. for connecting the primary connector when 13.

  • Page 3: Function And Requirements

    Function and requirements Note! Before any maintenance/repair work the pump power In order for the correct operation of the LK Mi- supply must be disconnected. Motor protection for the nishunt M60n and underfloor heating system, circulation pump is not required.
  • Page 4 To install the supplied thermostat, unscrew the hand wheel and assemble the thermostat then. Wireless or wired electronic room control for the LK Minishunt M60n are available as accessories. The capillary tube connected sensor is preferably The enclosed thermostat is then replaced with an placed on an interior wall.

  • Page 5: Installation Cabinets

    7 until the water runs clear. 6. Close the air bleed valve pos. 7 and filling valve pos. 17 and disassemble the hose LK Minishunt M60n assembled in LK Minishunt connection. Cabinet M60n XL. 7. Open the primary side by resetting the thermostat valve pos.

  • Page 6: Circulationspump

    Assembly instructions | LK Minishunt M60n Adjustment NOTE! If the temperature is too low, see As the LK Minishunt M60n is intended for con- Troubleshooting. Note that at start up a nection to existing heating systems, the available system in an unheated concrete slab,...
  • Page 7 Assembly instructions | LK Minishunt M60n For underfloor heating it is recommended that the pump is set to constant pressure control. Choose the constant pressure curve that best matches the requirements of the system, see capacity chart. Ensure that the pump never runs dry and the system is well vented before use.

  • Page 8: Troubleshooting

    If the above adjustments have been performed and there is still no heat reaching the underfloor heating The LK Minishunt M60n is supplied in the twin pipe circuit, this can be an indication of low available drive design. For the single pipe system, switching will need pressure from the primary side.

  • Page 9: Technical Data

    Assembly instructions | LK Minishunt M60n Technical data Flow diagram Article number 243 52 15 Max. operating pressure 0.6 MPa Max. pressure differential 0.1 MPa in operation. Operational temperature +12 - +55 ºC secondary Operational temperature Max. 80 ºC primary...

  • Page 10: Dimensions Drawing

    Assembly instructions | LK Minishunt M60n Dimensions drawing Right Left EN.33.C.204.2022-02-10 LK Systems AB, Box 66, 161 26 Bromma | www.lksystems.se 10 (10)
