resideo PROA7-EAE Installation And Setup Manual

PROA7-EAE Security System Control Panel
Installation and Setup Guide
This Quick Installation Guide provides the basic steps to install the Burglar and Fire
Alarm Control Panel quickly and easily, using the built-in programming defaults. The
control panel is designed to be mounted on a wall using the backplate.
STEP 1 - Installing the Rechargeable Backup Battery and
Power Connector
1. Remove the left side cover to gain access to the PROLTES-EU communication
module.
2. Remove the PROLTES-EU communication module from the control panel.
3. Install the SIM in the communication module. Refer to Figure 2.
a. Slide the metal lock to unlock the SIM card holder.
b. Open the hinged SIM card holder.
c. Fully insert the SIM card into the slot in the SIM card holder.
d. Close the hinged SIM card holder and slide the metal lock to secure it
closed.
NOTE: It may be necessary to apply downward pressure on the SIM card to
slide the lock.
4. Reinstall the PROLTES-EU communication module into the control panel.
5. Reinstall the left side cover.
6. Remove the right-side cover.
7. Insert the Battery Pack into the case.
8. Connect the battery connector to the receptacle on the PC board.
9. Connect the power cable to the GND and +9V terminals on the backplate (see
figure 3). Refer to Table 1 for wire gauge and length. Do not apply power at
this time.
10. Reinstall the right-side cover.
PROWIFIZW-EU and PROLTES-EU Communications Module Note: Refer to the
Specific Module Installation section in the online Installation & Setup Guide (P/N R800-
27956A or newer) for installation instructions.

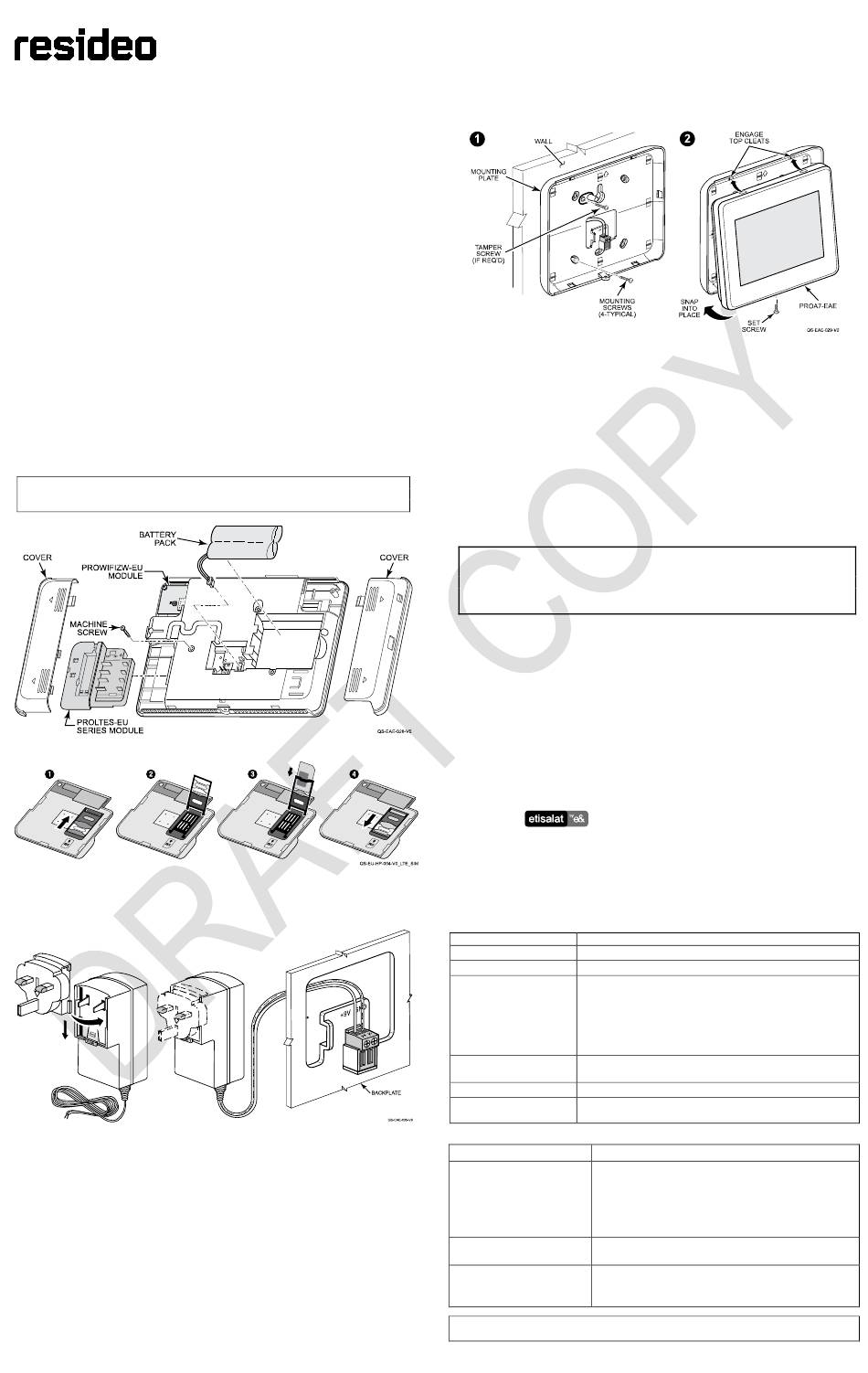

Figure 1 – PROA7-EAE Assembly
Figure 2 - PROLTES-EU SIM Card Installation
Wiring the Transformer to the Backplate
Figure 3 – Wiring the Transformer
Mounting the Backplate to a Wall
1. Secure the backplate to the wall with 4 screws.
2. Install the Tamper Screw as shown (if required).
3. Secure the Control to the backplate by aligning the slots on the backplate and
sliding the unit up until tabs on the wall mount are engaged. Then push it toward
the wall until to lock it in place.
4. Secure the Control with the set screw.
(Refer to Figure 4)
Figure 4 – Wall Mount Installation
STEP 2 - Setting up the Communication Links
NOTE: Do not connect to a receptacle controlled by a switch.
By default, the control panel is pre-installed with the PROLTES-EU LTE
communicator. Plug the power supply into a 24-hour, 240VAC unswitched outlet.
Upon power-up, the "Please Standby!" will be displayed on the home screen and the
communicator connects to the Etisalat Cloud Services.
Optional: Settings → Wi-Fi → Master User Pin (User Code) → Wi-Fi Networks, Add
Networks Manually, or WPS → Enter required information and/or follow
prompts → Save.
STEP 3 – Registration, Programming, and Testing
The control panel is preregistered from the factory and is ready to communicate
through cellular upon power up. Programming and Testing is conducted through the
Etisalat Cloud Services or the local programming mode.
IMPORTANT!
Once the programming procedure has started and the unit is powered up,
do not remove power, disconnect the battery, or open the case.
Disconnecting power or activating the tamper switch can cause
unpredictable programming results.
Testing the System
The following test modes are available:
Test Sensors (Walk Test)
•
• Test Communicator
Enter Test mode (Walk Test)
1. Select Test and enter the Master User Pin (User Code).
2. Select System Tests.
3. Select Test Sensors. The system enters Walk Test mode. Follow the prompts.
4. Open each protected door and listen for three beeps from the keypad, followed
by the zone's Voice Descriptor. Identification of each faulted protection point,
battery and signal strength appears on the display.
5. Walk in front of the motion sensor and listen for three beeps and the zone's voice
descriptor.
6. When testing is complete, select End Test and follow the prompts.
7. Select the icon to return to the home screen.
Shutting Down the System
To avoid corrupting the control's memory, before removing power from the system:
1. Disarm the system.
2. Wait 30 seconds.
3. Unplug the power supply.
4. Disconnect the battery.
Features and Capacities
Feature Details
Partitions 4
Maximum Devices 128 PROSIX Intrusion/Fire Zones
Z-Wave™ Supports up to 78 Z-Wave devices with the following
maximums:
Light Modules................................................................. 60
Door Lock: ...................................................................... 6
Z-Wave Thermostats: ...................................................... 6
Garage Door Controls ...................................................... 6
Security Pins (User
96 Includes Master Pin (#1)
Codes)
Event Log 4,000 events
• WCDMA Bands: BI, BIII, and BVIII for 3G
Communication Bands
• LTE Bands: B1, B3, B7, B8, B20, and B28A for 4G
Specifications
Dimensions: 200mm (7.875") W x 146mm (5.75") H x 25.4mm (1.0") D
Voltage Input: Use Only Shenzhen Honor Electronics Co., Ltd Model
ADS-25SGP-12 09023E (P/N 902507682100203R) or
Moso Power Supply Technology Co, Ltd Model MSA-
C2500IC9.0-24P-zz
(Resideo P/N R300-12262) – 110-240VAC, 50/60 Hz,
9VDC, 2.5A.
24-Hour Backup Battery:
P/N 300-11186: Rechargeable Backup Battery: Lithium-
ion battery pack rated at 3.65V, 5000mAH
Operating Temperature 0 °C - 49 °C (32 °F - 120 °F)
NOTE: Backup battery only charges at temperatures
THIS SYSTEM MUST BE CHECKED BY A QUALIFIED TECHNICIAN
AT LEAST ONCE EVERY THREE (3) YEARS.
below 45 °C (113 °F).
