Summary of Contents for TITTLA KMWC408

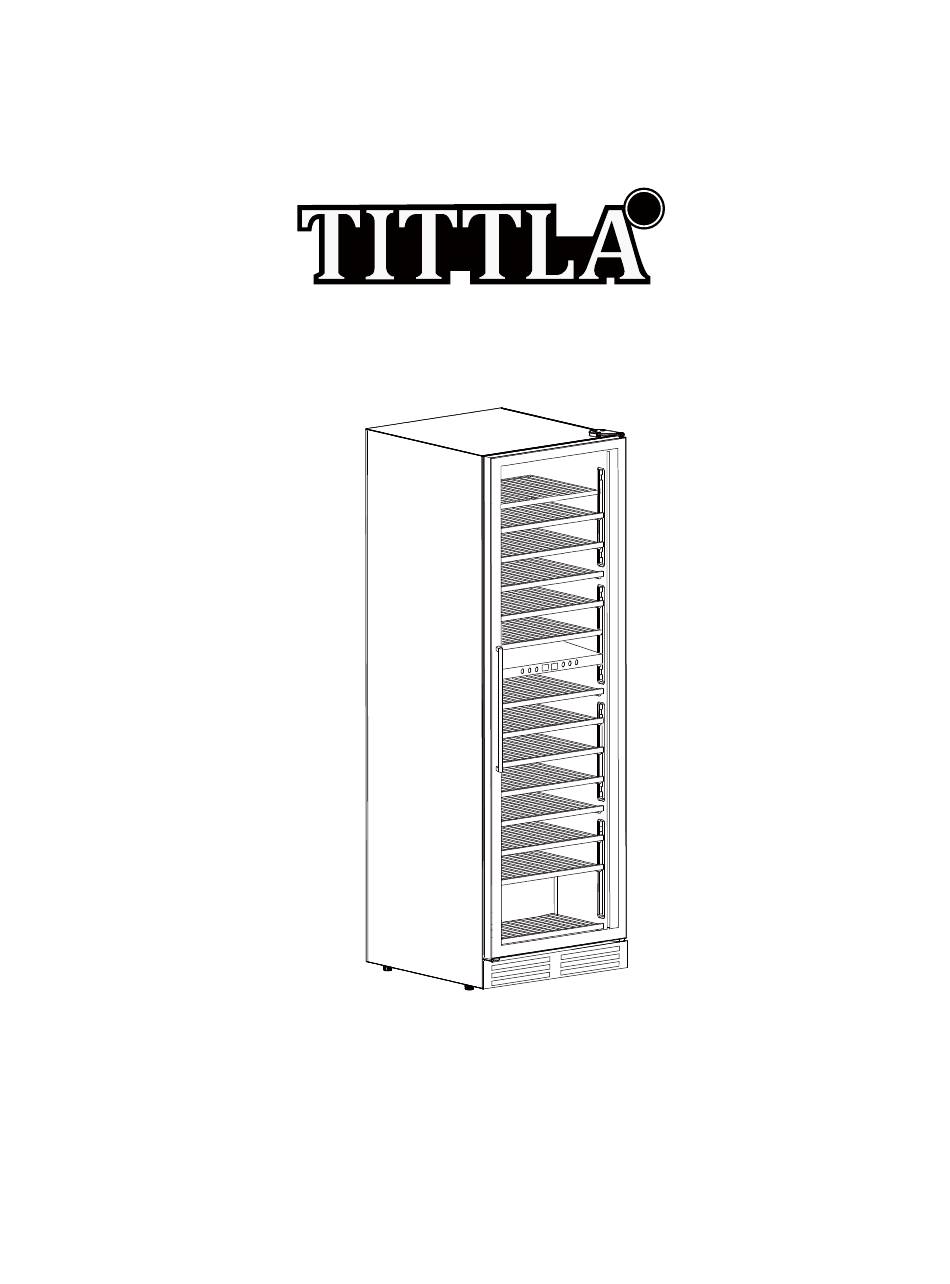

- Page 1 INSTRUCTION MANUAL BUILT-IN WINE COOLER MODEL: KMWC408 E-mail: Support@tittla.com Phone: 1(510)228-4672 Read this manual and follow all safety rules and operating instructions before first use of this wine cooler.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT DIAGRAM INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler To Install Stainless Steel Handle To Install Your Wine Cooler OPERATION INSTRUCTIONS Controls Recommended Temperature Settings Storage Shelves CARE & MAINTENANCE Cleaning Your Wine Cooler Power Failure Vacation Time Moving Your Wine Cooler... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. This wine cooler complies with the applicable safety requirements and is safe for daily use. However, basic safety precautions should always be followed when using an electrical appliance, to reduce the risk of fire, electric shock, and personal injury. - Page 4 Do not use this wine cooler for other than its intended purpose. For indoor, household use only. Move this wine cooler by 2 people. Failure to do so can result in injury. Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below 32°C (90°F).
-
Page 5: Product Diagram
PRODUCT DIAGRAM Control Panel Leveling Legs Top Hinge Shelves Glass Door with Handle Exhaust Window... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove the exterior and interior packaging. Check to be sure you have all of the following parts: 14 Shelves Stainless Steel Handle Instruction Manual 2 Extra Screws for Installing Handle IMPORTANT: Before connecting this wine cooler to a power source, let it stand upright for approximately 24 hours. -
Page 7: To Install Your Wine Cooler
Illustration #1 Illustration #2 1 Gasket 2 Screw 3 Screw Driver 4 Handle To Install Your Wine Cooler This wine cooler is designed for free standing or built-in (fully recessed) installation. Place your wine cooler on a solid and level floor that is strong enough to support it when it is fully loaded. - Page 8 fluctuate, and the temperature range of 5ºC-18ºC (40ºF-65ºF) may not be reached. Connect the wine cooler to an exclusive, properly grounded, standard electrical supply (115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and ordinances.
-
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Controls After plugging the wine cooler into a wall outlet, the cooler would turn on automatically and the LCD screen would show the temperature inside of the cooler. After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before placing wine bottles in the wine cooler. -
Page 10: Recommended Temperature Settings
Light Control The light will automatical turns off 10 mins later for energy saving. Note: To keep the light staying on always, please press the lighting mark until you hear 2 “beep” Recommended Temperature Settings Storing wines at the proper temperature is important. To preserve them as long as possible, wine needs to be stored at approximately 55°... -
Page 11: Shelves
Shelves To remove the shelves from the track, pull each shelf out to the shelf post,as shown infigure A. Lift it up again, then slowly pull the shelf out, as shown in figure B. Figure A Figure B CARE & MAINTENANCE Cleaning Your Wine Cooler IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. -
Page 12: Power Failure
Power failure Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler. If the power is off for an extended period of time, proper steps should be taken to protect your contents. Vacation Time Leave the wine cooler operating during vacations of less than three weeks. -
Page 13: Charcoal Filtration System
Charcoal filtration system Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions. Your wine cooler is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The wine cooler may not be plugged Ensure the wine cooler has been in, or plug may be loose. plugged in properly. The wine cooler The wine cooler is turned off. Press to turn on the cooler. does not run. - Page 15 PROBLEM POSSIBLE CAUSE SOLUTION Not plugged in. Plug the cooler in. The circuit breaker tripped The light does not Check the breaker and/or fuses. or a blown fuse. work. The light button is “OFF”. Press to turn the light ON. The cooler is not leveled.
- Page 16 15 days upon receipt of the product. 2. Customers are entitled to free repair service from TITTLA for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of selling.
