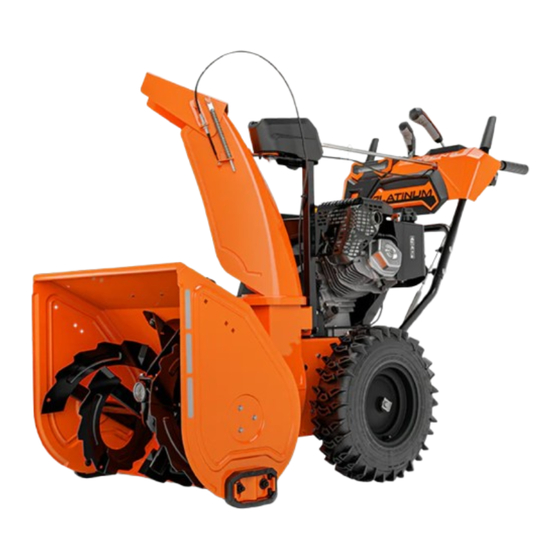

Ariens Sno-Thro Platinum 24 SHO EFI CE Operator's Manual
  1. Manuals
  2. Brands
  3. Ariens Manuals
  4. Snow Blower
  5. Sno-Thro Platinum 24 SHO
  6. Operator's manual

Ariens Sno-Thro Platinum 24 SHO EFI CE Operator's Manual

Hide thumbs Also See for Sno-Thro Platinum 24 SHO EFI CE:
Table of Contents

Advertisement

Quick Links

Sno-Thro
®
Platinum Series
Models
Operator's Manual
921327 – Platinum 24 SHO EFI CE
Návod k obsluze
(SN 000101 +)
Betriebsanleitung
Lea el Manual del operador
Käyttäjän käsikirja
Manuel de l'opérateur
Kezelési útmutató
Manuale d'uso
Gebruikershandleiding
Brukerhåndbok
Instrukcja obsługi
Руководство оператора
Priročnik za uporabo
Návod na obsluhu
Instruktionsbok
Kullanıcı Kılavuzu
E10
•
05136015A
7/18
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sno-Thro Platinum 24 SHO EFI CE and is the answer not in the manual?

Questions and answers

Related Manuals for Ariens Sno-Thro Platinum 24 SHO EFI CE

Summary of Contents for Ariens Sno-Thro Platinum 24 SHO EFI CE

  • Page 1 Sno-Thro ® Platinum Series Models Operator’s Manual 921327 – Platinum 24 SHO EFI CE Návod k obsluze (SN 000101 +) Betriebsanleitung Lea el Manual del operador Käyttäjän käsikirja Manuel de l'opérateur Kezelési útmutató Manuale d'uso Gebruikershandleiding Brukerhåndbok Instrukcja obsługi Руководство оператора Priročnik za uporabo Návod na obsluhu Instruktionsbok...
  • Page 2 O ZHODE, VYDANÉ VÝROBCOM – ÜRETİCİ TARAFINDAN DÜZENLENEN EC UYGUN- LUK BEYANI We the undersigned, ARIENS COMPANY, certify that: Ние, долуподписаните от фирма ARIENS, удостоверяваме, че: My, nížepodepsaní, ARIENS COMPANY, prohlašujeme, že: Der Unterzeichnete, ARIENS COMPANY, bescheinigt, dass: Nosotros, los abajo firmantes, ARIENS COMPANY, certificamos que: Allekirjoittanut, ARIENS COMPANY, vakuuttaa, että: Nous, soussignés ARIENS COMPANY, certifions que:Alulírott, ARIENS COMPANY,...
  • Page 3 Správce shody výrobku a záruky (správce technické Dátum – Data – Datum dokumentace) / Director Product Conformance & War- – Dato – Data – Data – Ariens Company ranty (Archivar der technischen Akte) / Director de дата – Datum – Dátum Brillion, WI 54110-1072 USA conformidad de los productos y de garantía (Conser-...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS WELCOME ..... . 1 MAINTENANCE ....12 Register Your Product!.

  • Page 5: Welcome

    WELCOME Original Instructions. Congratulations on your purchase and welcome to the Ariens family! Every snow thrower in the Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come.

  • Page 6: Safety

    • BECOME ALERT! penalties. Emission controls and components • OBEY THE MESSAGE! can only be adjusted by an Ariens Company dealer or an authorized engine SIGNAL WORDS manufacturer's service center. Contact your The safety alert symbol above and signal Ariens Company Equipment Retailer...

  • Page 7: Safety Decals

    4. Notice Safety Decal Descriptions NOTICE: Indicates information or procedures 1. CAUTION! that are considered important but not hazard related. If not followed, property damage could result. Danger! 5. Important IMPORTANT: Indicates general reference information worthy of special attention. SAFETY DECALS Only use clean-out tool to The safety decals on your machine are visual clear blockages.

  • Page 8: Safety Rules

    SAFETY RULES 2. DANGER! The following safety instructions are based on the B71.3 specifications of the American National Standards Institute in effect at the Danger! time of production. Training Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit.
  • Page 9 Handle fuel with care; it is highly flammable. Thrown objects can cause injury. Check for weak spots on docks, ramps or floors. Avoid • Use an approved fuel container. uneven work areas and rough terrain and • Never add fuel to a running engine or hot stay alert for hidden hazards.
  • Page 10 Disengage attachment when not in use and Maintenance and Storage when traveling from one work area to Secure unit so it will not tip over during another. maintenance. Disengage power to the auger / impeller Before cleaning, removing clogs or making when snow thrower is transported or not in any inspections, repairs, etc., disengage use.
  • Page 11 Avoid starting or stopping on a slope. Do not park unit on a slope unless Accessories absolutely necessary. When parking on a Use only Ariens Company-recommended slope always block the wheels. attachments or accessories that are Do not operate near drop-offs, ditches, or designed for your unit and that are embankments.

  • Page 12: Controls & Features

    CONTROLS & FEATURES Figure 3 1. Engine Key 16. Discharge Chute Deflector Lever 2. Fuel Tank and Cap 17. Heated Hand Grip Switch 3. Electric Start Button 18. Scraper Blade 4. Throttle Control Knob 19. Skid Shoe (2) 5. Oil Fill / Dipstick 20.

  • Page 13: Engine Key

    SPEED SELECTOR LEVER WARNING: Read and See Figure 6. understand the Safety section Controls the speed of forward and reverse before proceeding. travel. See Figure 3 for all controls and features locations. ENGINE KEY See Figure 4. Controls power to the engine. The key cannot be removed when in run position.

  • Page 14: Traction Drive Clutch Lever (Left Side)

    TRACTION DRIVE CLUTCH DISCHARGE CHUTE DEFLECTOR LEVER (LEFT SIDE) LEVER See Figure 8. See Figure 10. Allows unit to travel forward and in reverse. Moves discharge deflector up or down to control height of snow discharge. Figure 8 Figure 10 DUAL HANDLE INTERLOCK Allows auger / impeller to rotate without HEATED HAND GRIP SWITCH...

  • Page 15: Operation

    87. DO NOT use E85 blended fuels; the engine is not E20 / E30 / E85 compatible. The maximum recommended ethanol content is 10%. Ariens recommends using a quality fuel stabilizer in all fuel. See Short Term on page 24.

  • Page 16: Operate Unit

    Safety section before proceeding. 1. Rotate discharge chute and move deflector to desired positions. Your Ariens dealer can provide service and 2. Select desired speed. adjustments to keep your unit operating at 3. Engage attachment clutch. peak efficiency. Contact an authorized engine IMPORTANT: For best snow-throwing manufacturer’s service center for engine...

  • Page 17: Maintenance Schedule

    • 414 ml (14 oz.) cartridge (1) 00036700 Explosive separation of tire and rim parts is possible. Ariens L3 Lube – 237 ml (8 oz) 00068800 • DO NOT inflate tires above Shear Bolt and Nut 52100100 the recommended pressure.

  • Page 18: Check Engine Oil

    6.1 cm – 6.7 cm (2.4" – 2.6") from the flat surface of the gearcase cover. IMPORTANT: Ariens recommends using only Ariens L3 synthetic severe duty gear lube (see Service Parts on page 13). Using other lubricants will not automatically void unit...

  • Page 19: Lubricate Auger Shaft

    3. Hand rotate auger on auger shaft. 4. Align shear bolt holes in auger with shear bolt holes in shaft. 5. Insert bolts through holes. 6. Secure bolts with nuts. 7. Tighten bolts to 7.9 N•m – 16.5 N•m (5.8 lb-ft – 12.2 lb-ft). If a torque wrench is unavailable, tighten bolts until they no longer spin freely.

  • Page 20: Adjustments

    ADJUSTMENTS WARNING: AVOID INJURY. Read and understand the Safety section before proceeding. ADJUST SCRAPER BLADE The auger housing may be damaged if blade wears down too much. 1. Tip unit back onto handlebar, support auger housing and loosen nuts retaining blade.

  • Page 21: Replace Shear Bolts

    1. Replacement Shear Bolts Figure 21 IMPORTANT: Ariens recommends using only Ariens OEM shear bolts when replacing shear bolts. See Service Parts on page 13. See Figure 16. 1. Align shear bolt holes in auger with shear bolt holes in the shaft.

  • Page 22: Adjust Speed Selector Lever

    1. Shift Rod 2. Adjustment Pivot Pin 1. Discharge Chute Gear Cover 3. Speed Selector Arm 2. Rear Adjustment Nut 4. Hairpin 3. Forward Adjustment Nut Figure 25 4. Lock Arm Figure 24 ADJUST ATTACHMENT CLUTCH & BRAKE ADJUST SPEED SELECTOR LEVER WARNING: AVOID INJURY.
  • Page 23 Check Attachment Idler Arm Roller Clearance 1. Place unit in service position and remove bottom cover. 2. Engage attachment clutch and check the clearance between the frame and plastic roller on the lower end of the attachment idler arm. Roller should be 12.7 mm –...
  • Page 24 • If there is less than 1.6 mm (1/16") gap, loosen idler adjustment nut and move idler away from belt or pulley. Position idler to achieve a 1.6 mm (1/16") minimum brake pad gap and a 12.7 mm – 22.2 mm (1/2" – 7/8") gap between the plastic roller and the frame.

  • Page 25: Adjust Traction Drive Clutch

    ADJUST TRACTION DRIVE 4. With traction clutch disengaged, check that the drive plate touches the stop bolt. CLUTCH See Figure 33. See Figure 32. If unit does not drive correctly, adjust traction clutch to compensate for friction disc wear. 1. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool.

  • Page 26: Troubleshooting

    Spark plug is faulty. Replace spark plug. Refer to engine manual. Engine is faulty. See your Ariens dealer or authorized engine manufacturer’s service center. Also, refer to your unit’s service manual. Contaminated fuel supply. Replace with clean fuel. Battery is dead.
  • Page 27 TROUBLESHOOTING Problem Probable Cause Correction Unit runs A build up of fumes in the fuel Slowly loosen the fuel tank cap. briefly then tank is creating too much stops. pressure in the fuel tank. Friction disc is worn. Replace friction disc. Refer to the service guide for your unit.

  • Page 28: Storage

    ACCESSORIES the stabilizer to the container before adding fuel. a. Add Ariens fuel stabilizer (see Service See your Ariens dealer for a complete list of Parts on page 13) or equivalent compatible accessories and attachments for according to manufacturer's your unit.

  • Page 29: Specifications

    SPECIFICATIONS Model Number 921327 Description Platinum 24 SHO EFI Engine Ariens AX Gross Torque* – N•m (lb-ft) 23.1 (17.0) 369.0 (22.5) Displacement – cm Maximum RPM – No Load 3600 ± 50 Electric Start 230V Fuel Tank Capacity – liter (qt) 1.9 (2.0)

  • Page 30: Warranty

    90 days after the date of purchase. An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser;...
  • Page 31 Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens service parts are not covered by this warranty and may void the war- ranty if the parts result in premature wear or damage to the product.
  • Page 32 Parts and Accessories Service replacement parts and non-serialized accessories are warranted for 90 days from date of purchase. Parts and accessories must be installed by an authorized Ariens dealer to be covered. Labor is not included. Customer Responsibilities Register the product immediately at the time of sale. If the dealer does not register the product, the customer must register the unit on-line at www.ariens.com.
  • Page 33 Disclaimer Ariens Company may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating the Ariens Company to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.
  • Page 34 655 West Ryan Street Brillion, WI 54110 www.ariens.com...
