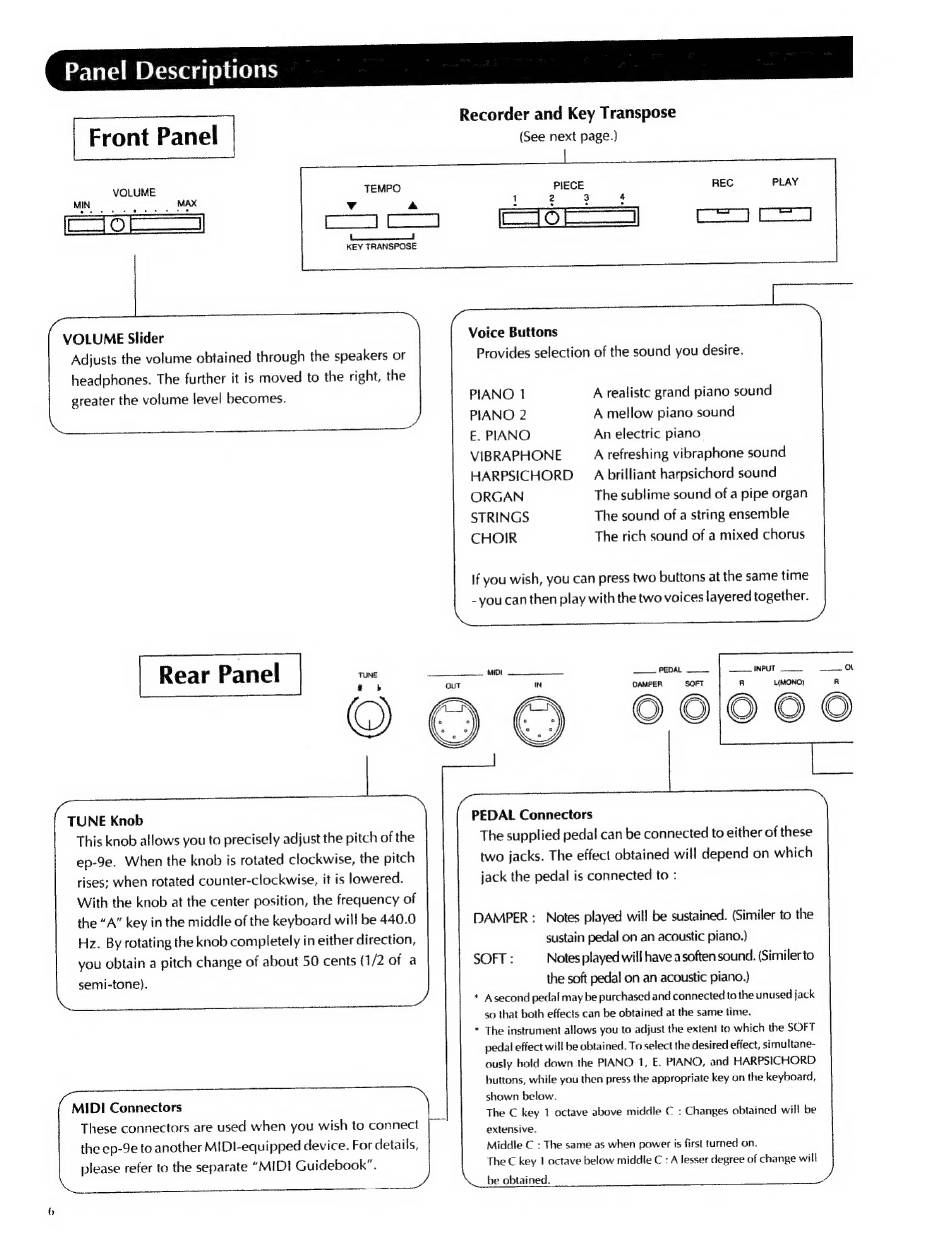

Panel Descriptions
| Front Panel |
Lİ
KEY TRANSPOSE
VOLUME Slider
Adjusts the volume obtained through the speakers or
headphones. The further it is moved to the right, the
greater the volume level becomes.
Rear Panel
|
TUNE Knob
This knob allows you ta precisely adjust the pitch of the
ep-9e. When the knob is rotated clockwise, the pitch
rises; when rotated counter-clockwise, it is lowered.
With the knob at the center position, the frequency of
the "A" key in the middle of the keyboard will be 440.0
Hz. By rotating the knob completely in either direction,
you obtain a pitch change of about 50 cents (1/2 of a
semi-tone).
(See next page.)
Voice Buttons
Provides selection of the sound you desire.
PIANO 1
PIANO 2
A realistc grand piano sound
A mellow piano sound
Ö
L(MONO)
PEDAL Connectors
The supplied pedal can be connected to either of these
two jacks. The effect obtained will depend on which
jack the pedal is connected to :
the soft pedal on an acoustic piano.)
Middle C : The same as when power is first turned on.
be obtained.
