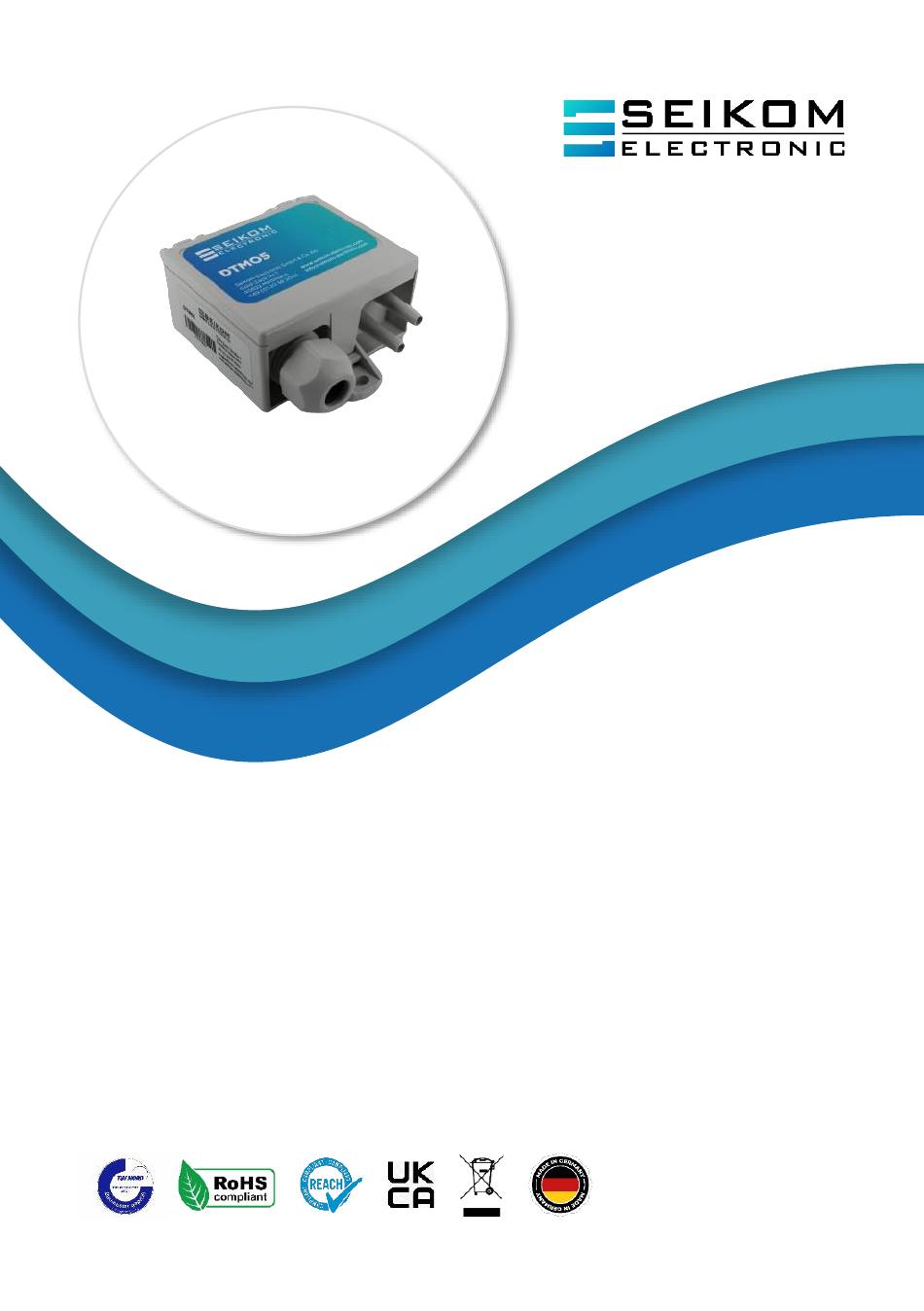

- Page 1 Operating instructions DTM04 / DTM05 24 V AC/DC Version 1...
- Page 2 2. GENERAL INFORMATION ....................3 2.1 Areas of application: ....................... 3 2.2 Operating principle ........................3 3. TECHNICAL DATA ......................4 3.1 Dimensions DTM04/05 ......................5 4. INSTALLATION AND COMMISSIONING ................5 4.1 Assembly ..........................5 4.2 Electrical connections ......................6 4.3 Settings ..........................
- Page 3 Operating instructions DTM04/05 1. SAFETY INSTRUCTIONS Read the product description before using the device. Make sure that the product is fully suitable for your application. Incorrect or improper use can lead to malfunctions of the device or to undesirable effects on your application.
- Page 4 Operating instructions DTM04/05 3. TECHNICAL DATA Type DTM04 DTM05 Article no. 83004 83005 Pressure measurement range 0 ... 5000 Pa 0 ... 2500 Pa Medium Air and non-aggressive gases Operating voltage 16 ... 28 V DC, 24 V AC + 15 %...
- Page 5 Operating instructions DTM04/05 3.1 Dimensions DTM04/05 4. INSTALLATION AND COMMISSIONING Installation and commissioning must be carried out by authorized and qualified personnel. The connection to the main supply (L, N) must be made via a protected circuit breaker with standard fuses.
- Page 6 The pressure range is set on the rotary switch, SW2, and can be set in pressure ranges from -50/+50 Pa to 0-5000 Pa (DTM04) or 0-2500 Pa (DTM05). If the rotary switch is set to values other than the specified positions 0-7, the pressure transmitter records the setting as position 7, corresponding to the highest pressure range.
- Page 7 Operating instructions DTM04/05 4.5 LED display The green LED lights up when the power supply is connected correctly and flashes when the current pressure is above/below the selected measuring range. The yellow LED lights up when the pressure is above 50 Pa and flashes for approx. 3 seconds while zeroing is being carried out.
- Page 8 Growing network of local distributors available online www.seikom-electronic.com Our product portfolio Flow rate Temperature Print Air quality and CO Zener barriers Universal Transmitter +49 2058 2044 info@seikom-electronic.com www.seikom-electronic.com SEIKOM-Electronic GmbH & Co KG Fortunastrasse 20 42489 Wülfrath...
