1

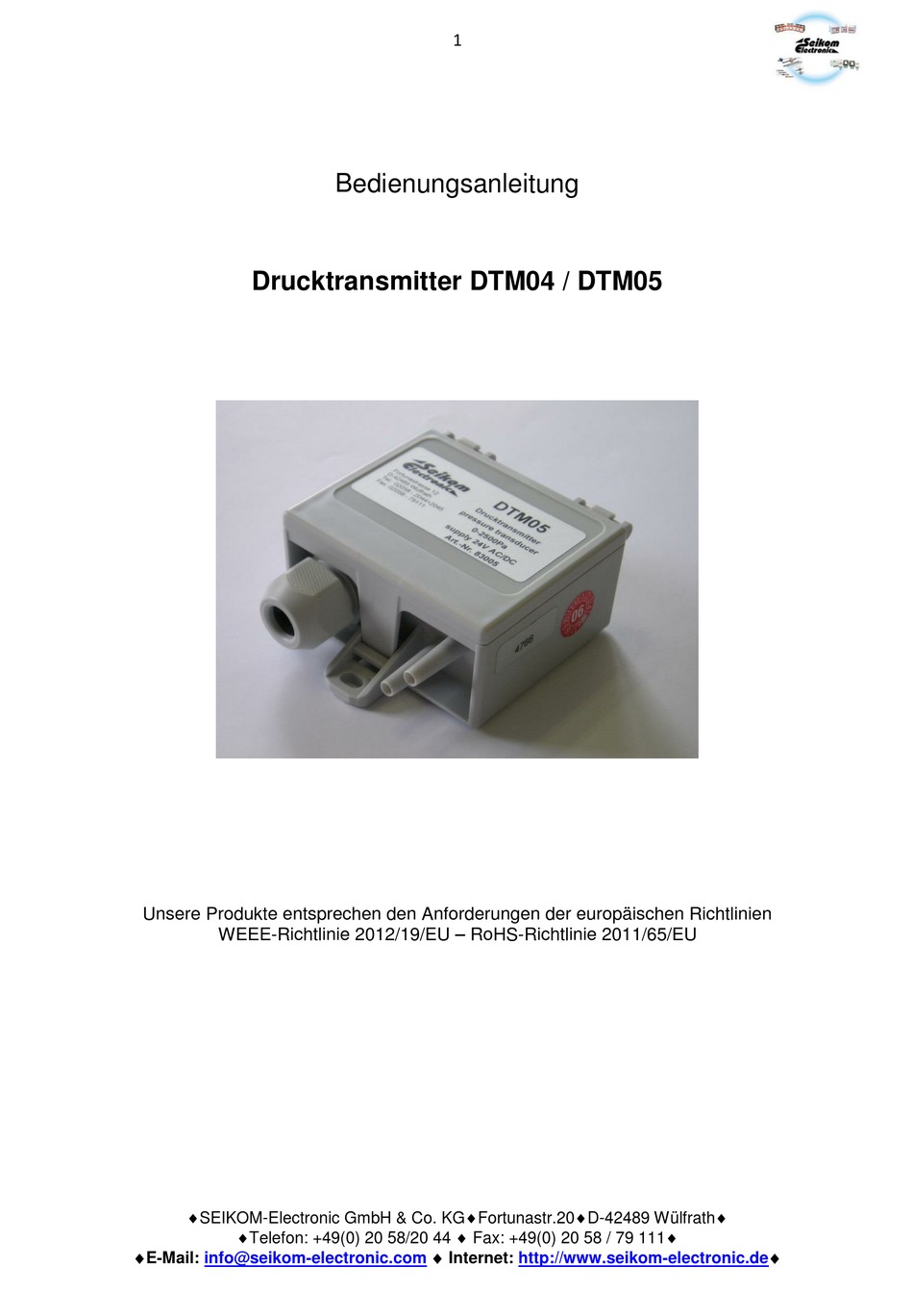

Bedienungsanleitung
Drucktransmitter DTM04 / DTM05
Unsere Produkte entsprechen den Anforderungen der europäischen Richtlinien
WEEE-Richtlinie 2012/19/EU – RoHS-Richtlinie 2011/65/EU
SEIKOM-Electronic GmbH & Co. KGFortunastr.20D-42489 Wülfrath
Telefon: +49(0) 20 58/20 44  Fax: +49(0) 20 58 / 79 111
E-Mail:
 Internet: http://www.seikom-electronic.de
info@seikom-electronic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DTM04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seikom Electronic DTM04

  • Page 1 Bedienungsanleitung Drucktransmitter DTM04 / DTM05 Unsere Produkte entsprechen den Anforderungen der europäischen Richtlinien WEEE-Richtlinie 2012/19/EU – RoHS-Richtlinie 2011/65/EU SEIKOM-Electronic GmbH & Co. KGFortunastr.20D-42489 Wülfrath Telefon: +49(0) 20 58/20 44  Fax: +49(0) 20 58 / 79 111 E-Mail:  Internet: http://www.seikom-electronic.de...
  • Page 2 Druckschwingungen in der Lüftungsanlage im Ausgangssignal des DTM zu unterdrücken. Korrekter Anschluss der Spannungsversorgung wird mit einer grünen Leuchtdiode angezeigt. Liegt der aktuelle Druck außerhalb des gewählten Messbereichs, blinkt die grüne Leuchtdiode. Technische Daten DTM04 DTM05 Artikel-Nr. 83004 83005 Druckbereich max.
  • Page 3 Einstellungen Der Druckbereich wird am Drehschalter, SW2, eingestellt und kann in Druckbereiche von -50/+50 Pa bis 0-5000 Pa (DTM04) oder 0-2500 Pa (DTM05) eingestellt werden. Wird der Drehschalter auf andere Werte als die angegebenen Positionen 0-7 eingestellt, erfasst der Druckmessumformer die Einstellung als Position 7, entsprechend dem jeweils höchsten Druckbereich.
  • Page 4 Leuchtdiodenanzeige Die grüne LED leuchtet bei korrekt angeschlossener Spannungsversorgung und blinkt, wenn der aktuelle Druck über/unter dem gewählten Messbereich liegt. Die gelbe LED leuchtet bei einem Druck über 50 Pa und blinkt ca. 3 Sekunden lang, während das Nullstellen ausgeführt wird. Leuchtdiode Ein Blinken Grün...
  • Page 5 Abblildung 2 Platzierung der PCB-Komponenten Abbildung 3 Elektrisches Anschlussdiagramm SEIKOM-Electronic GmbH & Co. KGFortunastr.20D-42489 Wülfrath Telefon: +49(0) 20 58/20 44  Fax: +49(0) 20 58 / 79 111 E-Mail:  Internet: http://www.seikom-electronic.de info@seikom-electronic.com...
  • Page 6 Tabelle 1 Wahl des Druckbereiches DTM04 DTM05 Pressure range -SW2 Pressure -SW2 range -50…+500 Pa 0=On -50…+50 Pa 0=On 0…+1000 Pa 1=On 0…+100 Pa 1=On 0…+1600 Pa 2=On 0…+150 Pa 2=On 0…+2000 Pa 3=On 0…+300 Pa 3=On 0…+2500 Pa 4=On 0…+500 Pa...
  • Page 7 User manual Pressure transducer DTM04 / DTM05 Our products correspond to the requirements of the European guidelines WEEE 2012/19/EU - RoHS 2011/65/EU SEIKOM-Electronic GmbH & Co. KGFortunastr.20D-42489 Wülfrath Telefon: +49(0) 20 58/20 44  Fax: +49(0) 20 58 / 79 111...
  • Page 8 A green LED indicates that supply voltage has been connected correctly. If the actual pressure is outside the selected measuring range, the green LED flashes. Technical Data Type DTM04 DTM05 Article-No. 83004 83005...
  • Page 9 Pressure range is set by turning the dial, SW2 and can be set to 8 different intervals. The pressure range can be set in intervals ranging from -50/+50 Pa to 0-5000 Pa (DTM04) or 0-2500 Pa (DTM05). If the dial is set to values other than the specified positions (0-7), the pressure transmitter will interpret the setting as position 7 corresponding to the highest pressure range.
  • Page 10 LED indication The green LED is lit when the power supply has been connected correctly and flashes when the actual pressure is above or below the selected measuring range. The yellow LED is lit if pressure exceeds 50 Pa and flashes for approx. 3 seconds during zeroing. Flashing Green Pressure outside set range...
  • Page 11 Figure 2 Transmitter position in relation to bends and branches Figure 3 Wiring diagramm SEIKOM-Electronic GmbH & Co. KGFortunastr.20D-42489 Wülfrath Telefon: +49(0) 20 58/20 44  Fax: +49(0) 20 58 / 79 111 E-Mail:  Internet: http://www.seikom-electronic.de info@seikom-electronic.com...
  • Page 12 Table 1 Selection of pressure range DTM04 DTM05 Pressure range -SW2 Pressure -SW2 range -50…+500 Pa 0=On -50…+50 Pa 0=On 0…+1000 Pa 1=On 0…+100 Pa 1=On 0…+1600 Pa 2=On 0…+150 Pa 2=On 0…+2000 Pa 3=On 0…+300 Pa 3=On 0…+2500 Pa 4=On 0…+500 Pa...
