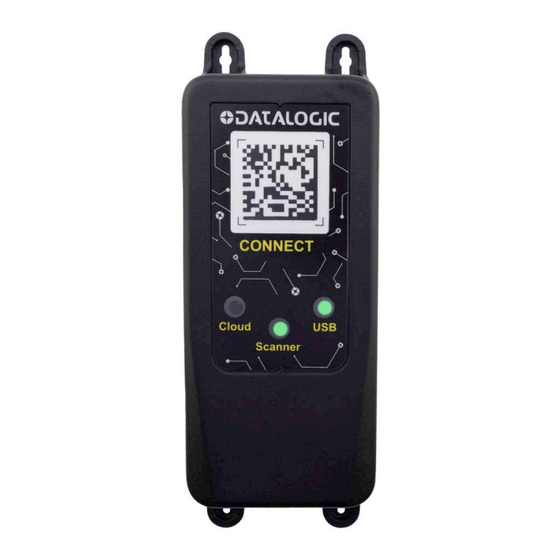

- Page 1 GWU-HS7600 Gateway Connect INSTRUCTION MANUAL Connectivity Device...
- Page 2 All rights reserved. Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A. and/or its affiliates.
-
Page 3: Table Of Contents
TABLE OF CONTENTS END USER SOFTWARE LICENSE AGREEMENT..........IV Software Product Policy ..................VII Using the GWU-HS7600 Gateway ..............1 Installation ....................3 Package Contents..................3 Mounting Instructions.................. 4 Permanent Mounting ................... 4 System Connections ..................6 Recommended Cables ....................7 Disconnecting the USB Cable and Resetting the Gateway........ -
Page 4: End User Software License Agreement
2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the rele- vant contract for the purchase of the Datalogic Product. 3. Termination Without prejudice to any other rights or remedies Datalogic may have, Datalogic may terminate this Agreement if End User fails to comply with the terms and conditions of this Agreement. - Page 5 PRICE OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT. UNDER NO CIRCUMSTANCES SHALL DATALOGIC OR ITS LICENSORS BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROF- ITS, LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSE-...
- Page 6 U.S. federal agency has suspended, revoked or denied its export privileges. 9. Third Party Software The Datalogic Product may contain one or more items of third party software which use is governed by separate third party license, unless otherwise stated.
-
Page 7: Software Product Policy
Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discre- tion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. - Page 8 EULA NOTES VIII GWU-HS7600 GATEWAY...
-
Page 9: Using The Gwu-Hs7600 Gateway
Wi-Fi to send data to a cloud. • The Wi-Fi capabilities of the gateway can be also exploited by Powerscan PBT9600. The label on the gateway has LED indicators that signal the GWU-HS7600 sta- tus, as explained in the table below: Table 1. LED indicators LED2... - Page 10 Using the GWU-HS7600 Gateway LED2 STATUS LED1 (USB) LED3 (CLOUD) (SCANNER) Blinking GREEN Reader disabled by (100ms ON - 900ms host OFF) Blinking GREEN Blinking GREEN Host download/ Firmware upgrade (250ms ON - 250ms (250ms ON - 250ms (upload and store)
-
Page 11: Installation
To set up your GWU-HS700 Gateway you must: 1. Physically install it. 2. Make all system connections. 3. Configure it. PACKAGE CONTENTS The Gateway package contains the following items: GWU-HS7600 Gateway Connect • Wall/desk mounting kit including screws and hook and loop tape • QUICK REFERENCE GUIDE... -
Page 12: Mounting Instructions
For either desktop or wall mounting, the gateway can be fastened directly to a flat surface using screws or fixing the hook and loop tape included with the product. NOTE: For vertical installation, do not exceed two meters in height. Figure 1 - Screw position Screw Position Screw Position GWU-HS7600 GATEWAY... - Page 13 Permanent Mounting Figure 2 - Hook and Loop Tape Hook and Loop Tape QUICK REFERENCE GUIDE...
-
Page 14: System Connections
System Connections SYSTEM CONNECTIONS The connection of the GWU-HS7600 Gateway can be done either via USB or Wi-Fi interface. When using a USB connection, a USB host is needed to power and communi- cate with the Gateway. Figure 3. Connection via USB... -
Page 15: Recommended Cables
System Connections Recommended Cables CABLE PART NUMBER USB Cable 90A052258 External power supply 94ACC0196 + 90A052258 Disconnecting the USB Cable and Resetting the Gateway To remove the USB cable, first locate the hole on the back of the gateway. Next, either use the hook provided in the mounting kit or take a paper clip and modify it as shown in the figure below. -
Page 16: Find-Me And Firmware Updates
2. Use a modified clip to press the button shown in the picture while re-con- necting the USB cable (as shown in Figure It is also possible to update the devices connected to the Gateway by choos- ing the specific firmware. GWU-HS7600 GATEWAY... - Page 17 System Connections NOTE: Don’t link new devices and don’t unlink the connected devices during the update. Figure 7. Firmware Update QUICK REFERENCE GUIDE...
-
Page 18: Configuration
RS232/USB-COM or Ethernet interface. It also allows upgrading the software of the connected device (see the Datalogic Aladdin™ Help On-Line for more details). Configuration Bar Codes Link the gateway and the reader by simply reading the barcode printed on top of the gateway (connection label). -
Page 19: Gwu-Hs7600 Cloud Setup
GWU-HS7600 Cloud Setup GWU-HS7600 CLOUD SETUP Access Point Configuration The GWU-HS7600 operates as Wi-Fi station IEEE 802.11b/g/n 2.4 GHz and supports the following secure connections: WPA2/WPA3 Personal • WPA2 Enterprise PEAP, TLS and TTLS • The following sections describe how to set up a Wi-Fi connection using the Datalogic Aladdin software configurator. - Page 20 GWU-HS7600 Cloud Setup Figure 9. Aladdin Force Connection Figure 10. Aladdin Force Connection Figure 11. Aladdin Force Connection GWU-HS7600 GATEWAY...
-
Page 21: Wi-Fi Interface Enable With A Codiscan
GWU-HS7600 Cloud Setup Wi-Fi Interface Enable with a CODiScan If a CODiScan scanner is linked to the GWU-HS7600, to enable the Wi-Fi inter- face scan the barcode below. Wi-Fi Interface Enable Access Point Configuration Assuming the GWU-HS7600 has the Wi-Fi interface already enabled and con-... -
Page 22: Service Configuration
Figure 13. Access Point Configuration Service Configuration The GWU-HS7600 can be configured as a WebSocket client or a MQTT client. To configure the proper service, configure the Service Type then open the related sub-menu to enter the proper service configuration (). It is also possi- ble to configure up to 3 NTP servers in section SNTP. -
Page 23: Technical Specifications
Technical Specifications TECHNICAL SPECIFICATIONS The following table contains Physical and Performance Characteristics, User Environment and Regulatory information. PHYSICAL CHARACTERISTICS Color Black Height: 3 cm (1.18'') Length: 13.5 cm (5.31'') Dimensions Width: 5 cm (1.96'') Weight: 80g (2.82 oz) ELECTRICAL CHARACTERISTICS Supply Voltage 5VDC +/-5% Power Consumption... - Page 24 Technical Specifications api_version: <string> client_serial: <string> Available JSON tags encoding: <string> (is the encoding of the scan_code content, fixed to base64 string) scan_code: <string> GWU-HS7600 GATEWAY...
-
Page 25: Technical Support
Technical Support TECHNICAL SUPPORT Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to (www.datalogic.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for. -
Page 26: Warranty
The Warranty Period shall be one year from the date of shipment by Datalogic, unless otherwise agreed in an applicable writing by Datalogic. Datalogic will not be liable under the warranty if the Product has been exposed or subjected to any: (1) maintenance, repair, installation, handling, packaging, transportation, storage, operation or use that is improper or otherwise not in compliance with Datalogic’s instruction;... - Page 28 ©2024 Datalogic S.p.A. and /or its affiliates. • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A.
