Owner's Manual

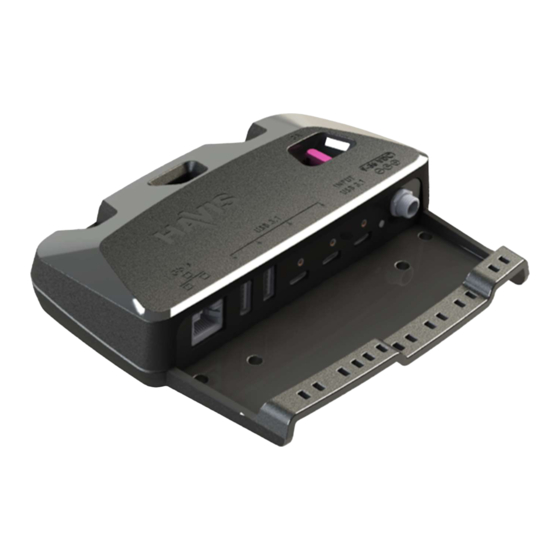

Havis Rugged USB Hub
DS-DA-604

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-DA-604 and is the answer not in the manual?

Questions and answers

Related Manuals for Havis DS-DA-604

Summary of Contents for Havis DS-DA-604

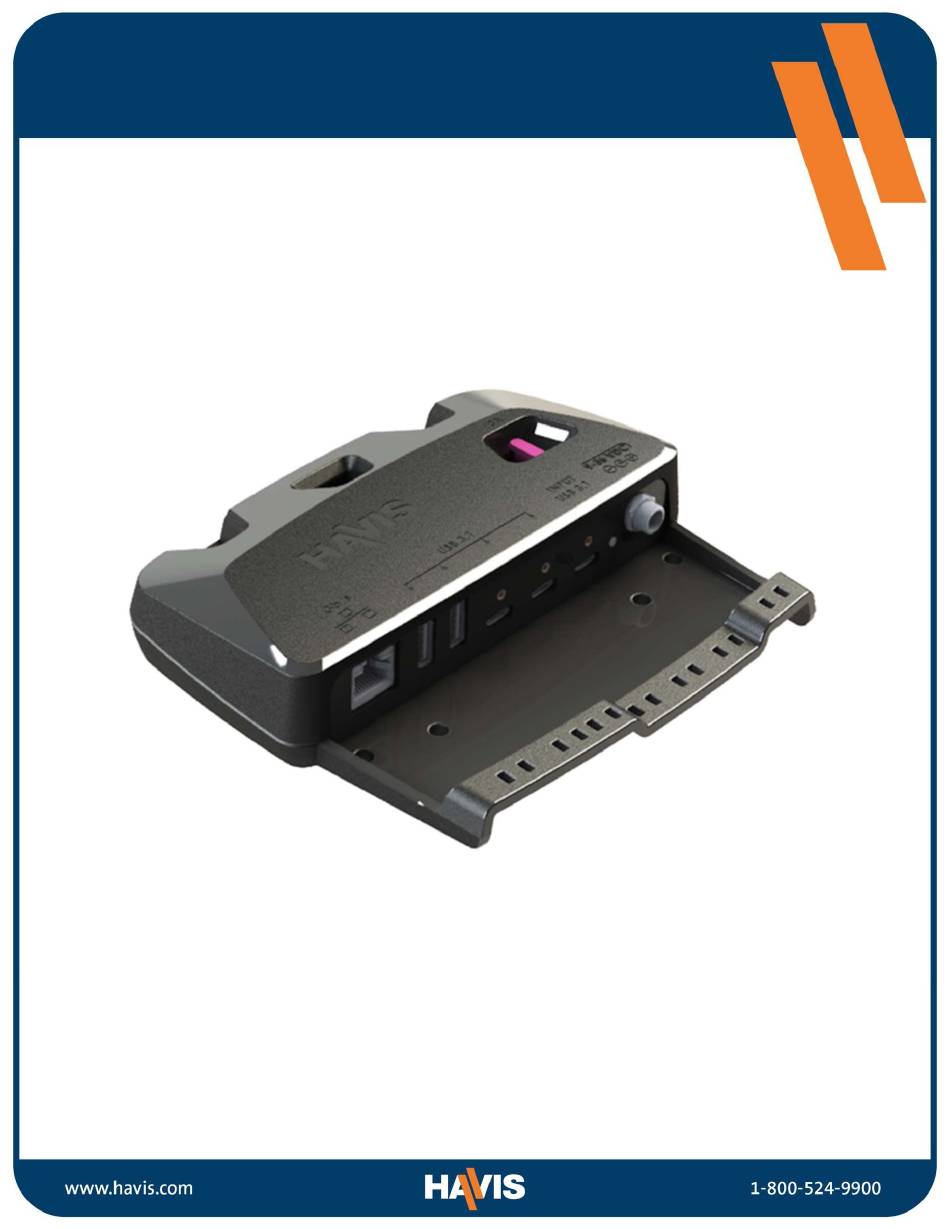

  • Page 1 Owner’s Manual Havis Rugged USB Hub DS-DA-604...

  • Page 2: Before Beginning

    Before Beginning Havis is pleased to provide this owner’s manual to aid in the proper installation and use of the DS-DA-604 Rugged USB Hub. For questions regarding the set-up of your rugged USB hub, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

  • Page 3: Parts Included

    USB-C to USB-C cable with a screw lock on one end. Length is 6.5 ft. 3. Power Cable (DS-DA-345) Power cable unique to the DS-DA-604 USB hub. Length is 6 ft. 4. Hardware Kit This hardware kit includes: a. M4 x 16 pan head screws (5) b.

  • Page 4: Specifications

    Gen 1 Gen 1 Gen 1 Output Output Input • Network adapters require a driver. Havis drivers can be accessed at https://www.havis.com/support/. • USB-C ports do not support Alternate Mode or USB power delivery (PD). • RJ45 Ethernet port supports WOL.

  • Page 5: Led Diagnostics

    Dimensions 5.65” 14.35 cm 4.91 ” 12.47 cm 1.25” 3.18 cm LED Diagnostics Ethernet Power Indicators Indicator Color Status Green Link activity Ethernet Indicator Amber Receive activity Power Indicator Green Hub is powered on...
  • Page 6 Installation and Cable Management 1) Identify which of the mounting configurations shown below is required. 2.95” 75mm 2.5” 63.5mm 2.95” 75mm 4.5” 114.3mm Option A Option B VESA 75 4-Hole Pattern 3-Hole Pattern 2) Using the hardware kit, secure USB hub to the mounting surface as per the chosen mounting configuration.
  • Page 7 Installation and Cable Management (Continued) 3) Plug the included power cable into the 9-36 VDC power port. Hand tighten the coupling ring. Do not overtighten or damage may occur. 9-36 VDC Power Port Power Cable 4) Plug the included USB-C cable into the “INPUT USB 3.1” port. Make sure to use the cable end with a screw lock.
  • Page 8 Installation and Cable Management (Continued) 5) Connect all other desired cables between peripheral devices and the rugged hub. 5) Use zip ties from the hardware kit to tie down and strain relieve cables. Cable strain relieved by zip tie...

  • Page 9: Related Products

    Related Products Havis offers a wide variety of accessory products specifically for use with your USB hub. For more information or to order, please visit www.havis.com. DS-DA-344 USB-C Cable USB-C to USB-C cable with a screw lock on one end. Length is 6.5 ft.
