Installation Manual for
Aluminum Triangle Brackets Solar mounting system

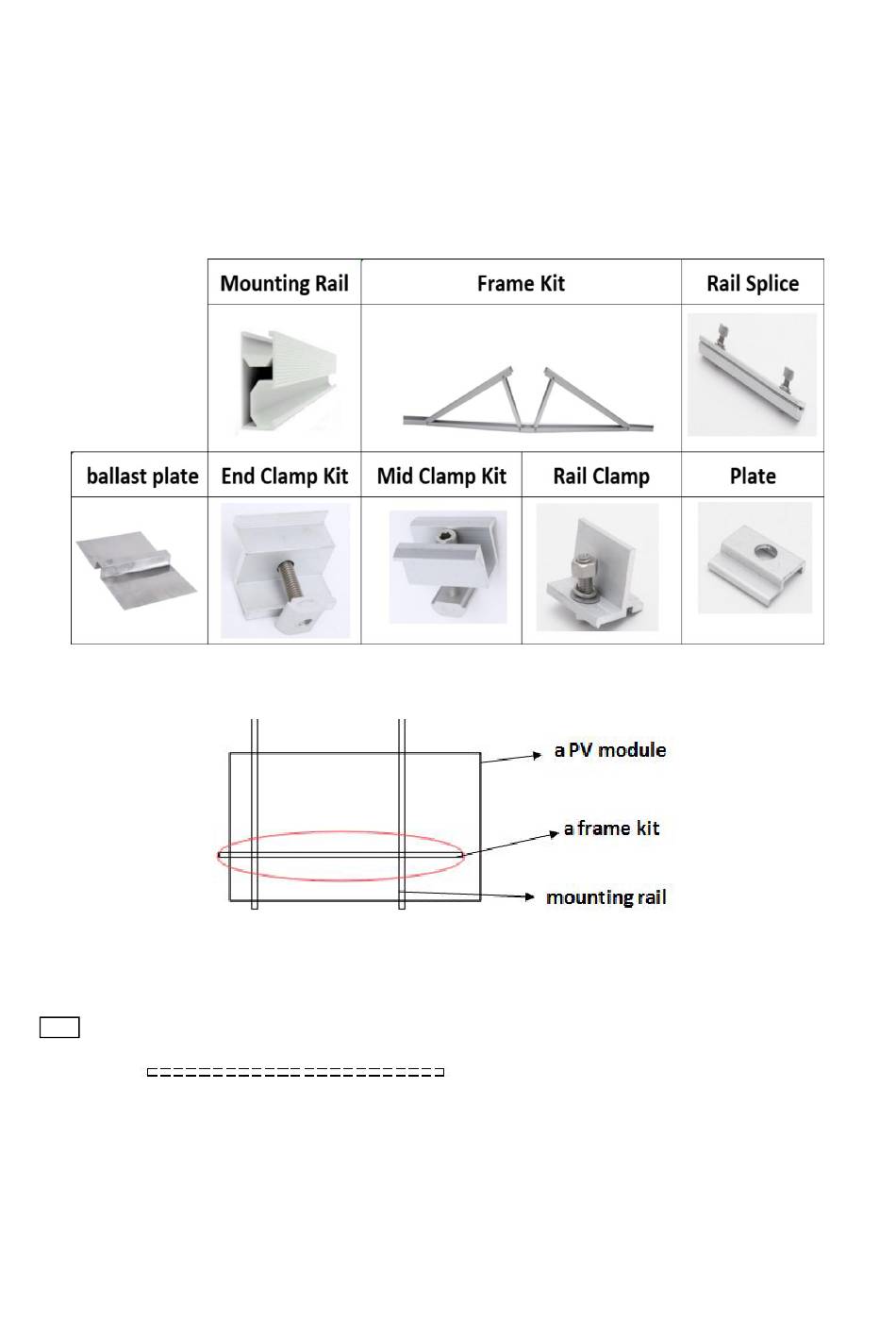

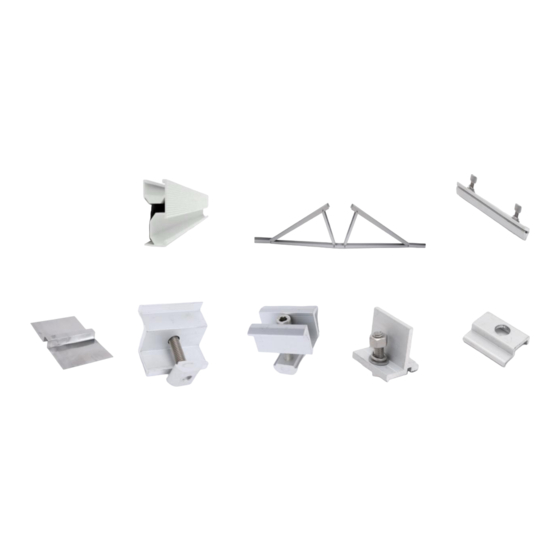

Step1: we must know the Components List.
Step2: Check drawing (include array layout and the section drawing):
A line under the PV module, represent a frame kit.
A
represent a PV module.
A line like this
, represent a mounting rail.
Please read and understand the drawings. We can learn the following information.
How many frame kits in a row at the each array.
How long is it between 2 frame kits.
How long is per rail at the each array.
1
Advertisement
Table of Contents
Related Manuals for BlueSun YK22-SY11122Y
Summary of Contents for BlueSun YK22-SY11122Y
- Page 1 YK22-SY11122Y-瑞典-itemA&B Installation Manual for Aluminum Triangle Brackets Solar mounting system Step1: we must know the Components List. Step2: Check drawing (include array layout and the section drawing): A line under the PV module, represent a frame kit. represent a PV module.
- Page 2 Then we will give you how many rails in a row as follows. Array Total length Comprise 2000mm 2000mm 3800mm 2100mm+1700mm 5700mm 2100mmX2+1500mm 7500mm 2100mmX3+1200mm 11200mm 2100mmX4+1400mmX2 13000mm 2100mmX5+1100mm+1400mm 14800mm 2100mmX6+2200mm 16600mm 2100mmX7+1900mm 10*2 18500mm 2100mmX8+1700mm 11*2 20300mm 2100mmX9+1400mm 22*2 40500mm 2100X18+1600mm+1100mm 24*2...
- Page 3 Step 5: Use M8* 60 inner-hexagonal socket bolt to make sure the frame kit steadily. Align the upper hole of the angle adjustment tube with the threaded hole of the inclined beam. Tighten the M8*60 inner-hexagonal socket bolt securely. Ensure that all the A frame kits are aligned. Ensure the correct spacing of each A frame kit in accordance with design specifications.
- Page 4 Make sure all parts fixed steady. End. We are very appreciated that you can choose our products, and anything confused, please let us know without hesitate.
