SG600 Series
Basic Structure
DC Input Ⅰ
To PV Module
AC Bus Cable
To previous inverter
Dimensions
1 / 6
Mounting Holes
Status Indicator
Sticker of unique ID
and basic parameters

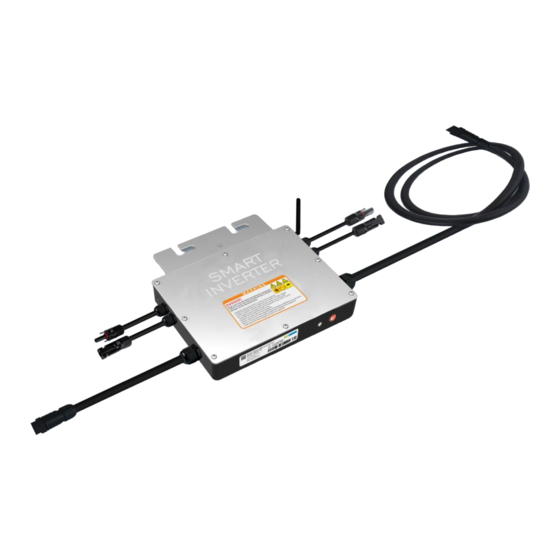

PV Smart Microinverter
SG600 Series
Single unit connects up to two PV modules
Maximum 600W AC output power
Single-phase output, Flexible 3-phase PV systems
WIFI communication and cloud monitoring
Up to 8 units (230V) per branch
Customizable various input (DC, PV) voltage range
Integrated AC bus cable, Ready-To-Use
Low cost, Easy installation
WIFI Antenna
WIFI Set/Reset
Button
WIFI Status
Indicator
DC Input Ⅱ
To PV Module
AC Bus Cable ,To next
inverter / the Grid
Unit: mm
Advertisement
Related Manuals for BlueSun SG600 Series
Summary of Contents for BlueSun SG600 Series
- Page 1 BLUESUNSOLAR SG600 Series PV Smart Microinverter SG600 Series Single unit connects up to two PV modules Maximum 600W AC output power Single-phase output, Flexible 3-phase PV systems WIFI communication and cloud monitoring Up to 8 units (230V) per branch ...
- Page 2 SG600 Series PV Smart Microinverter - Parameter Table Product Series SG600 Series SG600MD Model (Regular) Input Data(DC,PV) Number of Input MC4 Connector 2 set MPPT Voltage Range 28V-55V Operation Voltage Range 20V-60V Maximum Input Voltage Startup Voltage Maximum Input Power...
-
Page 3: Installation Schematic
Installation Schematic SG600 Series Microinverter Single-Phase 120V Single-Phase 120V Grid 1. SG600 Series @Single-Phase 120V grid, Maximum units SG600 Microinverters per branch. 2. The max DC input power of each inverter is 600W (the PV module max output power is 2*300W). -
Page 4: Wiring Schematic
Wiring Schematic SG600 Series Microinverter Single-Phase 230V SG600 Series Microinverter Single-Phase 120V V: 2.0_2022_02_22 4 / 6... - Page 5 SG600 Series Microinverter 2-Phase 208/240V(Single-Phase 120V) SG600 Series Microinverter 3-Phase 380V(Single-Phase 230V) V: 2.0_2022_02_22 5 / 6...
- Page 6 SG600 Series Microinverter 3-Phase 208/240V(Single-Phase 120V)Ⅰ SG600 Series Microinverter 3-Phase 208/240V(Single-Phase 120V)Ⅱ Offizielle Website: https://de.bluesunsolar.net/ 6 / 6 Kundendienst-E-Mail: info@bluesunsolar.net...
- Page 8 S o l a r S m a r t M i c r o I n v e r t e r ★ Q&A WIFI Cloud Monitoring User Manual WIFI 1. HOW TO DO when "Smart Life" App can't find the micro inverter to be added? A: Please check the following points.
- Page 9 Configuration Steps Of WIFI Cloud Monitoring Usage Of WIFI Cloud Monitoring App Figure7 Figure8 Step1 Modify Device Name 1. Click the device to be modified in the device list on First the home page to enter the device information Configuration details page (Figure 5).
- Page 10 Scannen Sie den QR-Code, um die WIFI-APP herunterzuladen...
