albinus Compact 12V Manual

RV instructions for Silent Electric toilets and Design Silent Electric toilets with Control Panel Rocker
Switch (07-66-025) and RV instructions for Silent Premium toilets with Digital Control Panel (07-66-024).
• Silent operation and low water consumption
• Seperated flushing and waste disposal cycle
• Rocker switch control panel (Silent Electric and Design) with1 single
function button and 1 dual function button or Electronic control panel
with 3 separate buttons (Premium)
• High performance discharge pump
General RV Installation
Install your Albinus toilet on a flat surface. You may employ the use of a separate flush pump or an existing pressurized system (2.5 – 3.5 bar) for flushing. A
macerator discharge pump is incorporated into the toilet. For flushing you will need a flush pump (Albinus part no. 07-66-032 (12 V), 07-66-033 (24 V)), or if
using a pressurized central system you will need a solenoid valve (Albinus part no. 07-66-030 (12 V), 07-66-031 (24 V), or Albinus part no. 07-66-035 (12 V)).
Holding tank Pump-out fitting
Follow your country's recommended standard.
Pipework: general instructions
Inlet: 19 mm (3/4") hose connection.
Discharge: 25 mm (1") or 38 mm (11/2") hose
• Spiral reinforced smooth bore flexible hose for both the 19 mm (3/4")
internal diameter inlet and the 25 mm (1") or 38 mm (1 1/2") internal
diameter outlet hose
• Stainless steel hose clips for the hoses
• Secure the hose runs so that the hoses cannot move, nor exert any
leverage action on the hose tail fittings to which they are connected, as
this may cause adjacent joints to leak
Pipework:
Inlet: 19 mm (3/4") hose
• Run the inlet hose by the most direct route from the fresh water holding
tank to the flush pump and then to the flushing pump inlet connection;
or, the most direct way from the pressuized water pipe in a centralized
system.
• For convenience of use, when the freshwater holding tank is situated
below the flush pump, install an in-line non-return valve between the
fresh water holding tank and the flush pump, which will ensure that the
pump stays primed in between usages.
Mounting
Before starting the assembly, read the complete mounting instruction first. You nee d the following:
• Stainless steel bolts: 3 pcs, 8 mm (⁵⁄₁₆ ") diameter of length to suit the thickness of the mounting surface.
• Stainless steel nuts: 3 pcs preferably self-locking. If you do not use self-locking nuts you need to add locking compound on the screws-/ nuts.
• Stainless steel washers: 3 pcs.
• Drill: Diameter 9 mm (approx. 0.35")
• Silicone sealant, white.
• If you do not use self-locking nuts, you will need some nutlocking compound.

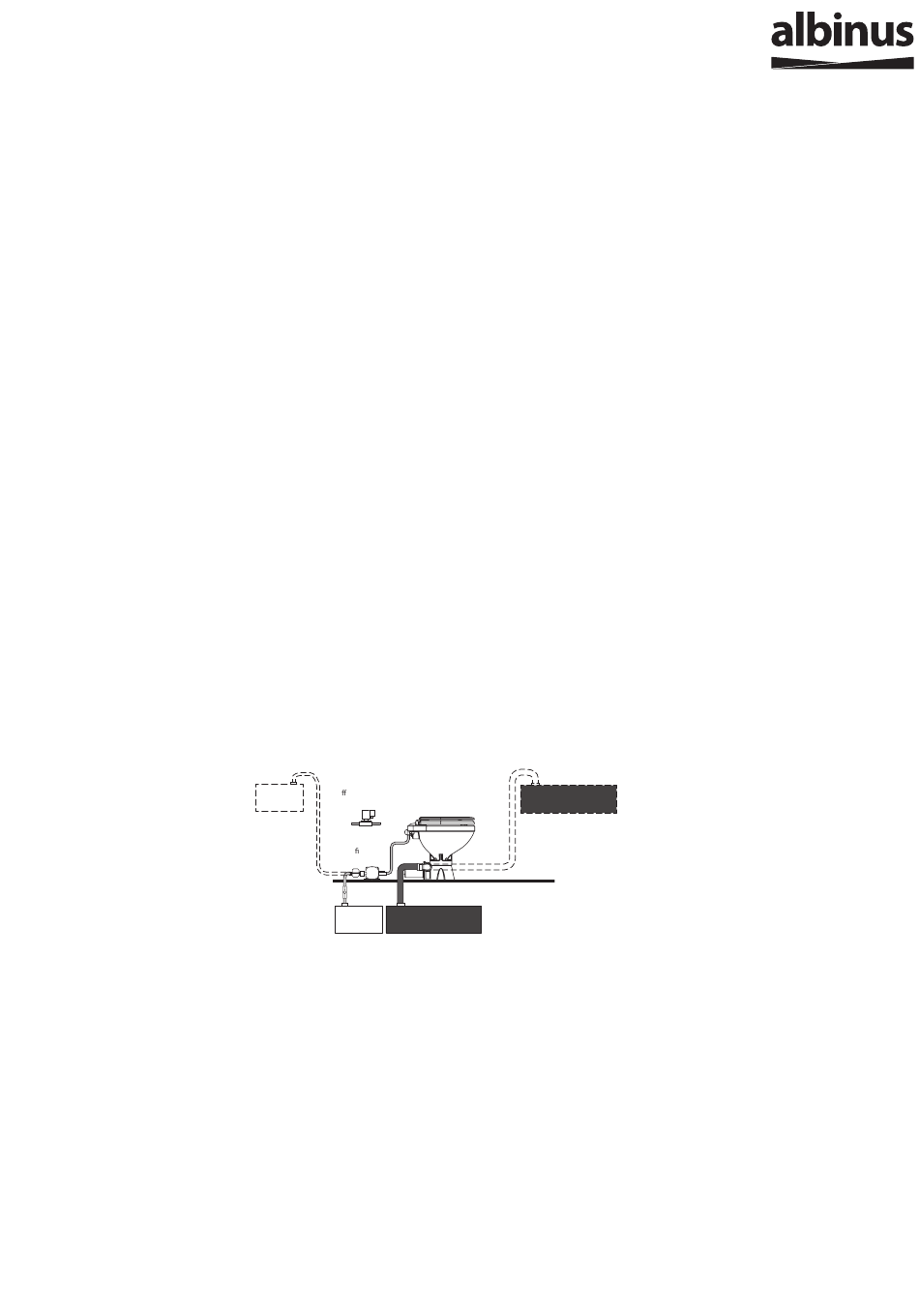

Solenoid valve
o of pressurized line
(not included)
Fresh water
holding tank
Flush pump
with lter
(not included)
non-return
valve
Fresh water
holding tank
• Complete toilet & conversion kit are interchangeable with Jabsco,
Johnson and TMC
• Spray nozzle elbow for efficient flushing
• All corrosion resistant material
• Rinse/flush with separate flush pump or existing pressurized system via
solenoid valve – neither of which are included
• Avoid sharp bends in the hoses since this might cause them to become
kinked
• Keep all pipework lengths as short as possible while you are carrying out
these operations. Unnecessary inlet or outlet hose lengths just make the
toilet harder to pump.
Discharge: 25 mm (1") or 38 mm (1½") hose
• Run the discharge hose to the black water holdingtank.
Black water
holding tank
Black water
holding tank
