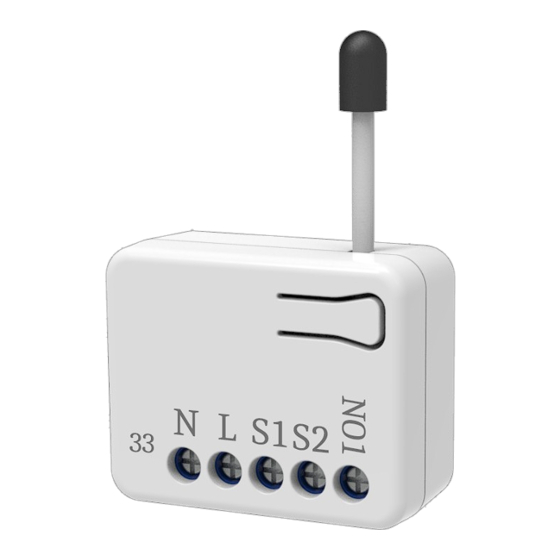

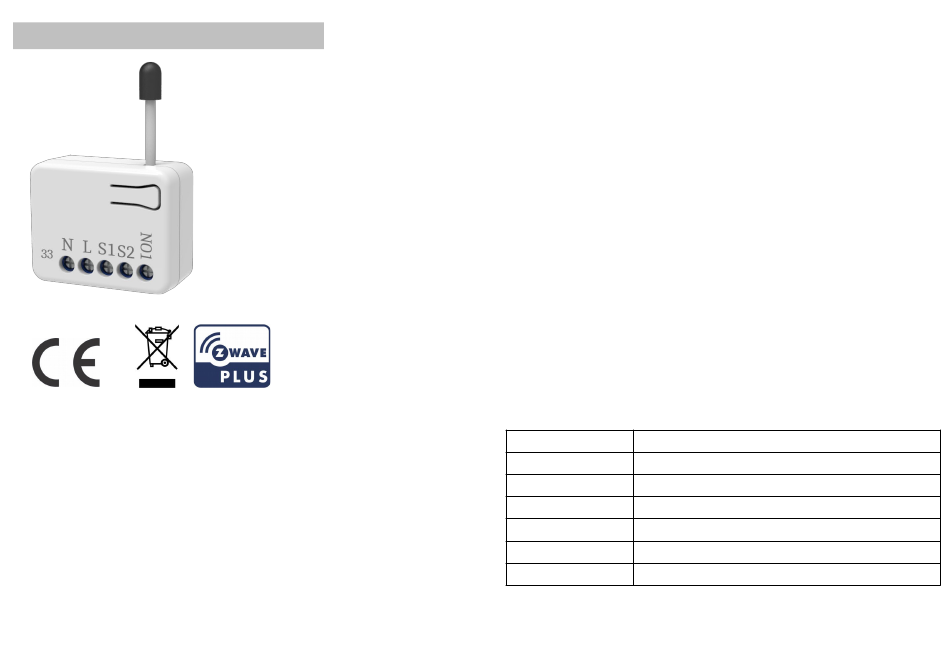

In Wall switch (Mini) PAN33
Introduction
This product can be operated in any Z-Wave
from other manufacturers. All mains operated nodes within the network will act as repeaters
regardless of vendor to increase reliability of the network. Mini size design let the module
can easily hide itself into the wall box and that will be good for the house decoration.
There are many kind of application by using the module to switch Load On and Off, one main
application is the light control. If connect the com port directly to AC Line terminal, the new
smart relay calibration technology can reduce the inrush current caused by the load and let
TM network with other Z-Wave TM certified devices
the module work perfectly with many kind of light like incandescent, fluorescent and LED
light.
Safety Precautions and Installation
 Avoid installing the unit in storming or raining weather.
 Be sure to isolate or switch off power source before installing or maintenance.
 Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
 Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
 Check your local codes as they apply to your situation. If the house wiring is
of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
Specification
Operating Voltage 100 -240VAC 50Hz-60Hz
Maximum Load Max. 6.5A x2 Channels (230Vac/120Vac) (Resistive load)
Range Minimum 40 m in door 100m outdoor line of sight
Operating Temperature 0°C - 40°C
Humidity Up to 85% max.
Storage Temperature -20°C to 60°C
Location Indoor use only
