ZWaveProducts ZW500D Installation Instructions

INSTALLATION INSTRUCTIONS
Wireless Home Automation Control Device

SPECIFICATIONS

Voltage............................................................................................ 120VAC, 60Hz
Incandescent..................................................................................................500W
Z-Wave Frequency.............................................................................. 908.42 MHz
Operating Temperature........................................................................... 32-104° F
Range............................................................................Up to 100 feet line of sight
between the Wireless Controller and the closest Z-Wave receiver module.

FEATURES

Perfect Replacement for regular wall ON/OFF & Dim switch, 120VAC
Wireless Z-Wave technology creates a mesh network for command and
control interoperability with other Z-Wave compliant controller and devices
Manual and Remote ON/OFF& Dim control of any permanently installed
incandescent, dimmable LED and CFL lamp fixture
Preset light level option allows the dimmer will turn on to the light level that
it was adjusted to the previous time when the light was on
Can be used for signal pole or 3- Way (Multi-location) with ZW3K Auxiliary
Switch (sold separately)
Air-Gap Switch feature meets UL requirement and disconnect power from
load locally

DESCRIPTION

The ZW500D Dimmer Switch is a perfect wireless manual and remote on/off/dim/
bright control replacement of regular on/off and dimmer switch, controlling
incandescent, dimmable LED and CFL. This ZW500D dimmer switch is fully
compatible with other Z-Wave devices, provides programmable function creating
a perfect ambiance such as scenes, association, schedule event, etc. Also it can
be added to most Z-Wave compliant controllers. Sliding Air-Gap switch to a totally
disconnect power while replacing light bulbs and preventing from leakage current
from the fixture(s). This ZW500D dimmer works with ZW3K 3-Way Auxiliary Switch
that reducing energy consumption, enhancing the value of technology of your home,
condominiums and apartment.

WARNINGS AND CAUTIONS

To be installed and/or used in accordance with appropriate electrical codes
and regulations. Exercise extreme caution when using Z-Wave devices to
-01-
ZW500D
control appliances. Operation of the Z-Wave device may be in a different
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operation could
Dimmer Switch
possibly result in a hazardous condition.
Z-Wave enabled devices should never be used to supply power to, or
control the On/Off status of medical and/or life support equipment.
If you are unsure or uncomfortable about performing the installation,
please consult a qualified electrician.

INSTALLATION

This ZW500D dimmer switch may be used in new installations or replace an existing
wall switch.

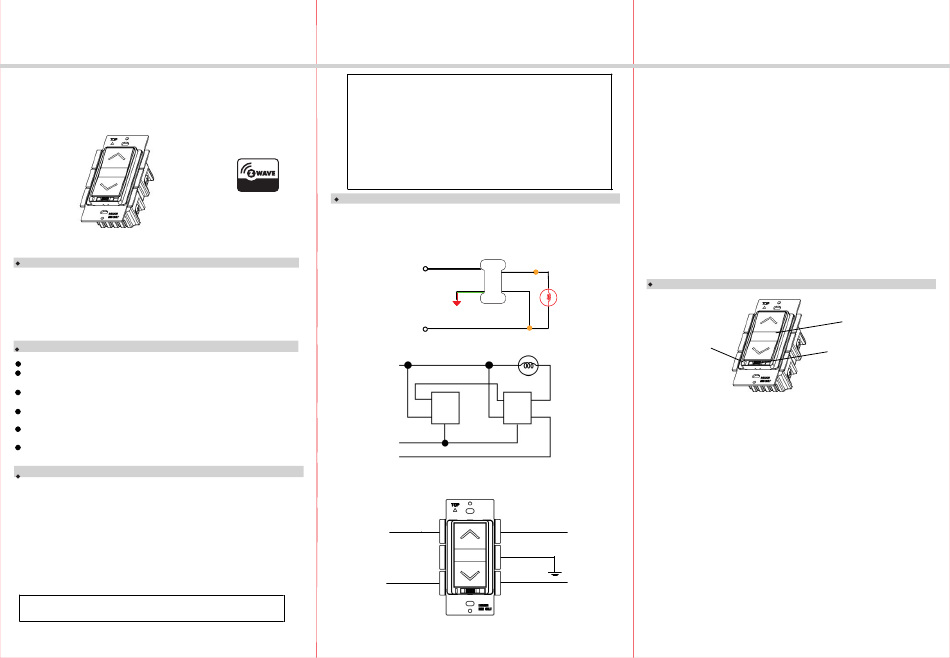

Typical Dimmer Wiring Schematic:
3-Way Wiring Schematic using one ZW500D and one ZW3K
Traveler works with ZW3K for 3-way control, ZW3K sold separated.
Wiring Diagram:
Black Red
Green
120 VAC
60 Hz
Light
White
White (Neutral)
Red
Traveler(Yellow)
(Load)
Z-Wave
Z-Wave
ZW3K
ZW500D
Green (Ground)
Black (Hot)
Yellow Red
Traveler
Load (to light fixture)
Green
Ground
White Black
Hot (from breaker)
Neutral
-02-
1.WARNING : To avoid fire, shock, or death. Turn off power at circuit breaker
or fuse and test that power is off before wiring.
2. Remove wall plate and existing switch mounting screws.
3. Carefully remove the existing switch from the switch box.
4. Disconnect the wiring from the existing switch.
5. Connect the Z-Wave dimmer switch as shown in the wiring diagram: Black
lead to hot wire, white lead to neutral wire, red lead to load wire, green lead to
ground wire.
6. Check connections to be sure they are tight and no bare conductors are exposed.
7. Insert the ZW500D dimmer switch into the outlet box carefully.
8. Make sure the ZW500D dimmer switch to the box using the supplied screws
9. Attach the wall plate
10. Restore power at the circuit breaker and test the system.
Air Gap Switch
During normal operation, there is a small amount of power passing through the switch
to the load even when the dimmer switch is turned off. The ZW500D has an air gap
switch on the lower right side to completely disconnect power to the load. Slide the
air gap switch to left to disconnect the power while replacing light bulbs and slide it
to right for normal operation. The air gap switch must be all the way in for the dimmer
to function and control the lighting.

OPERATIONS

LED light

Basic Operation

The connected light can be turned ON in two ways:
1. With a remote.
2. Manually flick the switch paddle on the Z-Wave dimmer.

Remote Control

Z-Wave remotes provide control of an Individual device, Groups of devices and
Scenes. Please refer to your remote control's instructions for details on its
capabilities and instructions for adding and controlling devices.

Manual Control

The ZW500D dimmer switch allows the user to:
1.Turn ON/OFF and control the brightness level of the connected lighting.
-To turn the connected lighting ON: Tap the top of the dimmer switch paddle.
-To turn the connected lighting OFF: Tap the bottom of the dimmer switch paddle.
-To brighten the connected lighting: Press and hold the top of the dimmer switch
paddle, release when desired level is achieved.
-To dim the connected lighting: Press and hold the bottom of the dimmer switch
paddle, release when desired level is achieved.
-03-
Dimmer Switch Paddle
Air Gap Switch
