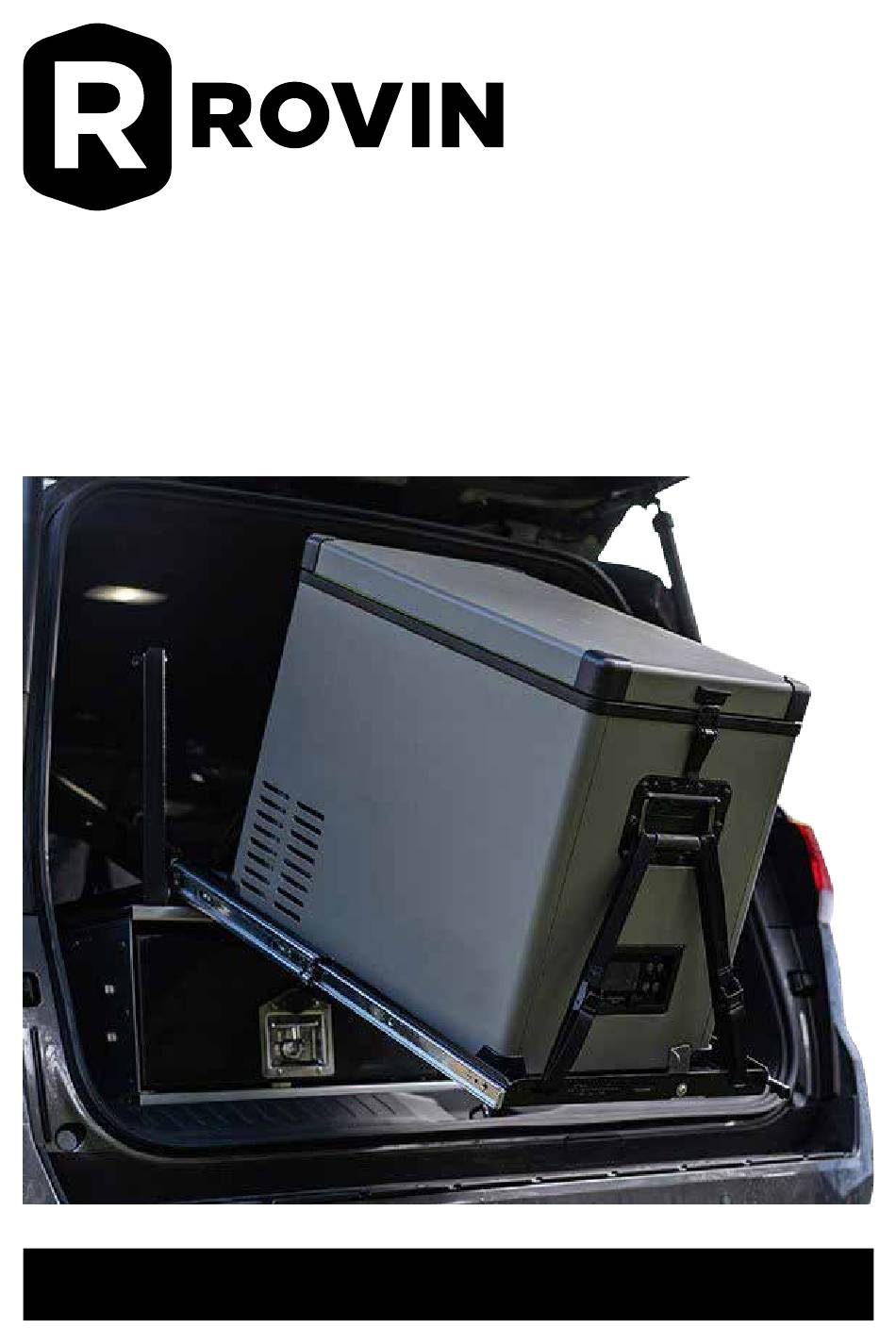

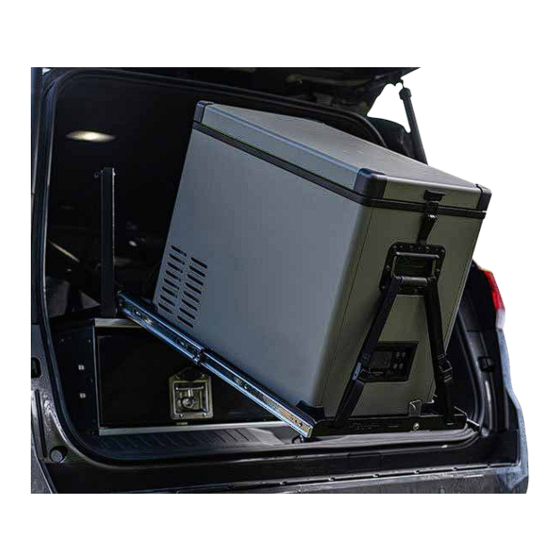

- Page 1 GH1594/1596 Fridge Slide INSTRUCTION MANUAL...
- Page 2 CONTENTS Box Contents ...................... 3 Before First Use....................3 Preparing For The Fridge Slide Install ............4 Tie Down the Fridge ..................5 Important Notes ....................5 Cleaning, Care, Storage & Maintenance ..........6 Warranty Information ..................6...
- Page 3 BOX CONTENTS 1x Fridge Slide Mounting Kit Tie Down Kit 6 x M6 washers 4 x nylon straps 6 x M6 tee nuts 6 x M6 x 20mm bolts BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly.
- Page 4 PREPARING FOR THE FRIDGE SLIDE INSTALL Description Description Main frame L585mm gas struts Left gas struts frame M6x12 screw Right gas struts frame M6 nylon nut Rear cross rib M6x20mm screw M8x25 Pan head socket Tee nut M8x19 Nylon washer M6 washer M8 Nylon nut Install gas struts...
- Page 5 Step 2: Lift the body frame up to install the rear cross rib by using M6x12 bolts. Step 3: SUsing the M6x20mm screws/M6 washers and tee nuts to install slide into vehicle.
- Page 7 TIE DOWN THE FRIDGE Secure your fridge on the slide by using the 4 nylon straps supplied. Make sure the straps are tight and secure. IMPORTANT NOTES • The slide must be securely and evenly bolted down to the floor of the vehicle or to wherever the slide is to be used.
- Page 8 CLEANING, CARE, STORAGE & MAINTENANCE • Clean with a damp cloth. • Store away in a cool dry place away from dirt and debris. WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty;...
