Cavius 5103 Manual

Model no.: 5103
PLEASE READ THE USER GUIDE CAREFULLY
BEFORE USE AND RETAIN FOR FUTURE USE!

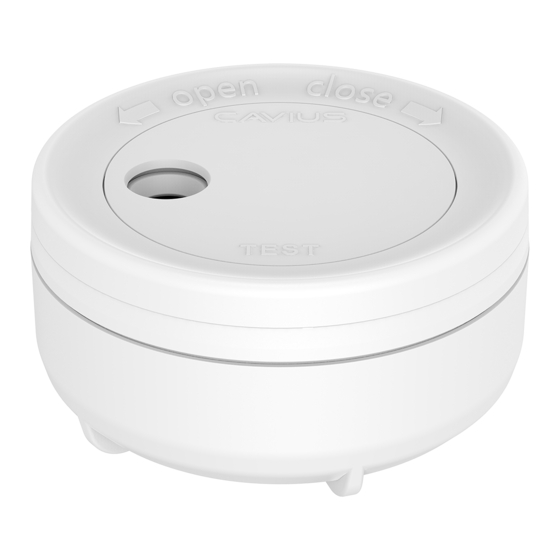

The Flood Alarm is designed to detect a leak of
water from washing machines, water pipes or un-
der-sink cabinets. It can also be used to detect
flooded basements.
SAFETY INSTRUCTIONS:
The device comes with a 3V lithium battery. Batter-
ies are to be handled with care and battery pow-
ered devices should be kept out of reach of chil-
dren. Do not try to recharge or burn the batteries.
TECHNICAL INFORMATION:
The maximum number of alarms that can be inter-
linked within a house group is 32.
Please note: These must be alarms from the CAV-
IUS Wireless Alarm Family.
The distance between interlinked alarms depends
on the house layout and they should always be
tested after installation. It is not advised to get
more than 10m distance between two alarms.
Diameter: 60mm. Height: 31mm.
The alarm is powered by a replaceable 3v CR123A
lithium battery.
SENSOR
PINS
1. HOW TO SET UP AND CONNECT ALARMS:
Open the flood alarm top cover by twisting counter
clockwise. Remove the Test button / Lid to access
the battery and the RF learn slide switch.
1 2
Start by pulling out the battery isolation strip as
shown.
PRODUCT LABEL
ISOLATION
STRIP
UK Please note: The product label must not be re-
moved as it contains important information regard-
ing the product.
All alarms that need to be connected in the house
should be put into 'Learn Mode' by sliding the
switch on the top of the alarm to the 'Learn mode'
position.
1
NORMAL MODE
The red LED will light up to indicate that 'Learn
Mode' has been selected.
Do not take out the battery during 'Learn Mode' as
this will interrupt the learn process.
Press and hold the test button at one alarm only,
until it beeps and the LED flashes. This alarm will
become the master and will start sending out a
specific house code to the other alarms.
1
As the other alarms receive the specific house
code, they will also flash the LED light.
SOUND
When the red LED light flashes on all alarms, they
are connected and MUST BE SWITCHED OUT OF
'LEARN MODE' and installed.
Label the original "Learn" alarm in order to easily
add new CAVIUS Wireless Family alarms to the
system.
DO NOT
1
REMOVE THE
2
LEARN MODE
2
NORMAL MODE
2
Remount the Test button / Lid. Close the flood
alarm top cover by twisting clockwise.
2. THE BEST AREAS TO INSTALL THE
FLOOD ALARM:
• Install a flood alarm where it is hard to discover
possible leaks.
• Install next to washing machine, dishwasher,
uder-sink cabinet or in the cellar.
• Install in basements.
Place the alarm where it is reachable in order to
test the battery.
3. AREAS WHERE NOT TO INSTALL FLOOD
ALARMS:
• On the ceiling.
• On the wall (unless using accessory wall
mounting base, see section 5).
• In rooms where temperature goes outside
0°C to 40°C.
Place the alarm where it is reachable in order to
test the battery.
4. PLACEMENT:
The flood alarm is designed to be placed on the
floor near to possible leaks.
NOTE: If you place the flood alarm in places where
a potential water leak / flood can rise higher than
2cm, there is a risk of your flood alarm beeing dam-
aged. In these places we recommend wall mount-
ing base with probe.
5. ACCESSORY WALL MOUNTING BASE WITH
PROBE:
NOTE: The wall mounting base with probe is an
accessory option for the flood alarm. It must be
purchased separately.
For installation in basements with risk of flooding
or areas with difficult accessibility.
