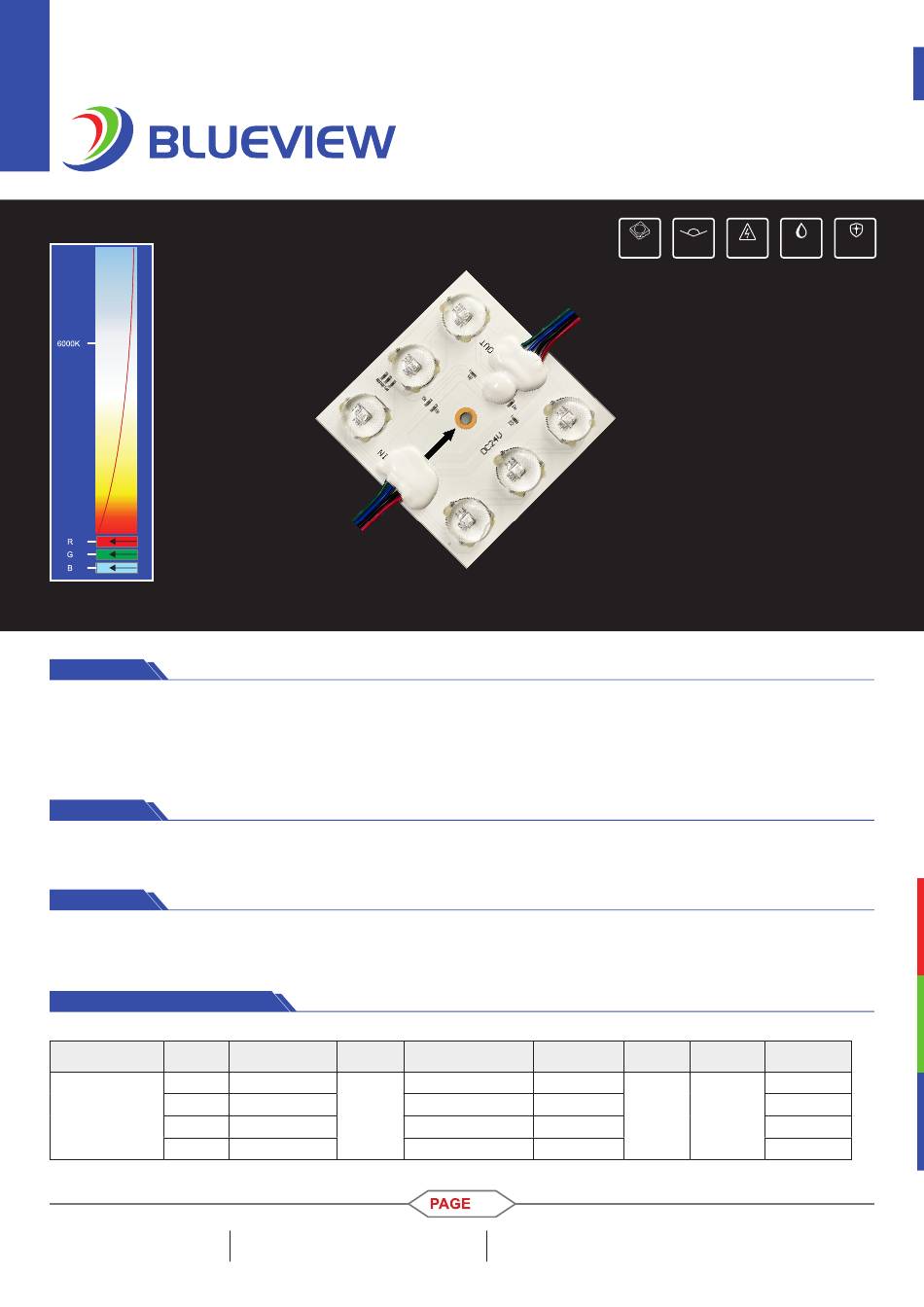

Features
- Large beam angle;
- Superior weather and UV resistance;
- External controller can be connected to realize rich color changes;
- Single module cuttable, support customization;
Application
- Suitable for 8-20cm depth light box, advertising letters,subway, supermarket, bus station, shopping mall, etc;
- Fix by adhesive tape or screws
Optical & Electrical Parameters
Model No.
Light Color
R
G
BC6-S1
B
RGB
■ Tel: +86-28-8148 0011
■ Fax: +86-28-8148 1258
CCT/Color Available
Beam Angle
(K/nm)
620-625
492-577
170°
440-475
--
■ Web.: www.blueviewled.com
■ Email: sales@blueviewled.com
Typical Luminous Flux
Efficacy (lm/W)
value (lm/pcs)
11
16
27
39
7
10
44
29
1
■ Add.: No. 1000, Section 2, Konggang 2nd Road, Shuangliu,
Chengdu 610207, Sichuan, CHINA

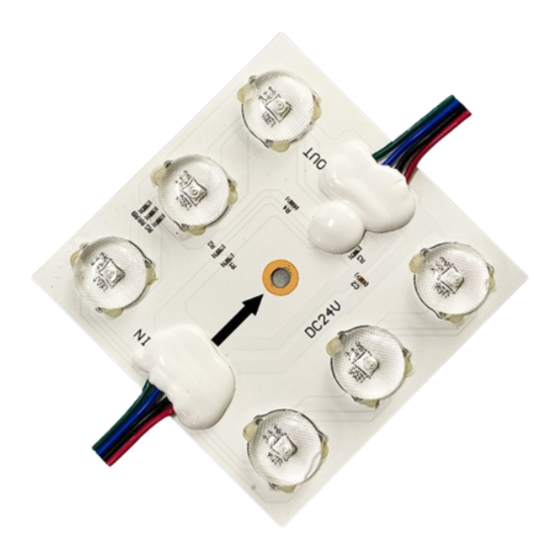

LED MODULE
BC6-S1
3030
170°
24V
IP20
Version: C1.2
Ra
Voltage (DC)
Power (W/pcs)
0.69
0.69
--
24V
0.69
1.55
3Years
