Features
■
9mm through hole light, luminous diameter 9mm
■
Large light-emitting surface, give out light uniformly and evenly
■
Anti-drop detent design, suitable for mounting board of 1-4mm thickness
■
Flat tail design adopted soft material, easy to installation
■
Integrated injection shell, great waterproof performance with glue filling process
Application
■ Suitable for supermarkets, middle or large signage lighting, bars, ambient lighting, aviation and navigation signs, and etc.
Installation
■ Through hole installation
■ Tel: +86-28-8148 0011
■ Fax: +86-28-8148 1258
■ Web.: www.blueviewled.com
■ Email: sales@blueviewled.com

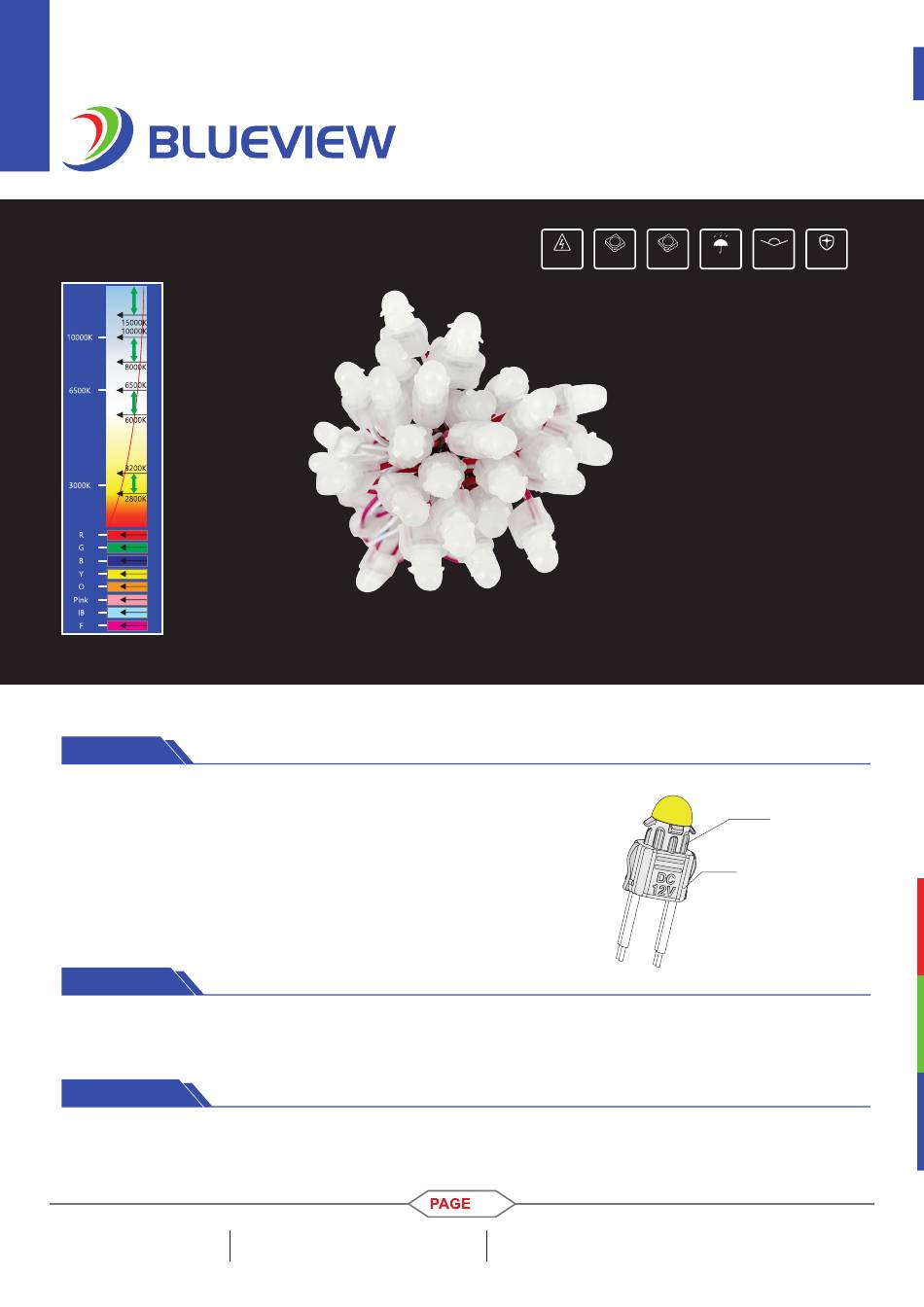

THROUGH-HOLE LED MODULE
12V/48V
R3528
1
■ Add.: No. 1000, Section 2, Konggang 2nd Road, Shuangliu,
Chengdu 610207, Sichuan, CHINA
2835
IP68
130°
3Years
Version: A1.6
Anti-drop detent
Flat tail design
CS0
Advertisement
Related Manuals for Blueview CS0
Summary of Contents for Blueview CS0
- Page 1 THROUGH-HOLE LED MODULE 12V/48V R3528 2835 IP68 130° 3Years Version: A1.6 Features Anti-drop detent ■ 9mm through hole light, luminous diameter 9mm ■ Large light-emitting surface, give out light uniformly and evenly ■ Anti-drop detent design, suitable for mounting board of 1-4mm thickness Flat tail design ■...
-
Page 2: Other Parameters
THROUGH-HOLE LED MODULE Optical & Electrical Parameters Beam Luminous Power CCT/Wavelength Efficacy Voltage Model No. Light Color Angle Flux(lm/pcs) (K/nm) (W/pcs) (lm/W) (DC V) 2800-3200 6000-6500 130° 0.18 8000-10000 15000-20000 620-625 520-525 460-465 585-590 130° 0.18 600-610 475-485 9000-10000 130° 0.19 620-625 520-525... - Page 3 THROUGH-HOLE LED MODULE Profile Drawings Unit:mm[inch] Note: for detail drawing,please consult sales rep. Luminous point VS Lighting spot Unit:mm Lighting spot Luminous point =4.5 NOTE: Luminous point: the size of the luminous part of the light source observed by the eyes. Lighting spot: The size of the projection formed by the Ordinary through-hole light source shining on the wall at a certain distance.
- Page 4 (CCT=3200K) Height Eavg，Emax Beam Angle: 132.74° Diameter Note:The above two pictures are obtained when CS0-W at 3200K. If you need data and parameters of other models, please contact the sales Rep ■ Tel: +86-28-8148 0011 ■ Web.: www.blueviewled.com ■ Add.: No. 1000, Section 2, Konggang 2nd Road, Shuangliu, ■...
-
Page 5: Installation
THROUGH-HOLE LED MODULE Installation Products and Tools Diagonal Pliers LED Power Supply Connection Terminals Gaffer Tape Mounting board thickness and hole size Hole Mounting board Model No. Hole size(mm) 9+0.2 " " "L" Distance(mm) 20-60 "H" Board thickness(mm) Through hole installation Anti-drop detent Mounting Board Antiskid design... - Page 6 THROUGH-HOLE LED MODULE suitable mounting board: H=1-4mm Exposed channel letters installation ① ② ③ ④ ⑤ 1. Clean the mounting surface. 2. Put the through-hole LED module into the reserved hole. 3. Cut the modules according to the requirements and make waterproof and insulating treatment for the cut wire ends. 4.
-
Page 7: Packaging Information
THROUGH-HOLE LED MODULE Packaging information Bag/carton Model No. Carton Size(mm) Pcs/bag Net Weight(kg) Gross Weight(kg) Product Size L*W*H(mm) 19.5*20.6*10.6 380*380*325 14.25(1±10%) 15.75(1±10%) NOTE: The above quantity and weight are only for the illustrated packaging method. There will be differences in the quantity and weight with other packaging methods. Do not apply pressure on the luminous soft shell and head, otherwise it will deform and affect the luminous effect. - Page 8 THROUGH-HOLE LED MODULE Attentions before installation This product currently has two voltages, 12V and 48V; In the same project, products with the same voltage are recommended. In the same project, it is recommended to select products of the same batch. If not, the light color consistency must be verified first. This product has a soft shell, and the parts other than the anti-drop detent are not allowed to be affected by external force;...
- Page 9 THROUGH-HOLE LED MODULE Statements and Recycling Statements: - Before use, please read this specification carefully, and operate according to the instructions, otherwise the company will not guarantee the quality, and will not be responsible for the consequences. - Repair should be operated by a qualified technician, if the external circuit or main line of this product is damaged. - The parameters given in this manual are typical values and for reference only.
