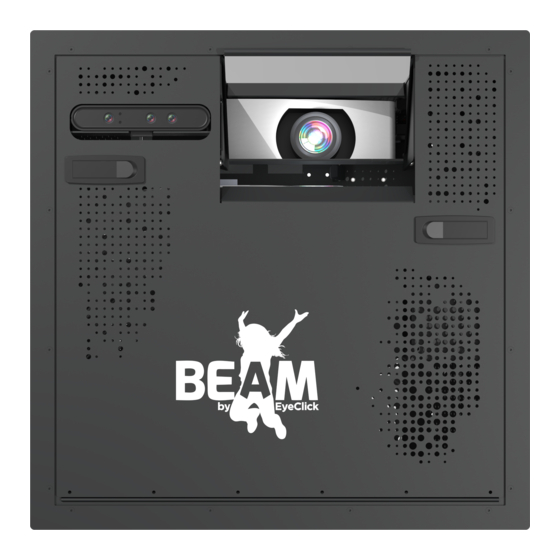

- Page 1 INSTALLATION GUIDE FLOOR TABLE...
-
Page 2: What's In The Box
WHAT’S IN THE BOX Thank you for purchasing your new BEAM. Here's what's included: BEAM interactive Power cord Remote control projector... -
Page 3: Before Installing
BEFORE INSTALLING In order to hang your BEAM from the ceiling, please prepare: 4 CONCRETE EYE BOLT ANCHORS MEASURING TAPE DRILL PLIERS LEVEL Note An internet connection is required to complete the device setup. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS LEFT The BEAM device dimentions and measurements in inches: BACK... -
Page 5: Where To Install
WHERE TO INSTALL Use this table to determine if the PROJECTION SURFACE MINIMUM ZOOM MAXIMUM ZOOM installation location can accomodate the desired projection size. Distance from surface to device Length Width Length Width 8' (2.5m) 5' 2" (1.6m) 3' 3" (1m) 6' 9"... - Page 6 INSTALLING BEAM In order to leave sufficient space for the projection area, keep a distance of at least Locate the center of the projection area - the device will be installed directly above 40 inches between the marked square (where you intend to install the device) and it.
- Page 7 INSTALLING BEAM Drill holes at of the square's marked corners. Make sure the drilled holes depth Fasten the bolts in place. and diamater match the measurments of your eye bolt anchors. Insert an eye bolt anchor to each one of the drilled holes.
- Page 8 INSTALLING BEAM Now take the wire kit. Slide the express hanger along the wire Then, insert the wire rope through the eye bolt anchor and then into the opposite Insert the wire rope into the middle rope & stop at the desired length.
- Page 9 INSTALLING BEAM To adjust the express hanger's position While the button is pressed, adjust the and the wire rope's length, push the wire rope's length. When the desired release button next to the wire entrance. position is reached, release the button.
- Page 10 INSTALLING BEAM Unpack the device and place it face Mount the device by clasping the snap hook endings on each of the wire ropes to Place the leveler on the device to ensure down on a soft surface such as a carpet.
- Page 11 INSTALLING BEAM Connect the device to a 15A 110-240V Connect the device to your router using Turn on the projector using the remote dedicated, stable power outlet. The an Ethernet cable. The internet port is control. Allow up to 10 minutes for power socket is located on the device's located on the device's back panel.
- Page 12 DROP (FALSE) CEILING INSTALLATION To install BEAM in a location with a drop (false) ceiling, Make sure the device's weight is fully supported by the anchor the device to the true ceiling or a support beam wire kit attached to the true ceiling or a support as previously explained.
- Page 13 INSTALLING BEAM Alternatively, you can use a pole for an open ceiling installation. Simply connect the If you're installing the device to a metal pole to the device's top panel. ceiling, use suitable hook bolt anchors for metal surfaces. TOP PANEL POLE MOUNT...
- Page 14 SETTING UP YOUR BEAM Once the projector is fully activated, use If needed, it's possible to slightly adjust the projection If the projection is skewed, straighten it by clicking the HOME button on the projector's zoom and focus wheels to position after installing the device.
- Page 15 SETTING UP YOUR BEAM FOR TABLE USE For floor use, skip to next page >> Set up the projection are so it will cover the table you aim to project TABLE PLACEMENT IN PROJECTION AREA on entirly. If that's not possible due to the ceiling height or zoom limitation, try...
- Page 16 CONFIGURATION Now let's make sure the motion sensor camera is capturing the projection area correctly. Access the control area by pressing the HOME button on your remote. If needed, it's possible to slightly adjust the projection Then go to SETTINGS. Scroll down to DEVICE INFORMATION and hold the OK button position after installing the device.
- Page 17 CONFIGURATION If the device is not connected through an Ethernet cable, open the control area, go to the Settings section and navigate to INTERNET to connect to an available network.
- Page 18 CONFIGURATION Finally, go to the Settings section and set the time zone to the correct one.
- Page 19 CONFIGURATION To complete the process, navigate to ADJUST PROJECTION, then press CALIBRATE MOTION SENSOR to run the callibration. Note The device will automatically run the callibration process. Please wait until the Settings Menu reappears. This can take up to a minute.
- Page 20 FITTING THE PROJECTION TO A TABLE First, let's make sure the projection fits to the table's size and shape. Before starting, please make sure the table is completely clear of any objects or people and that the projection is unobstructed. If needed, navigate to ADJUST PROJECTION under Select MANUAL MASK.
- Page 21 FITTING THE PROJECTION TO A TABLE If a rectangular projection mask was selected, fit it the table's size and shape as follows: DRAG PROJECTION MASK Hold and drag the arrows icon to move the projection mask to the center of the table.
- Page 22 FITTING THE PROJECTION TO A TABLE If a circular projection mask was selected, fit it the table's size and shape as follows: DRAG PROJECTION MASK Hold and drag the arrows icon to move the projection mask to the center of the table.
- Page 23 ENJOY YOUR BEAM! Please read the BEAM QuickStart Guide to learn how to manage and operate your device. For any issues or questions, please contact us. Email: support.team@eyeclick.com Website: https://eyeclick.com/contact/support/...
