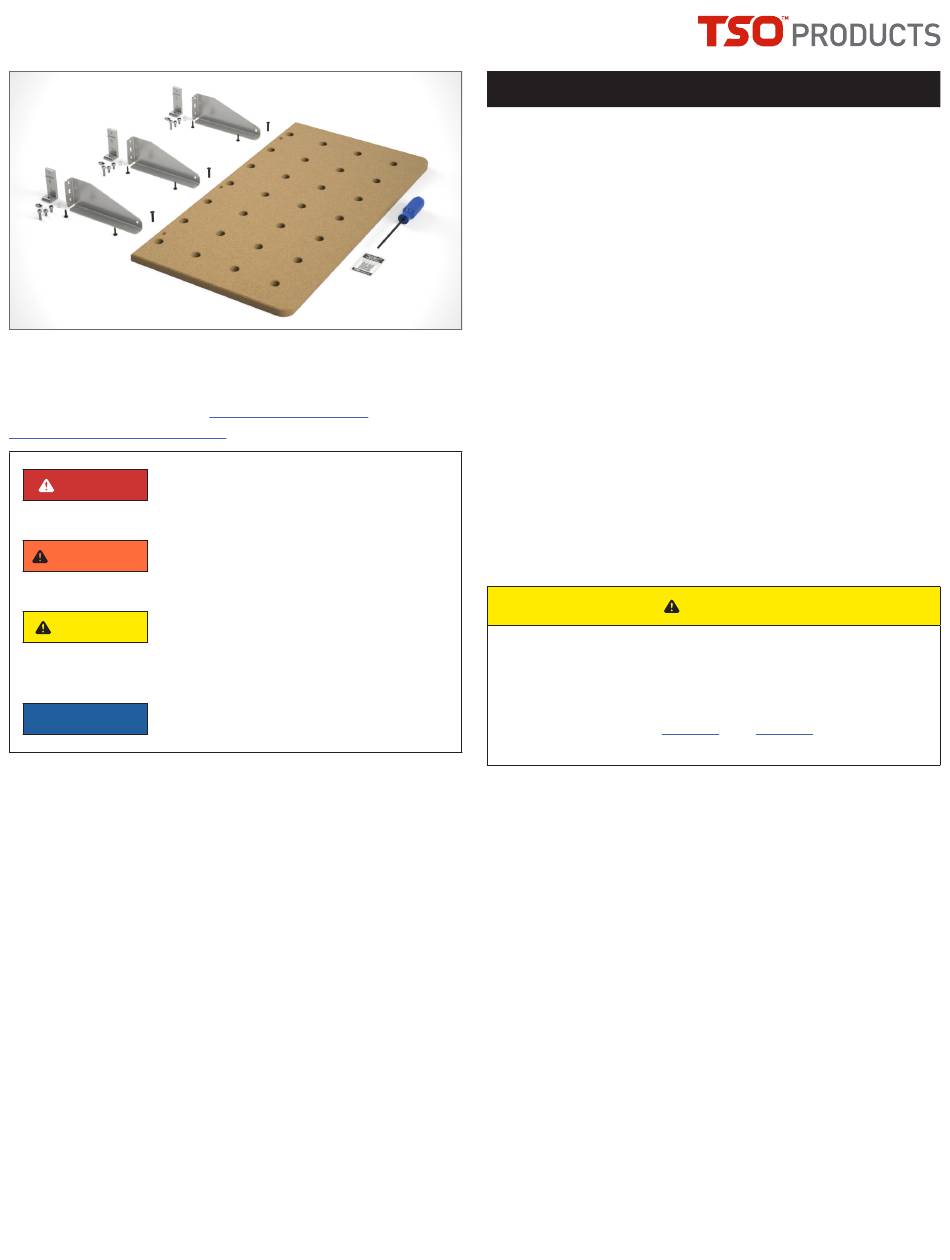

MFT/3 EXTENSION TABLE
Assembly INSTRUCTIONS
Thanks for purchasing this genuine TSO Product.
Questions? Suggestions? Ideas? We thrive on your feedback!
Contact us toll-free at 800-727-0311 (U.S.), 239-236-5526
(international), email us at info@tsoproducts.com, or visit
www.tsoproducts.com/support
Danger indicates a hazardous situa-
DANGER
tion that, if not avoided, will result in
death or serious injury.
Warning indicates a hazardous situa-
WARNING
tion that, if not avoided, could result
in death or serious injury.
Caution indicates a hazardous situa-
CAUTION
tion that, if not avoided, may result
in minor or moderate injury
or property damage.
Notice indicates important or helpful
NOTICE
information and/or user tips.
Publication 696-096 RevB
for a copy of this guide.
©2024 TSO Products LLC
ESSENTIAL SAFETY WARNINGS
This product is intended and designed for use only in
conjunction with the FESTOOL® MFT/3 Multifunction Ta-
ble. The FESTOOL Instruction Manual for the MFT/3 also
applies in connection with the use of this TSO Products
MFT/3 Extension Table.
You are responsible for the safe and proper use of this TSO
Products accessory. This is not a toy.
To make your woodworking experience enjoyable and
safe, keep in mind:
•
This Extension Table has been load tested to 30 lbs. stat-
ic load. To keep your work area floor clear, no additional
support legs are provided. This benefit comes with a tip-
ping and/or tilting limitation, especially if the Extension
Table is attached to the longer sides of your FESTOOL
MFT/3. Keep in mind that even momentary tilting may
cause objects on the table to slide and fall with risk of
damage or injury.
•
The attachment of the Extension Table is designed to
provide a very strong connection with the FESTOOL
MFT/3 when properly secured.
To prevent injury caused by unintended separation of
the Extension Table from your FESTOOL MFT/3, it is
critically important that all provided Hammer Nuts are
correctly installed and engaged with the T-slot of the
FESTOOL MFT/3. See
Step 13
bly Instructions included in this document.
Woodworking involves a variety of injury risks which you
can reduce with proper use of Personal Protective Equip-
ment (PPE) and adherence to safe work practices.
CAUTION
and
Step 14
in the Assem-
Page 1 of 7
