OPERATION & MAINTENANCE MANUAL
HEAVY TRACK SKIDDING SYSTEM
Model:
HT300
Revision: October 2020
Hydra-Slide Ltd.
Royal Road
Guelph, ON
Canada N H G
hydra-slide.com
PLEASE READ OPERATING MANUAL BEFORE
USING THIS EQUIPMENT AND ADHERE TO ALL
SAFETY INSTRUCTIONS. FOR QUESTIONS,
CONTACT HYDRA-SLIDE LTD. AT +1-519-900-1450

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT300 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydra-slide HT300

Summary of Contents for Hydra-slide HT300

  • Page 1 HEAVY TRACK SKIDDING SYSTEM Model: HT300 Revision: October 2020 Hydra-Slide Ltd. Royal Road Guelph, ON Canada N H G hydra-slide.com PLEASE READ OPERATING MANUAL BEFORE USING THIS EQUIPMENT AND ADHERE TO ALL SAFETY INSTRUCTIONS. FOR QUESTIONS, CONTACT HYDRA-SLIDE LTD. AT +1-519-900-1450...

  • Page 2: Table Of Contents

    Table of Contents 1 - GENERAL INFORMATION ......................1 1.1 Original Instructions ......................1 1.2 Manufacturer Details ......................1 1.3 Machinery Description ......................1 1.3.1 The Workstation .......................... 2 1.3.2 Intended Use ..........................2 1.4 Safety Precautions ........................ 2 1.4.1 General Safety Precautions and Potential Misuse ..............3 1.4.2 Operator Training ........................

  • Page 4: General Information

    HYDRA-SLIDE HT300 SKIDDING SYSTEM 1 - GENERAL INFORMATION 1.1 Original Instructions The English version of this manual is the Original Instructions for the Hydra-Slide HT300 Skidding System. All other language versions are translations of the Original Instructions. 1.2 Manufacturer Details Hydra-Slide Ltd.

  • Page 5: The Workstation

    1.3.2 Intended Use The HT300 Skidding System is used to move heavy equipment up to 300 tons (272 tonne) safely and in a controlled manner. 1.4 Safety Precautions Set up and operate the HT300 Skidding System only under the direction and supervision of experienced and qualified personnel.

  • Page 6: General Safety Precautions And Potential Misuse

    • Never use unsafe practices to bleed a pressurized hose or coupler. Use only a specially- designed coupler bleed tool such as a CT-604 Safety Tool available through Hydra-Slide Ltd. • Always ensure that jacks and cylinders are used parallel and in line with their axis. Never use a jack or cylinder at an angle or to “kick”...

  • Page 7: Operator Training

    Observing the safety precautions indicated in these Instructions minimizes the risks associated with using the HT300 Skidding System, however residual risks remain in the event of loss of control of the load while skidding. It is recommended to always use the provided stop blocks as described in Section 3.3.

  • Page 8: Assembly And Setup

    2 - ASSEMBLY AND SETUP 2.1 Track and Skid Shoe Setup • Establish a clear path for the load to be moved. • Raise load (using other means) to a sufficient height to place skid system under. • Place track under load. •...
  • Page 9 • Track sections must be set up and kept level (± 2%) and parallel (± ¼”) at all times. It may be advantageous to have a slight incline in the direction of travel, but avoid setting up or operating the system on a decline without an adequate external holdback. •...

  • Page 10: Push-Pull Cylinder Setup

    2.2 – Push-Pull Cylinder Setup The HT300 skidding system can be set up to operate in either Push or Pull mode. Note that if the system is to be used in Pull mode, the capacity of the system is reduced by approximately 50%.
  • Page 11 • Insert the Pivot Mount (in either Push or Pull mode orientation) into the Cylinder Base Plate, and connect using a Connector Pin • Insert the Push-Pull cylinder assembly into the HT300 track • Place the Rod End Attachment of the cylinder assembly between the Skid Shoe Pin Lugs,...

  • Page 12: Operation

    3 – OPERATION 3.1 Hydraulic Connections • Attach suitable 10,000 psi-rated hydraulic hoses to the cylinder quick coupler fittings. Unless otherwise ordered, the couplers are standard CR400 female couplers. • Connect the other end of the hoses to a suitable hydraulic pump unit ensuring that the bottom of each cylinder is connected to the pressure port (ADV port if using a Hydra-Pac power unit) and that the top of each cylinder is connected to the return port (RET port if using a Hydra-Pac unit).

  • Page 13: Safety Stop Blocks

    than 150 tons, instead remove the push-pull cylinders and position them into the track at the back side of the load, and push the load backwards as required. • When the load reaches its desired position, raise the load (using other means) to a sufficient height to remove the skid system, and then lower the load into position.

  • Page 14: Maintenance And Adjustments

    Take special care of all hydraulic components and fittings. • Maintain skidding surfaces clean, dry and completely covered with graphite. Reapply graphite frequently depending on usage and storage conditions. • Repair or replace any broken, worn or damaged components. Contact Hydra-Slide Ltd. For replacement parts. 4.2 Troubleshooting...

  • Page 15: Transportation, Handling, And Storage

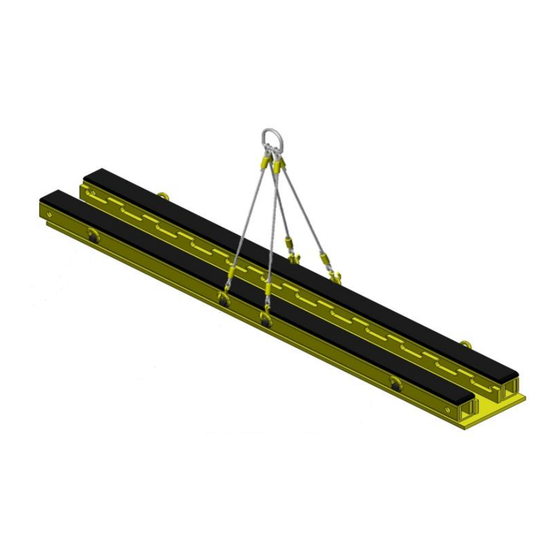

    5 - TRANSPORTATION, HANDLING, AND STORAGE • Individual components should be handled separately and with care. Weights are indicated on the nameplates of each component part. • Lift track sections only with the provided D-rings. Lift all other components using attached lifting lugs or recommended lifting locations.

  • Page 16: Appendix 1 - Ec Declaration Of Conformity

    Hydra-Slide Ltd. 84 Royal Road Guelph, Ontario, Canada N1H 1G3 We declare that the Hydra-Slide HT300 Skidding System is in accordance with the following Harmonized Standards: EN ISO 12100:2010 Safety of machinery – General principles for design - Risk assessment and risk reduction EN 4413:2010 Hydraulic fluid power –...
  • Page 21 SIDE VIEW END VIEW PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HYDRA-SLIDE LTD. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HYDRA-SLIDE LTD. IS PROHIBITED. ITEM PART No.
  • Page 22 SIDE VIEW END VIEW 3035 5779 PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HYDRA-SLIDE LTD. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION ITEM NO. PART NO. DESCRIPTION WEIGHT OF HYDRA-SLIDE LTD.
  • Page 23 It is recommended that service work on the HS3014 Cylinders be provided by qualified technicians only. It is advised that only spare parts recommended by Hydra-Slide Ltd. be used for repair. Hydra-Slide does not accept responsibility for damages caused by the use of unsuitable spare parts.
  • Page 24 • Cylinder effective area: o Push: 6.488 in 4185 mm o Pull: 2.514 in 1620 mm • Cylinder max force @ 10,000 psi: o Push: 64,000 lbs (29030 kg) o Pull: 25,000 lbs (11340 kg) 5 - Safety Always read and understand instructions and safety warnings that come with the equipment and always follow safe work practices.
  • Page 25 • Never use unsafe practices to bleed a pressurized hose or coupler. Use only a specially designed coupler bleed tool such as a CT-604 Safety Tool available through Hydra-Slide Ltd. • Always ensure that jacks and cylinders are used parallel and in line with their axis.
  • Page 26 9 - Maintenance • Always use clean, approved hydraulic fluid and replace as needed. Hydra-Slide Ltd. recommends using only ATF D3M or compatible oil. • Keep cylinder rod fully retracted when not in use.
  • Page 27 10 - Troubleshooting Symptom Probable Cause Recommended Action Check and tighten all A coupler is not fully couplers engaged Cylinder(s) advance part Add oil to reservoir Oil level in pump is low Check for oil contamination, Cylinder rod is binding bent, misaligned or worn parts.
  • Page 33 Technical Data Sheet Technical Data Sheet SLIP Plate SLIP Plate No. 4 No. 4 ® ® Water-Based, Graphite Dry Film Lubricant Water-Based, Graphite Dry Film Lubricant Product Description: ® ® SLIP Plate No. 4 is a water-based alternative to our SLIP Plate No.
  • Page 34 Technical Data Sheet SLIP Plate No. 4 ® Water-Based, Graphite Dry Film Lubricant Preparation & Application: · Stir material prior to use. It is important to properly stir the material with a hand stir stick or paint mixer. It is normal for the material to settle during transportation, and it may take some time to mix by hand.
  • Page 35 Technical Data Sheet SLIP Plate No. 4 ® Water-Based, Graphite Dry Film Lubricant Please consult the SDS for additional information on disposal of unused materials, and safe handling practices. ORDERING/SHIPPING INFORMATION AVAILABLE PACKAGING Four–1 Gallon Cans: Part #33615OS (product ordering code) Five (5) Gallon Pail: Part #36008 SHIPPING WEIGHT...
  • Page 36 Safety Data Sheet Section 1: Identification of the Substance/Mixture and of the Company/Undertaking 1.1 Product identifier Product Name SLIP Plate No. 4 Product Code 1.2 Relevant identified uses of the substance or mixture and uses advised against Relevant identified use(s) Dry film lubricant 1.3 Details of the supplier of the safety data sheet Manufacturer...
  • Page 37 H335 - May cause respiratory irritation H373 - May cause damage to organs through prolonged or repeated exposure Precautionary statements Prevention P260 - Do not breathe mist, vapours, or vspray. P264 - Wash thoroughly after handling. P270 - Do not eat, drink or smoke when using this product. P271 - Use only outdoors or in a well-ventilated area.
  • Page 38 Causes serious eye irritation Suspected of damaging fertility or the unborn child. Causes damage to organs through prolonged or repeated exposure Precautionary statements Prevention Obtain special instructions before use. Do not handle until all safety precautions have been read and understood. Do not breathe mist/vapours/spray.
  • Page 39 No 1272/2008. 3.2 Mixtures Composition Classifications According to Chemical Name Identifiers LD50/LC50 Comments Regulation/Directive CAS:7782-42-5 EU DSD/DPD: Not classified < Graphite EU CLP: Not classified Number:231- OSHA HCS 2012: Comb. Dust 955-3 EU DSD/DPD: Annex VI, Table 3.2: Xn R20/21/22 Xi Inhalation-Rat LC50 •...
  • Page 40 Refer to Section 11 - Toxicological Information. 4.3 Indication of any immediate medical attention and special treatment needed Notes to Physician All treatments should be based on observed signs and symptoms of distress in the patient. Consideration should be given to the possibility that overexposure to materials other than this product may have occurred.
  • Page 41 7.1 Precautions for safe handling Handling Use only in well ventilated areas. Wear appropriate personal protective equipment, avoid direct contact. Do not breathe mist, vapours, spray. Avoid contact with eyes, skin and clothing. Do not ingest. Wash thoroughly with soap and water after handling and before eating, drinking, or using tobacco.
  • Page 42 Section 9 - Physical and Chemical Properties 9.1 Information on Physical and Chemical Properties Material Description Physical Form Liquid Appearance/Description Dark gray liquid with no odor. Color Dark gray. Odor Odorless Odor Threshold Data lacking General Properties Boiling Point 212 F(100 C) Melting Point Data lacking Decomposition Temperature...
  • Page 43 Components Multi-dose Toxicity: Inhalation-Hamster TCLo • 3 mg/m³ 6 Hour(s) 78 Week(s)-Intermittent; Lungs, Thorax, or Respiration:Fibrosis (interstitial); Lungs, Thorax, or Respiration:Changes in lung weight; Inhalation-Rat 14808- TCLo • 80 mg/m³ 26 Week(s)-Intermittent; Lungs, Thorax, or Respiration:Fibrosis, focal (pneumoconiosis); Quartz (< 1%) Blood:Changes in spleen;...
  • Page 44 EU/CLP • Data lacking Respiratory sensitization OSHA HCS 2012 • Data lacking • EU/CLP Data lacking Serious eye damage/Irritation OSHA HCS 2012 • Eye Irritation 2 Potential Health Effects Inhalation Acute (Immediate) May cause respiratory irritation. Chronic (Delayed) No data available Skin Acute (Immediate) Causes skin irritation.
  • Page 45 No studies have been found. Section 13 - Disposal Considerations 13.1 Waste treatment methods Product waste Dispose of content and/or container in accordance with local, regional, national, and/or international regulations. Packaging waste Dispose of content and/or container in accordance with local, regional, national, and/or international regulations.
  • Page 46 For more information, consult the section Substance Specific • Quartz 14808-60-7 Issues - Silica, crystalline, encapsulated on Health Canada's WHMIS Division website.) • Graphite 7782-42-5 D2A (natural); D2B (synthetic) Canada - WHMIS - Ingredient Disclosure List • Triethylamine 121-44-8 • Ethylene glycol monobutyl ether 111-76-2 •...
  • Page 47 • Triethylamine 121-44-8 Not Listed • Ethylene glycol monobutyl ether 111-76-2 Not Listed • Butyl alcohol 71-36-3 Not Listed • Quartz 14808-60-7 Not Listed • Graphite 7782-42-5 Not Listed Japan - Poisonous and Deleterious Substances - Substances Not Considered Poisonous •...
  • Page 48 • Triethylamine 121-44-8 Not Listed • Ethylene glycol monobutyl ether 111-76-2 Not Listed • Butyl alcohol 71-36-3 Not Listed • Quartz 14808-60-7 Not Listed • Graphite 7782-42-5 Not Listed U.S. - CERCLA/SARA - Section 302 Extremely Hazardous Substances TPQs • Triethylamine 121-44-8 Not Listed •...
  • Page 49 U.S. - California - Proposition 65 - No Significant Risk Levels (NSRL) • Triethylamine 121-44-8 Not Listed • Ethylene glycol monobutyl ether 111-76-2 Not Listed • Butyl alcohol 71-36-3 Not Listed • Quartz 14808-60-7 Not Listed • Graphite 7782-42-5 Not Listed U.S.
  • Page 50 conditions beyond our control, we assume no responsibility for its use. Key to abbreviations NDA = No data available...
  • Page 52 English Metric English Metric CT-604 Safety Tool Enerpac coupler bleed tool eliminates unsafe pressure relieving and bleeding activities such as: using a hammer and punch to unseat check balls, cones & using a wrench to ‘loosen’ a coupler. poppets Coupler Bleed Tool Fits on High Flow Couplers Maximum Model...
  • Page 53 Instruction Sheet POWERFUL SOLUTIONS. GLOBAL FORCE. CT-604 Hydraulic Coupler Bleed Tool L2755 Rev. C 02/11 Index: English....... . 1-2 Français.
  • Page 54 4.0 INSTRUCTIONS Note: The bleed tool main body is marked “male coupler” on one end and “female coupler” on the DANGER: Never attempt to relieve hydraulic other. Be sure to use the proper end. pressure by loosening a coupler. Trapped 4.
  • Page 55 Contact Us For Technical Documentation: Log in to the client portal at hydra-slide.com using the password HYD123 For Technical Support & Troubleshooting: Call us at +1 (519) 900-1450 and select option 2 email Robert Young - robert@hydra-slide.com For Sales Inquiries & Customer Support: Call us at +1 (519) 900-1450 and select option 1 email info@hydra-slide.com...
