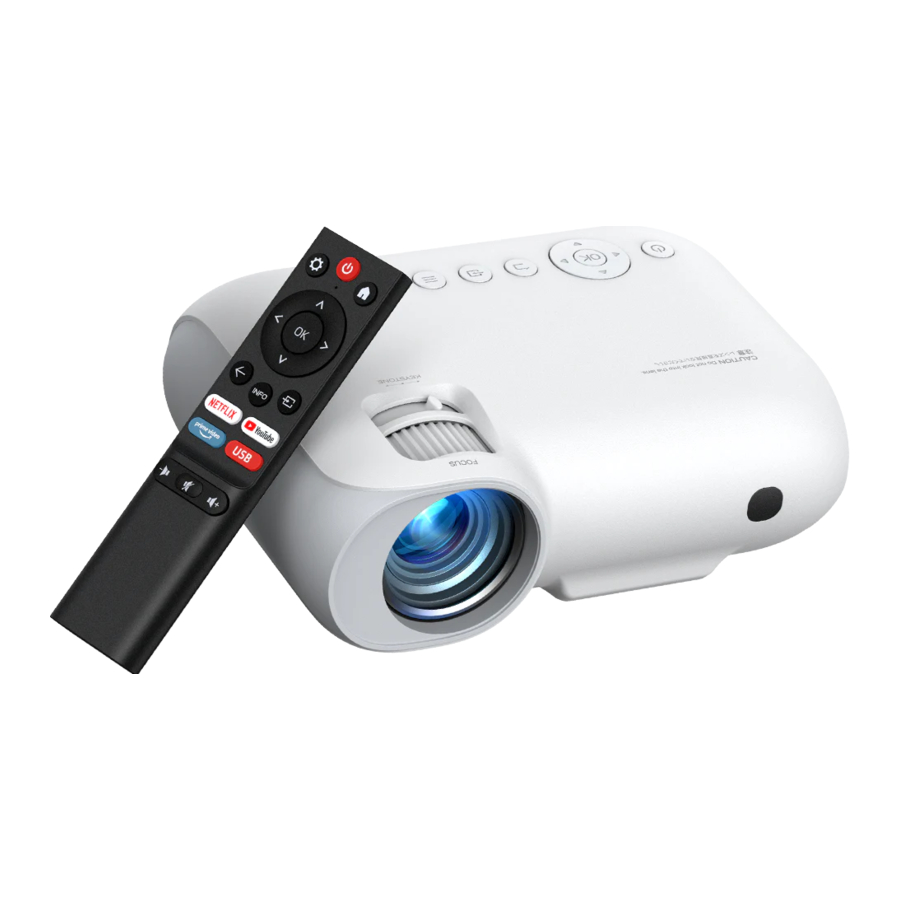

YOTON Y9 - Video Projector Manual

YOTON Y9 - Video Projector Manual

Advertisement

YOTON Y9 - Video Projector Manual

Packing List

Product Introduction

Product Introduction - Part 1
Product Introduction - Part 2

Specifications

Model Y9
Display Technology LCD
LED Technology LED
LED Life >50000H
Aspect Ratio 16:9/4:3
Projection Size 40—200 inch (Recommend 80")
Projection Distance 1.4-4.0m (Recommend 2.5m)
Input Interface HDMI/USB
Built-in Platform Netflix/Youtube/Prime Video, etc
Output Interface 3.5mm Headphone
Language English, German, Chinese, etc
Power DC 19V
Power Consumption 60W
Size 220 x 170 x 83mm
Weight 1.12kg
Working Temperature 0-30°C
Dolby Supported

Projection Size

Projection Size

How to Get Clear Images

Adjust the keystone correction and focus wheel on the projector to obtain the satisfactory imaging effect. Make sure the projector is placed on a flat surface.

When the image is blurred (see figure below), it is recommended to adjust the focus wheel to improve the clarity of the image.
How to Get Clear Images - Focus adjustment

When keystone distortion occurs (see figure below), it is recommended to adjust the keystone correction ring.
How to Get Clear Images - Keystone adjustment

If satisfactory clarity cannot be achieved through adjustment, move the product forward or backward.

Start up and Shutdown

Please first plug the power cord into the projector and then insert the plug into the socket to avoid spark.
You can press "Power" button on the projector or on the remote control to start up or shut down the projector.

Note:
Please unplug the power cord in time after you have turn off the projector to save energy.
Rotate the focusing ring into the device to ensure that the lens is fully contained inside the device.
Cover the dust-proof lens cap into the lens and store the device in a cool and dry place.

Built-in Platforms

This projector has several built-in platforms, such as Netflix, Youtube, Prime video, etc. Please connect the projector to your home network in the settings first, and then select the platform you want to watch.

Signal Sources Switch

You can switch signal sources as below:

  1. Press the "Input Source" button on the projector panel to display the input source selection menu.
  2. Select the appropriate input source, and press the "OK" key on the projector panel or the remote control to confirm the selection.
    For example, if you want to connect a Fire TV Stick via HDMI input, you should choose "HDMI" as the signal source on the projector.

Note:
When connecting a signal source to the projector, be sure to:

  1. Turn all equipment off before making any connections.
  2. use the correct signal cables for each source.
  3. Make sure the cables are firmly inserted.

Troubleshooting

  1. What if the image is not clear

If the image is not clear enough, adjust the focus wheel and keep the watching distance 1.4-4m.
If the bottom/top of the screen is blurry, or if half of the screen is not rectangular, adjust the ± 15° keystone correction.

  1. Can the device be used outdoors to watch movies?

Y9 can be used outdoors, but please make sure there is a socket, because the video projector needs a power cable to work (included).

  1. The remote control does not work

Make sure the remote points at the IR receiver directly, and do not cover IR receiver. Make sure you have inserted the battery (not included) into the remote control. Because of Amazon's safety policy, the battery is not included in the package.

  1. There are black dots on the projection screen

As the projector is not sealed, it is relatively common for dust to enter the lens through the vents or speakers. You can remove the sticker on the bottom centre of the projector, then open the black cover and clean it with a cotton swab.
Note: Be careful not to look directly into the light source of the projector.

  1. Any other confusion

Please contact us through the following email address if you got any confusion about this projector.
support@yoton.co

Important Safety Warnings

burn hazardshock hazard
The following safety instructions ensure the long service life of the projector to avoid fire or electric shock. Make sure to read them carefully and pay attention to all the following warnings.

  1. Do not install the projector in sites with improper ventilation. Keep the back of the projector well ventilated so it can cool the system without problem. Do not block the ventilation holes.
  2. Do not install the projector in dust and smoke sites. Do not install the projector near the temperature and smoke transducer. It may cause a sensor failure.
  3. Do not install the projector in sites with direct blowing of warm and cool air-condition wind. Otherwise it may cause the project failure due to moisture condensation or temperature increment.
  4. No water-proof function for this projector, apparatus like vase or cup should not be put around the projector.
  5. No peeking into the lens while projectors is working.
  6. Please turn off the projector and cut off the power supply, if it is not used for a long time.
  7. shock hazard To avoid risk of electronic shock, do not disassemble or repair the device. Incorrect repair may cause risk of electronic shock or injury to people during operating. If projector is defected, please contact our after-sale service team: support@yoton.co

You can find our contact information below:
support@yoton.co

Facebook

Instagram

Web

Youtube
