- Page 1 User Manual Model MH3-S5 Multipurpose MediaHub Image Angle 1 View: Centered...

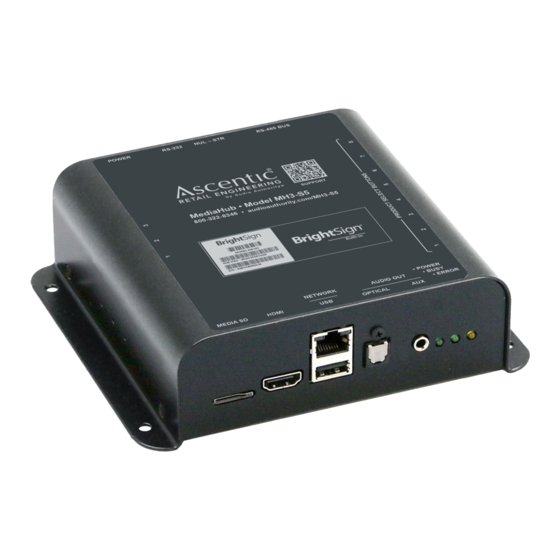

- Page 2 The Model MH3-S5 combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the MH3-S5 produces flawless 4K@60 video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.
- Page 3 HDMI Output The MH3-S5 HDMI output delivers 4K@60 video via an HDMI cable to HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sync device. Video File Information MPEG-4 encoded videos are supported with maximum video resolution up to 4K@60. Test all files before deployment.
- Page 4 Power cycle all devices to clear out previous TCP connections. Firmware Update Process The Model MH3-S5 is updatable through the microSD port. Below are the steps outlining the firmware update process: 1. Copy new firmware “.FWU” file onto a blank microSD card (Fat32 format preferred) 2.
- Page 5 Digital and Analog Headphones with Video This display leverages the MH3-S5 Media Hub’s multiple audio output options to demonstrate a variety of products. The audio output jacks can play either digital or analog audio, depending on the requirements of the device. The HDMI output interfaces with a 4K TV that informs the customer about each product.
