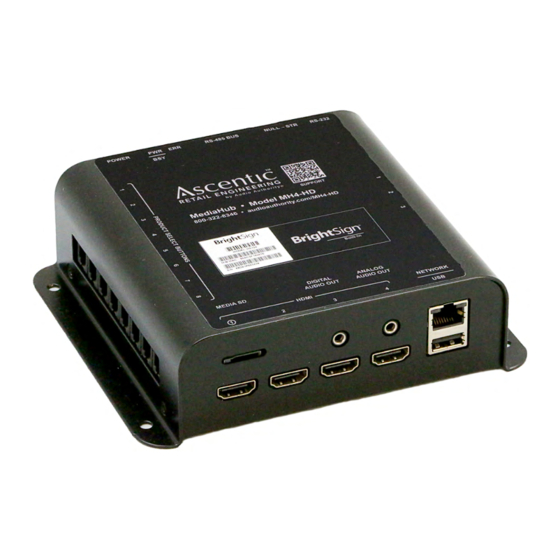

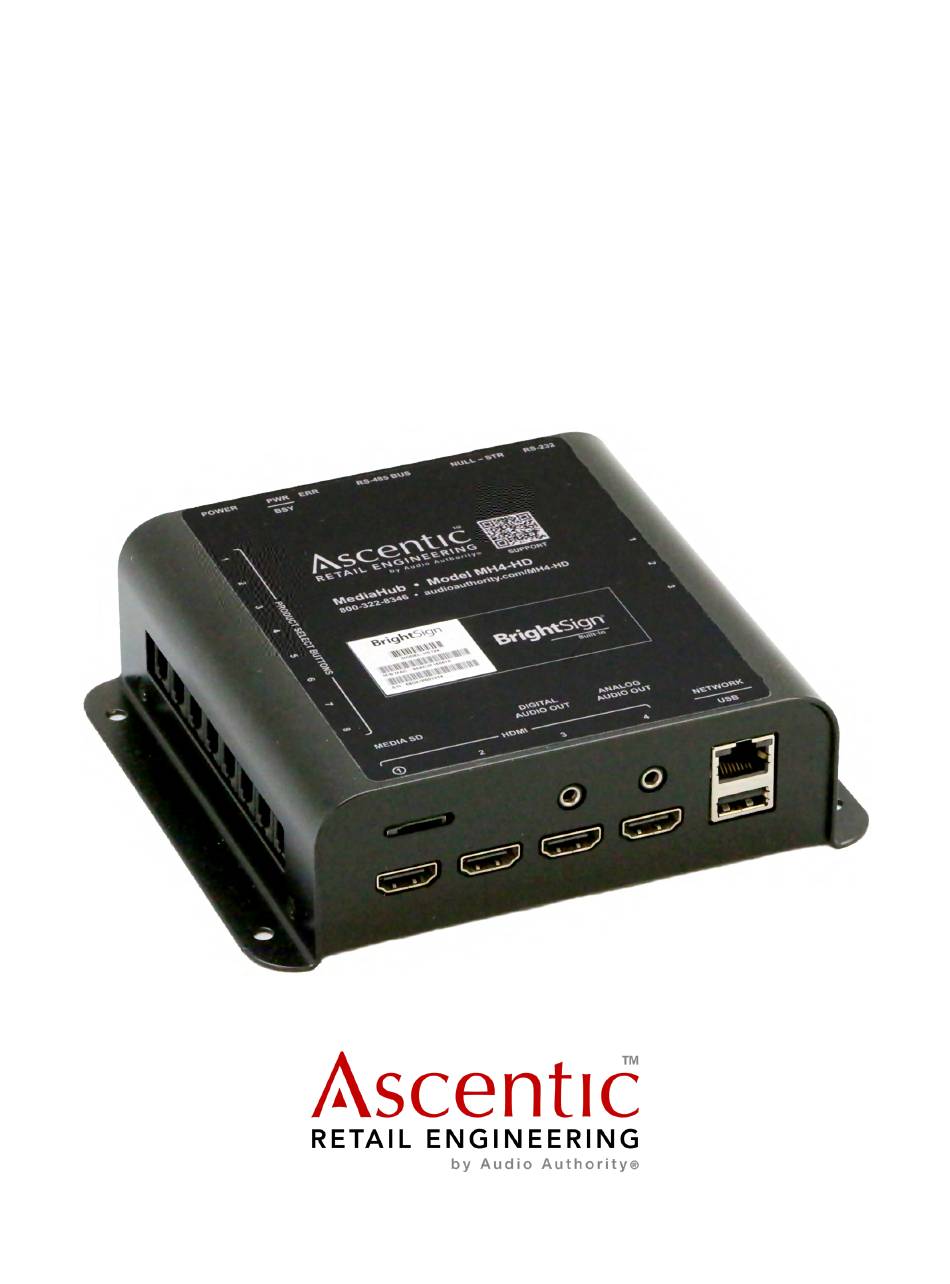

- Page 1 User Manual MH4 MediaHub Audio-Video Switching and Distribution Models Include: MH4-HD and MH4-HS...
- Page 2 Introduction The MH4-HD, and HS MediaHubs combine interactivity with audio switching and distribution. In addition to audio, this video-oriented player offers multiple video sinks, and acts as its own 1:4 distribution amplifier. Connect up to four HDMI sinks (televisions, soundbars, A-V receivers, etc.) to the player; each output provides identical 1080p video signal, and individual CEC control of the sink.
- Page 3 HDMI Output The MH4-HD HDMI output delivers 1920x1080@60 video via an HDMI cable to HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sink device. Video File Information MPEG-4 encoded videos are supported with maximum video resolution up to 1920x1080@60. Test all files before deployment. See BrightSign specifications for details: www.brightsign.biz/application/files/ Four HDMI Outputs The MH4-HD connects to any device via digital (Toslink...
- Page 4 External Settings (RS-232) Internal Settings Baud rate may be changed via Port BrightAuthor. Baud Rate 115200 Default Baud Rate 115200 Data Bits Data Bits Parity None Parity None Stop Bits Protocol ASCII Stop Bits Send EOL Control Bus Settings (RS-485) Receive EOL Baud Rate 57600...
- Page 5 Installation • Attach the player to a flat surface with the screws provided. • Load programming and media files onto a compatible and properly formatted microSD card. • Connect EasyPlug push-buttons, touch panels or touch screen. • Connect power adapter to AC power, then to the MH4-HD power port. •...
- Page 6 Power Supply: external 12V DC, 5A For a complete list of product specifications and compatible devices please visit www.audioauthority.com/MH4-HD or click this link. Ascentic is a trademark of Audio Authority Corp. 2048 Mercer Road, Lexington, Kentucky 40511-1071 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-183 www.audioauthority.com •...
