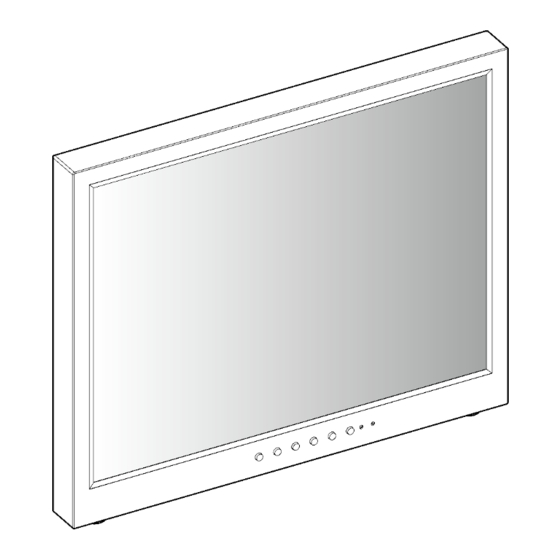

- Page 1 [ QUICK MANUAL ] <MANUAL DOWNLOAD> PREMIUM NORMAL ASPECT RATIO SERIES < For more detail, please scan the above QR code or download user manual in our Website as below.> www.oickorea.com> SUPPORT > DOWNLOAD By Model name.
- Page 2 <Installation and User's Guide> [ QUICK MANUAL - PARTS ] LCD Monitor User Manual Power Cable Adapter Remote Controller Battery Trigger Cable...
- Page 3 [ QUICK MANUAL – KEY BUTTON ] OSD Key Function MENU Activate the menu function / Exit from the menu SOURCE / ▼ Input source menu / Source selection(move down from OSD menu) AUTO / ▲ Auto-fit screen with PC-RGB input / move up from OSD menu ◀(VOL) Decrease the level of volume and move the previous menu (VOL)▶...
- Page 4 [ QUICK MANUAL - CONNECTION ] <BOTTOM> ① ② ③ ④ ⑤ ⑥ <SIDE> ⑦ ⑧ ⑨ ⑩ DC 12V DC adapter input ① AUDIO(VIDEO-1) Stereo audio input for VIDEO-1 ② AUDIO(VIDEO-2) Stereo audio input for VIDEO-2 ③ VIDEO-1 IN/OUT VIDEO-1 signal input/output ④...
-
Page 5: Scan Mode
[ QUICK MANUAL – REMOTE CONTROLLER ] POWER Power On or Off MUTE Turn on or off the speaker VIDEO1/CVBS1 Not functional VIDEO2/CVBS2 Not functional S-VIDEO Not functional Select VGA signal AUTO Auto adjustment of VGA source COLOR TEMP Select color temperature of screen Select DVI signal HDMI Select HDMI signal... - Page 6 [ QUICK MANUAL - TROUBLESHOOTING ] * When the following troubles are occurred, follow the trouble shooting. Before contacting service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3.
- Page 8 OIC KOREA Co., Ltd.(Headquater/Factory) 5F, OIC Korea B/D, 12, Annam-Ro 369beon-Gil, Bupyeong-Gu, Incheon, 21312, Korea Tel. +82-32-719-7590 / Fax. +82-32-719-7591 Email: sales@oickorea.com http://www.oickorea.com...
