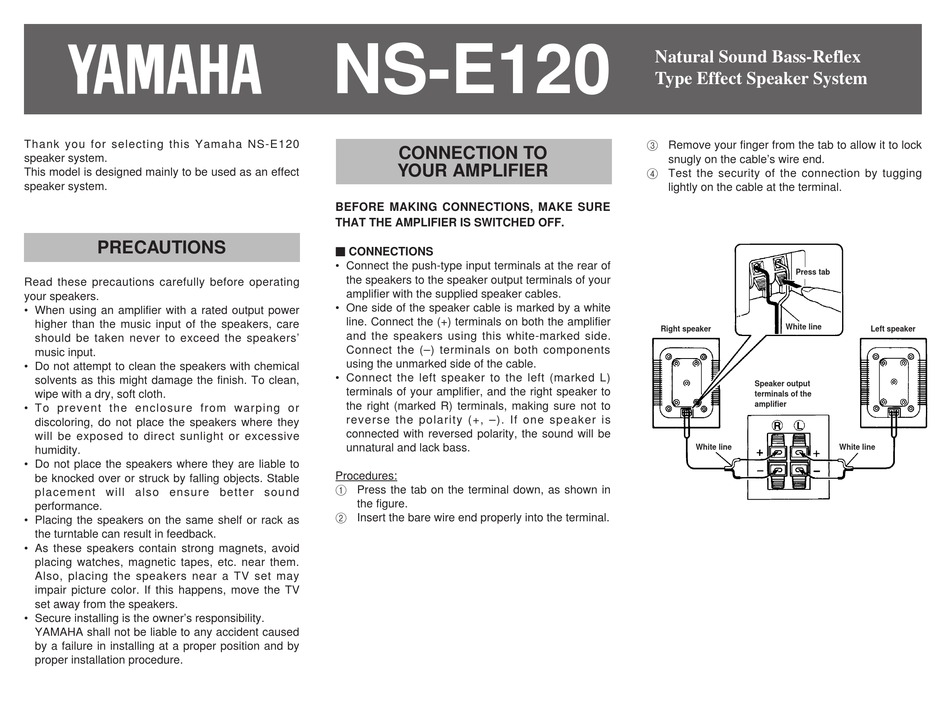

Yamaha NS-E120 User Manual

Thank you for selecting this Yamaha NS-E120
speaker system.
This model is designed mainly to be used as an effect
speaker system.
PRECAUTIONS
Read these precautions carefully before operating
your speakers.
• When using an amplifier with a rated output power
higher than the music input of the speakers, care
should be taken never to exceed the speakers'
music input.
• Do not attempt to clean the speakers with chemical
solvents as this might damage the finish. To clean,
wipe with a dry, soft cloth.
• To prevent the enclosure from warping or
discoloring, do not place the speakers where they
will be exposed to direct sunlight or excessive
humidity.
• Do not place the speakers where they are liable to
be knocked over or struck by falling objects. Stable
placement will also ensure better sound
performance.
• Placing the speakers on the same shelf or rack as
the turntable can result in feedback.
• As these speakers contain strong magnets, avoid
placing watches, magnetic tapes, etc. near them.
Also, placing the speakers near a TV set may
impair picture color. If this happens, move the TV
set away from the speakers.
• Secure installing is the owner's responsibility.
YAMAHA shall not be liable to any accident caused
by a failure in installing at a proper position and by
proper installation procedure.
NS-E120
CONNECTION TO
YOUR AMPLIFIER
BEFORE MAKING CONNECTIONS, MAKE SURE
THAT THE AMPLIFIER IS SWITCHED OFF.
CONNECTIONS
• Connect the push-type input terminals at the rear of
the speakers to the speaker output terminals of your
amplifier with the supplied speaker cables.
• One side of the speaker cable is marked by a white
line. Connect the (+) terminals on both the amplifier
and the speakers using this white-marked side.
Connect the (–) terminals on both components
using the unmarked side of the cable.
• Connect the left speaker to the left (marked L)
terminals of your amplifier, and the right speaker to
the right (marked R) terminals, making sure not to
reverse the polarity (+, –). If one speaker is
connected with reversed polarity, the sound will be
unnatural and lack bass.
Procedures:
1 Press the tab on the terminal down, as shown in
the figure.
2 Insert the bare wire end properly into the terminal.
Natural Sound Bass-Reflex
Type Effect Speaker System
3 Remove your finger from the tab to allow it to lock
snugly on the cable's wire end.
4 Test the security of the connection by tugging
lightly on the cable at the terminal.
Press tab
White line
Right speaker
Speaker output
terminals of the
amplifier
White line
Left speaker
White line
