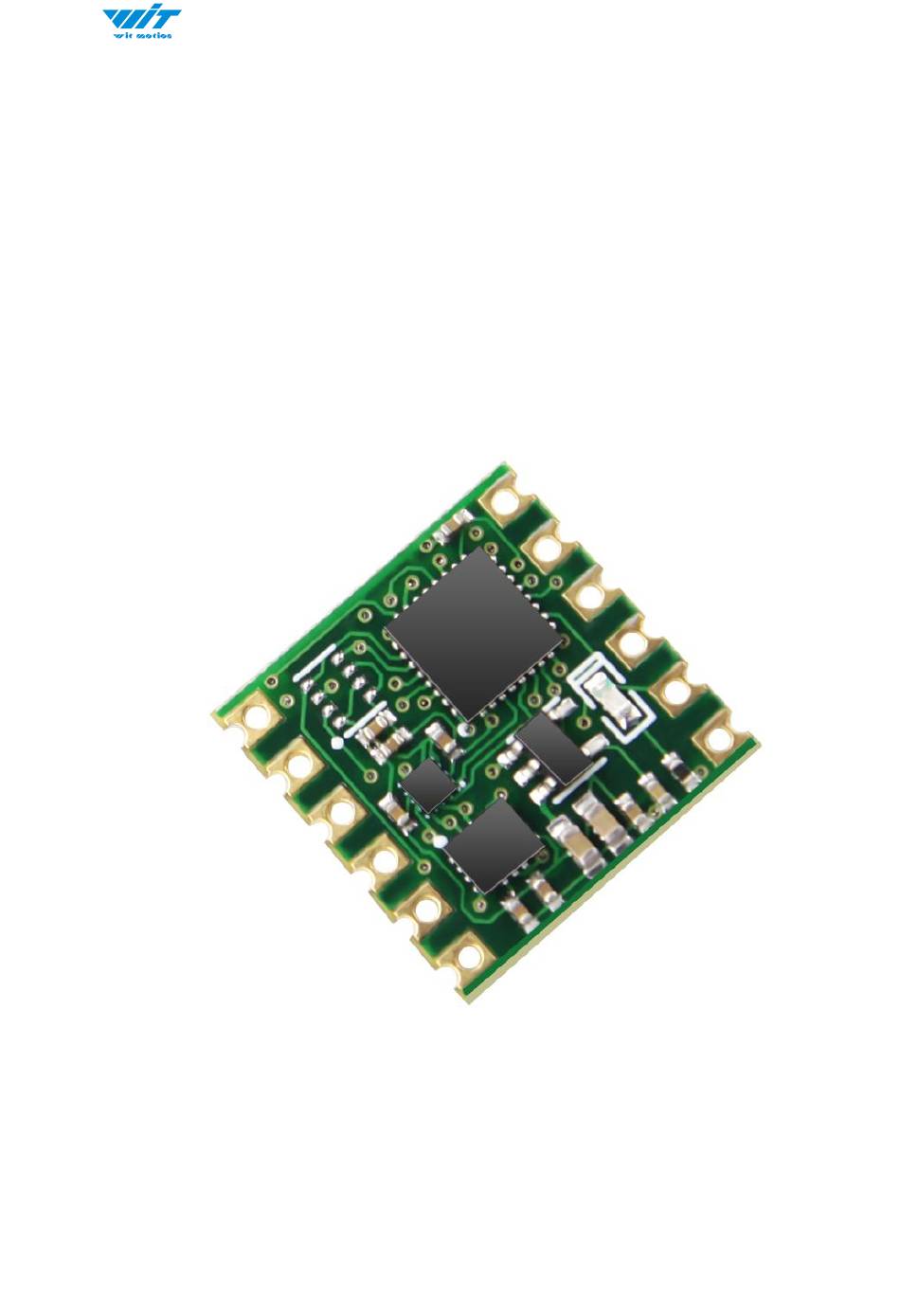

- Page 1 USER MANUAL WT901 Inclinometer Sensor WT901 | manual v0513 | http://wiki.wit-motion.com/english - 1 -...
-
Page 2: Tutorial Link
Technical Support Contact Info Application ● AGV Truck ● Platform Stability ● Auto Safety System ● 3D Virtual Reality ● Industrial Control ● Robot ● Car Navigation ● UAV ● Truck-mounted Satellite Antenna Equipment WT901 | manual v0513 | http://wiki.wit-motion.com/english - 2 -... -
Page 3: Table Of Contents
2.4.3 Baud Rate ..................- 22 - 2.4.4 Data Recording ................- 23 - 2.4.5 Data Playback .................. - 25 - 2.4.6 Standby and Wake Up ..............- 27 - 2.4.7 Placement Direction ..............- 28 - WT901 | manual v0513 | http://wiki.wit-motion.com/english - 3 -... - Page 4 4.3 Raspberry pi ....................- 44 - 4.4 C# ........................- 44 - 4.5 C++ ......................... - 45 - 4.6 Matlab ......................- 45 - 5 IIC Connection ....................... - 46 - WT901 | manual v0513 | http://wiki.wit-motion.com/english - 4 -...
-
Page 5: Introduction
Introduction The WT901 is a multi-sensor device detecting acceleration, angular velocity, angle as well as magnetic filed. The small outline makes it perfectly suitable for industrial retrofit applications such as condition monitoring and predictive maintenance. Configuring the device enables the customer to address a broad variety of use cases by interpreting the sensor data by smart algorithms. -
Page 6: Warning Statement
For proper instrument grounding: use WITMOTION with its original factory-made cable or accessories. For secondary developing project or integration: use WITMOTION with its compiled sample code. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 6 -... -
Page 7: Use Instructions With Pc
Link to WT901’s demo video 2.1.1 Serial Connection Step 1. Connect the sensor with a serial converter PIN Connection: VCC - TX - RX - GND - GND (When connecting with computer, VCC-5V is recommended.) WT901 | manual v0513 | http://wiki.wit-motion.com/english - 7 -... - Page 8 Step 4. Open the software(Minimu.exe) Data will appear after auto-search finishes Notice: If not successful, please operate manually Choose the com port and baud rate 9600, data will be shown on the software. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 8 -...
-
Page 9: Software Introduction
For manufacturer internal test only Auto-search Auto searching the sensor Port Com port selection Baud Baud rate selection Type Fixed setting as Normal for WT901 Open Open com port Close Close com port WT901 | manual v0513 | http://wiki.wit-motion.com/english - 9 -... -
Page 10: Menu Of Configuration
Menu of Configuration Menu of Configuration Button Function Read Config Reading the current configuration Lock Lock the sensor Unlock Unlock the sensor Calibrate Time Calibration time of chip Save Config Save configuration WT901 | manual v0513 | http://wiki.wit-motion.com/english - 10 -... - Page 11 (only for sensor built-in barometer, including WT901B, WTGAHRS2, WTHARS1, HWT901B) Reset Z-axis Angle Reset Z-axis angle to 0 degree, only available for WT901 in 6-axis algorithm Angle Reference Setting current angle as 0 degree Gyro Auto Calibrate Auto-calibration of gyroscope WT901 | manual v0513 | http://wiki.wit-motion.com/english...
- Page 12 WTGAHRS2, WT901B, etc Location Latitude&Longitude data output, only for GPS IMU series, such as WTGAHRS1, WTGAHRS2 PDOP Ground velocity data output, only for GPS IMU series, such as WTGAHRS1, WTGAHRS2 GPS IMU WT901 | manual v0513 | http://wiki.wit-motion.com/english - 12 -...
- Page 13 Menu of Port D0 Model Extended port D0 D1 Model Extended port D1 D2 Model Extended port D2 D3 Model Extended port D3 Pulse width Pulse width of PWM Cycle Cycle of PWM WT901 | manual v0513 | http://wiki.wit-motion.com/english - 13 -...
-
Page 14: Calibration
After calibration, the measurement will be accurate. Methods: Step 1. Keep the module horizontally stationary Step 2. Click the accelerometer calibration Step 3. Click the “Start calibration”and wait for 3 seconds WT901 | manual v0513 | http://wiki.wit-motion.com/english - 14 -... - Page 15 0, 0,1, the X and Y axis Angle is around 0°. After calibration, the x-y axis Angle is accurate. Note: When putting the module horizontal, there is 1g of gravitational acceleration on the Z-axis. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 15 -...
-
Page 16: Magnetic Field Calibration
If you wanna measure the Z-axis, it is required to keep the sensor stay 20CM away from magnetic and iron and other materials Methods: Step 1. Open the Config menu Step 2. Click the magnetic field calibration button. click the “Start calibration” WT901 | manual v0513 | http://wiki.wit-motion.com/english - 16 -... - Page 17 Step 3. Slowly rotate the module 360° around X, Y, Z, 3-axis accordingly WT901 | manual v0513 | http://wiki.wit-motion.com/english - 17 -...
-
Page 18: Gyroscope Automatic Calibration
The gyroscope calibration is to calibrate the angular velocity, and the sensor will calibrate automatically. It is recommended that the automatic calibration of gyroscopes can be inactivated only if the module rotates at a constant speed. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 18 -... -
Page 19: Reset Z-Axis Angle
Z axis backs to 0 degree in the module data bar. 2.3.5 Reset Height to 0 Only available for the module built-in barometer like WT901B, HWT901B, WTGAHRS1, WTGAHRS2. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 19 -... -
Page 20: Configuration
Taking WT901 as an example, the default output of the module is acceleration, angular velocity, angle, and magnetic field. Notice: If choosing the GPS Original, there will be no other data output. -
Page 21: Output Rate
Reminder: If there being many types of return data and low baud rate of communication, the module will automatically reduce the frequency and output at a maximum allowable output rate. The default baud rate is 9600. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 21 -... -
Page 22: Baud Rate
Note: After the change, the module will no longer output data at the original baud rate. The data will be output only when the baud rate that has been changed is selected on the PC software again. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 22 -... -
Page 23: Data Recording
2.4.4 Data Recording Method are as follows: Step 1: Click “Record” and “Begin” Step 2: Click “Stop” WT901 | manual v0513 | http://wiki.wit-motion.com/english - 23 -... - Page 24 Anglex Angley Anglez represents the angles of the three axial directions of x y z, T represents the temperature, and hx hy hz represents the magnetic fields of the three axial directions of x y z respectively. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 24 -...
-
Page 25: Data Playback
Recorded data playback method: Step 1: Disconnect the sensor Step 2: Click “File” Button and then click “Load” Step 3: Choose the original path of software installation and load the Bin file WT901 | manual v0513 | http://wiki.wit-motion.com/english - 25 -... - Page 26 Step 4: Click “Run” and the Binary file will be playback When playback, the rate can be editable. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 26 -...
-
Page 27: Standby And Wake Up
Wake up: The module enters the working state from the standby state. The module defaults to a working state, in the“Config”of the software, click “Sleep”option to enter the sleep state, click“Sleep”again to release sleep. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 27 -... -
Page 28: Placement Direction
Step 1: Rotate the module 90 degrees around the X-axis Step 2: Place the sensor 90 degrees vertically Step 3: Click “Vertical” as install directions on “Config” menu WT901 | manual v0513 | http://wiki.wit-motion.com/english - 28 -... -
Page 29: Bandwidth
1. The higher rate of bandwidth setting will lead to the higher fluctuation in data waveform. Conversely, the lower rate of bandwidth, data will become more fluent. For example: Bandwidth as 20Hz, Output rate as 10Hz. The waveform is very steady. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 29 -... - Page 30 For example, if the bandwidth setting is 20Hz, retrieval rate as 100Hz, there will be 5 repeating data. If you prefer there is no repeating data, it is required to increase the bandwidth more than 100Hz. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 30 -...
-
Page 31: Restore Factory Setting
2 seconds. The LED is off, and the factory reset operation is completed. Command method: connect the WT901 module and the computer through the USB-TTL module, click the setting tab, and click to restore the default. After restoring the factory settings, power on the module again. (This method needs... -
Page 32: Set Iic Address
16 hexadecimal IIC address and click the “change” button. Reminder: The IIC address of the module will not be changed immediately, and it will take effect when the module restart. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 32 -... -
Page 33: Set Extended Port
2.4.11 Set Extended Port The WT901 module has 4 multiple function extended ports, which can be set to different functions according to the need. Set extended port only when the module connects to the PC software successfully. The extended port supports analog input mode, digital input mode, digital output mode, PWM output mode. -
Page 34: 6-Axis/ 9-Axis Algorithm
9-axis algorithm: Z-axis angle is mainly calculated and analyzed based on the magnetic field. Z-axis angle will have few drift. The default algorithm of WT901 is 9-axis. If there is magnetic field interference around installed environment, it is recommended to switch to 6-axis algorithm to detect the angle. -
Page 35: Set Alarm Status
10 ° or less than -10 °, the corresponding port will output high level (3.3V). Name Function Output X﹢alarm status Output X- alarm status Output Y﹢alarm status Output Y- alarm status WT901 | manual v0513 | http://wiki.wit-motion.com/english - 35 -... -
Page 36: Use Instructions With Android Phone
Use Instructions with Android Phone For APP configuration introduction, please referring to the Chapter 2.2 APP Installation Install the APK file, give permission of Location and Storage Link to download Android APP WT901 | manual v0513 | http://wiki.wit-motion.com/english - 36 -... -
Page 37: Hardware Preparation
Hardware Preparation Connecting with Android smartphone requires a serial cable and a Type-C converter or OTG converter according to phone’s interface. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 37 -... -
Page 38: Connection
“Choose an APP for the USB device”, which means that the device has been detected. Choose “WitMotion”, “ JUST ONCE” or “ALWAYS” is optional. 2. Only CH340 driver can be detected via WitMotion APP. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 38 -... - Page 39 Step 3. Open APP and choose “9-axis Series” as sensor series WT901 | manual v0513 | http://wiki.wit-motion.com/english - 39 -...
- Page 40 Step 4. Select the baud rate- 9600. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 40 -...
- Page 41 After selection and wait for a few seconds, the data will show automatically. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 41 -...
-
Page 42: Calibration
Step 1. Keep the module horizontally stationary Step 2. Click the “Calibration” menu Step 3. Click the “Acceleration Calibration” and wait for 3 seconds Step 5. Judge the result--confirm if there is 1g on Z-axis acceleration WT901 | manual v0513 | http://wiki.wit-motion.com/english - 42 -... -
Page 43: Magnetic Field Calibration
Step 4. After rotation, click “Magnetic Calibration Finish” Check the result: The Z-axis angle will have fewer drift than before. Notice: If not successful, please stay away from the objective that can create magnetic field interference. WT901 | manual v0513 | http://wiki.wit-motion.com/english - 43 -... -
Page 44: Mcu Connection
Link to sample code instructions demo Notice: There is no sample code provided for Linux or Python system at present. Arduino Download link Arduino UNO3 Demo Link STM32 Download link Raspberry pi Tutorial link DEMO link WT901 | manual v0513 | http://wiki.wit-motion.com/english - 44 -... -
Page 45: Matlab
DEMO link Matlab Receive Sample Code Dataplot DEMO WT901 | manual v0513 | http://wiki.wit-motion.com/english - 45 -... -
Page 46: Iic Connection
IIC Connection The WT901 module can be connected to the MCU through the IIC interface. The connection method is shown in the figure below. Note: 1. In order to connect multiple modules on the IIC bus, the IIC bus of the module is an open-drain output.
