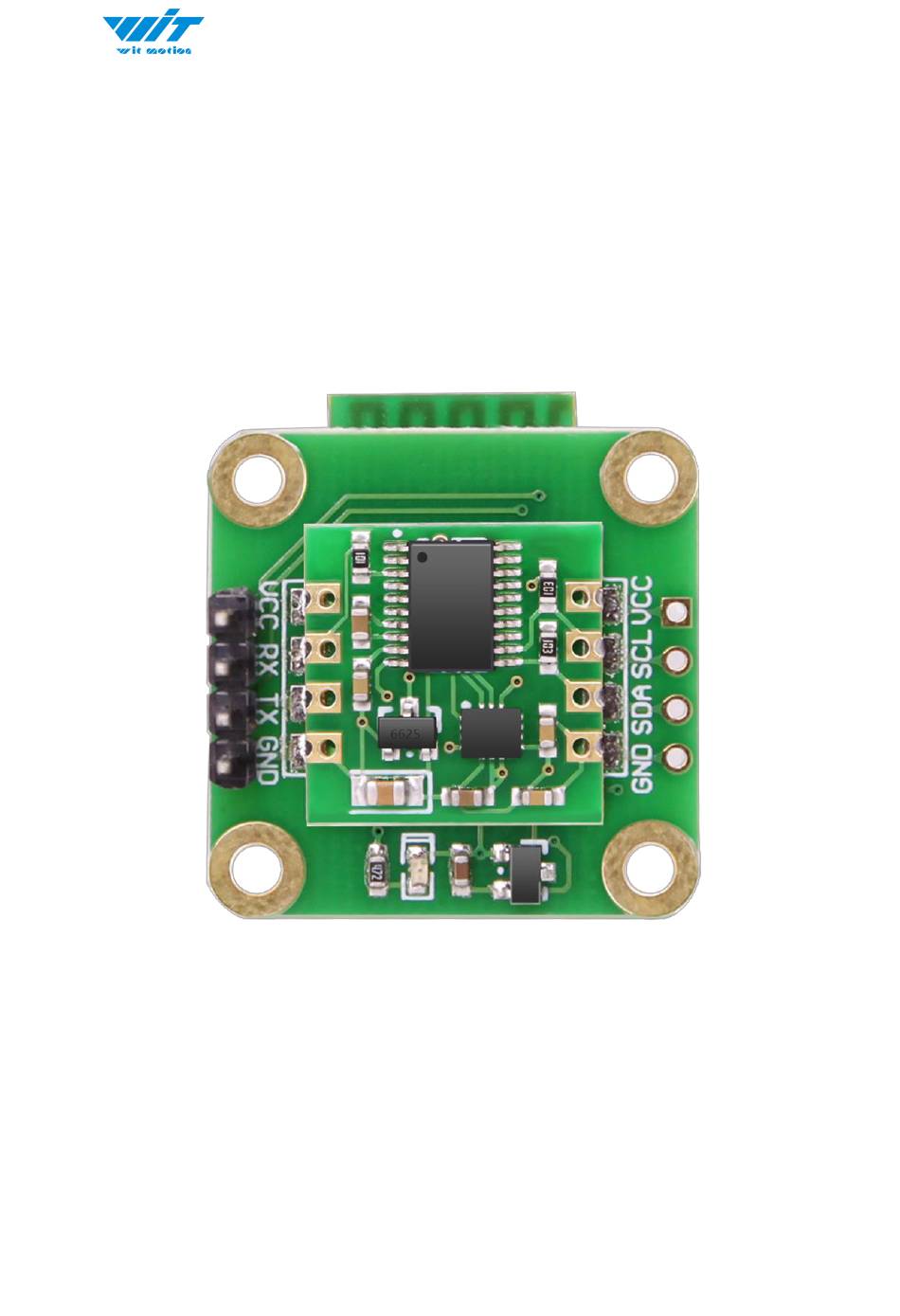

- Page 1 USER MANUAL BWT61 Bluetooth 2.0 Inclinometer Sensor BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 1 -...
-
Page 2: Tutorial Link
Technical Support Contact Info Application ● AGV Truck ● Platform Stability ● Auto Safety System ● 3D Virtual Reality ● Industrial Control ● Robot ● Car Navigation ● UAV ● Truck-mounted Satellite Antenna Equipment BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 2 -... -
Page 3: Table Of Contents
2.4.3 Data Playback ..............- 20 - 2.4.4 Standby and Wake Up ..........- 23 - 2.4.5 Placement Direction ............ - 23 - 2.4.6 Static Threshold ............- 24 - 2.4.7 Bandwidth ................ - 25 - BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 3 -... - Page 4 5.2 STM32 ..................- 37 - 5.3 Raspberry pi ................- 37 - 5.4 C# ....................- 37 - 5.5 C++ ....................- 38 - 5.6 Matlab ..................- 38 - BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 4 -...
-
Page 5: Introduction
A sensor measures 3-axis angle, angular velocity, acceleration. Its strength lies in the algorithm which can calculate three-axis angle accurately. BWT61 is an CE standard accelerometer. It is employed where the highest measurement accuracy is required. BWT61 offers several advantages over competing sensor: •... -
Page 6: Warning Statement
WITMOTION BLUETOOTH sensor’s baud rate is fixed. For secondary developing project or integration: use WITMOTION with its compiled sample code LED Status Status Remark Flashing working Flashing pairing process Blue Keeping still successful pairing BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 6 -... -
Page 7: Use Instructions With Pc
BWT61 Playlist 2.1.1 Serial Connection Step 1. Connect the sensor with a serial converter PIN Connection: VCC - TX - RX - GND - GND (When connecting with computer, VCC-5V is recommended.) BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 7 -... - Page 8 Step 4. Open the software(Minimu.exe) Data will appear after auto-search finishes Notice: If not successful, please operate manually Choose the com port and baud rate 115200, data will be shown on the software. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 8 -...
-
Page 9: Usb-Hid Connection
Step 2. Power on the sensor after red light of HID adapter flashes Step 3. Wait till the sensor's blue LED light keeps on--pairing succeeds Step 4. Open the software, Minimu.exe Step 5. Data will appear once the auto-search finishes. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 9 -... -
Page 10: Pc's Bluetooth Connection
Step 4. Confirm the outgoing com port on “More Bluetooth Options” page Step 5. Open software (Minimu.exe) and choose the correct com port Step 6. Data will appear once the automatic search finishes BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 10 -... -
Page 11: Software Introduction
Firmware update Option for firmware update About Minimu Info about Minimu.exe Factory test For manufacturer internal test only Auto-search Auto searching the sensor Port Com port selection Baud Baud rate selection BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 11 -... - Page 12 Type Fixed setting as JY61 for BWT61 Open Open com port Close Close com port Acc Calibrate Acceleration calibration BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 12 -...
-
Page 13: Menu Of Configuration
Sleep function, not available for Bluetooth sensor series Baudrate 115200(100Hz) (Fixed)/ 9600(20Hz) Mode Serial / IIC(only for modules) Direction Vertical or horizontal installation Static threshold Static threshold for angular velocity Bandwidth Option for bandwidth range BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 13 -... - Page 14 Menu of Data Button Function Time Real time Acceleration Data for Acceleration Angular Velocity Data for Angular Velocity Angle Data for Angle BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 14 -...
-
Page 15: Calibration
Calibration Preparation: Make sure the sensor is “Online”. Calibration on PC software： It is required to calibrate for the first time usage. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 15 -... -
Page 16: Accelerometer Calibration
0, 0,1, the X and Y axis Angle is around 0 °. After calibration, the x-y axis Angle is accurate. Note: when putting the module horizontal, there is one G of gravitational acceleration on the Z-axis. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 16 -... -
Page 17: Reset Z-Axis Angle
Calibration methods as follow: firstly keep the module static, click the “Config” open the configuration bar and then click “Reset Z-axis Angle” option, you will see the the angle of the Z axis backs to 0 degree in the module data bar. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 17 -... -
Page 18: Configuration
The beginning of the file has the value corresponding to the data. For raw data analysis, please kindly refer to the register list shown on the datasheet of the corresponding model. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 18 -... - Page 19 It is highly recommended that data can be pasted to a Excel file. In this way, all data will be shown in order. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 19 -...
-
Page 20: Data Playback
Recorded data playback method: Step 1: Disconnect the sensor Step 2: Click “File” Button and then click “Load” BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 20 -... - Page 21 Step 3: Choose the original path of software installation and load the Bin file BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 21 -...
- Page 22 Step 4: Click “Run” and the Binary file will be playback When playback, the rate can be editable. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 22 -...
-
Page 23: Standby And Wake Up
Step 1: Rotate the module 90 degrees around the X-axis Step 2: Place the sensor 90 degrees vertically Step 3: Click “Vertical” as install directions on “Config” menu BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 23 -... -
Page 24: Static Threshold
0. Setting method: Click the "Still Threshold" option in the configuration bar of the PC software to set the threshold. The module default is 0.122°/ s. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 24 -... -
Page 25: Bandwidth
1. The higher rate of bandwidth setting will lead to the higher fluctuation in data waveform. Conversely, the lower rate of bandwidth, data will become more fluent. For example: Bandwidth as 20Hz, Output rate as 5Hz. The waveform is very steady. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 25 -... - Page 26 For example, if the bandwidth setting is 20Hz, retrieval rate as 100Hz, there will be 5 repeating data. If you prefer there is no repeating data, it is required to increase the bandwidth more than 100Hz. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 26 -...
-
Page 27: Use Instructions With Android Phone
Use Instructions with Android Phone For APP configuration introduction, please referring to the Chapter 2.2 APP Installation Install the APK file, give permission of Location and Storage Link to download Android APP BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 27 -... - Page 28 Android (6.0) mobile phone is paired with a Bluetooth device, positioning must be allowed when using Bluetooth at the same time. 2. After turning on Bluetooth, it takes about one minute to search for authorization to find Bluetooth. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 28 -...
-
Page 29: Connection
Step 1. Install the APK file, give permission of Location and Storage Step 2. Open APP and choose “6-axis Series” Step 3. Power on the Bluetooth sensor BWT61 and the Bluetooth of the device. BWT61 | manual v0707 | http://wiki.wit-motion.com/english... - Page 30 Step 4. Search the Bluetooth connection in the phone, the name of which was ”HC -06 ", password is 1234. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 30 -...
- Page 31 Step 5. When pairing is done, the blue LED light of sensor will remain still. After a few seconds, the data will show automatically. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 31 -...
-
Page 32: Phone's Bluetooth Pairing
(First pairing the device will be recognize as mac address and will be shown as HC-06 after successful pairing.) Step 4. Click the “MAC address” device and input the password “1234” BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 32 -... - Page 33 Step 6. Click “Scan” and select the paired Bluetooth device “HC-06” (No need to input password) Step 7. The Blue LED light of sensor will remain still. Connection with APP is successful. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 33 -...
-
Page 34: Calibration
Step 1. Keep the module horizontally stationary Step 2. Click the “Calibration” menu Step 3. Click the “Acceleration Calibration” and wait for 3 seconds Step 4. Judge the result--confirm if there is 1g on Z-axis acceleration BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 34 -... -
Page 35: Reset Z-Axis Angle
Step 2. Click the “Calibration” menu Step 3. Click the “Z axis return to zero” and wait for 3 seconds Step 4. Check the data of “Angle Z” to see if it is 0°. BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 35 -... -
Page 36: Multiple Connection
1. The multiple-connection will require the USB-HID 2.0 adapter. The USB-HID adapter is driver-free design. 2. Each BWT61 Bluetooth 2.0 sensor can only pair with 1 USB-HID adapter. 3. The multiple-connection can reach up to 8pcs. BWT61 | manual v0707 | http://wiki.wit-motion.com/english... -
Page 37: Mcu Connection
Link to sample code instructions demo Notice: There is no sample code provided for Linux or Python system at present. Arduino Download link Arduino UNO3 Demo Link STM32 Download link Raspberry pi Tutorial link DEMO link BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 37 -... -
Page 38: Matlab
DEMO link Matlab Receive Sample Code Dataplot DEMO BWT61 | manual v0707 | http://wiki.wit-motion.com/english - 38 -...
