FORENO Chrome BF94CH Installation

Floor Mounted Bath Filler
Chrome BF94CH
9 421027 598256
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Install as supplied.
Unequal Low systems
Equal Low systems

INSTALLATION

FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE.
THOROUGHLY FLUSH ALL PIPES TO ELIMINATE ANY REMAINING DIRT AND
RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO MAY
VOID THE WARRANTY.

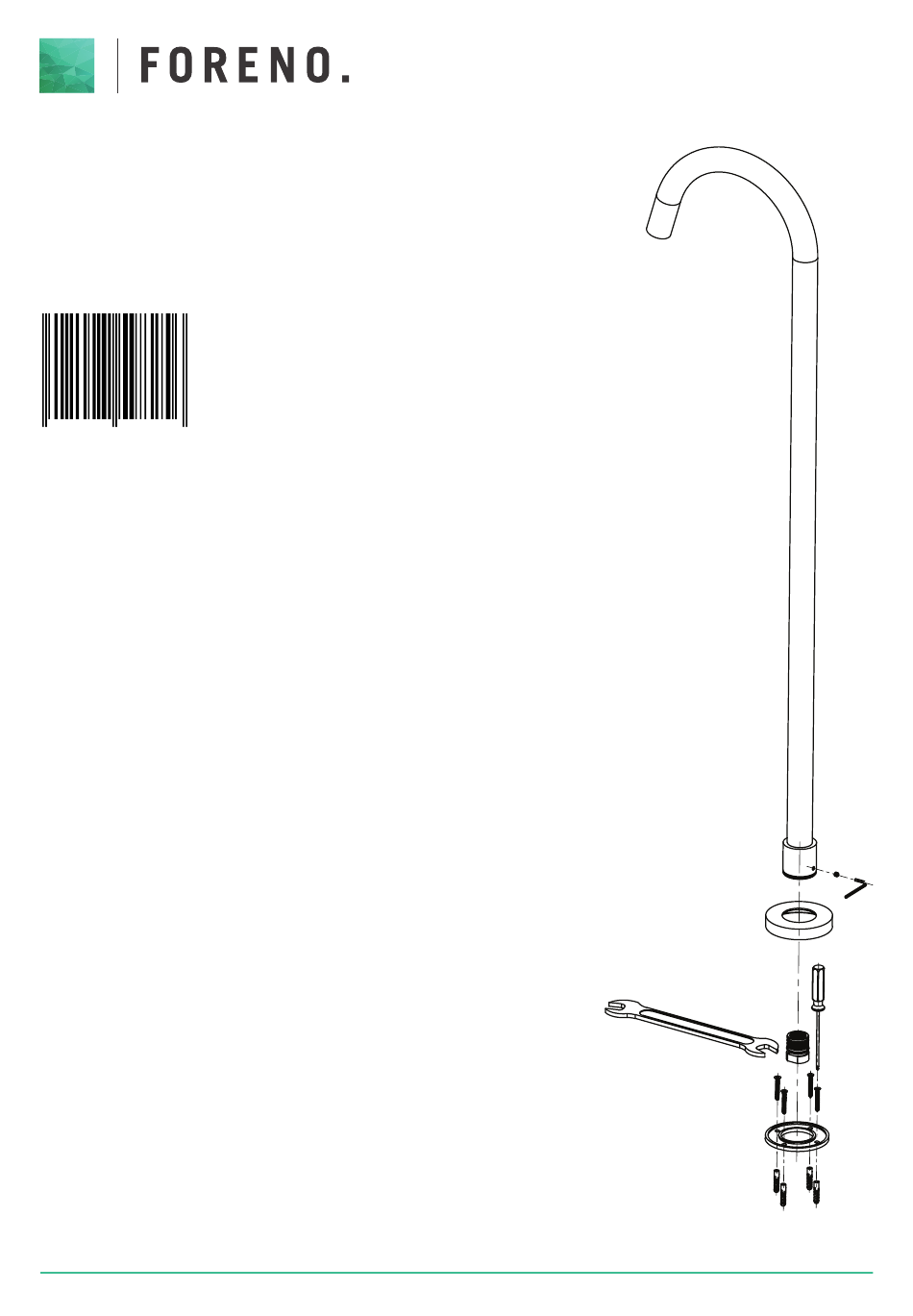

1. Unscrew brass base plate (A) from the cover plate (B).
2. Screw the brass base plate (A) onto base of spout (D) and test fit on floor for
alignment to bath, mark screw holes on floor.
3. Unscrew brass base plate (A) from spout (D), then align base plate to markings on floor
and screw onto the floor using the 4x screws provided.
4. Remove the brass threaded spigot (C) from the base of the spout (D) by
unscrewing the grub screw (E), as shown.
5. Screw the brass spigot (C) onto the water connection in the floor.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
This product is not suitable for this type of water pressure.
This product is not suitable for this type of water pressure.
(D)
(E)
(B)
(C)
(A)
