FORENO AF210 Instructions

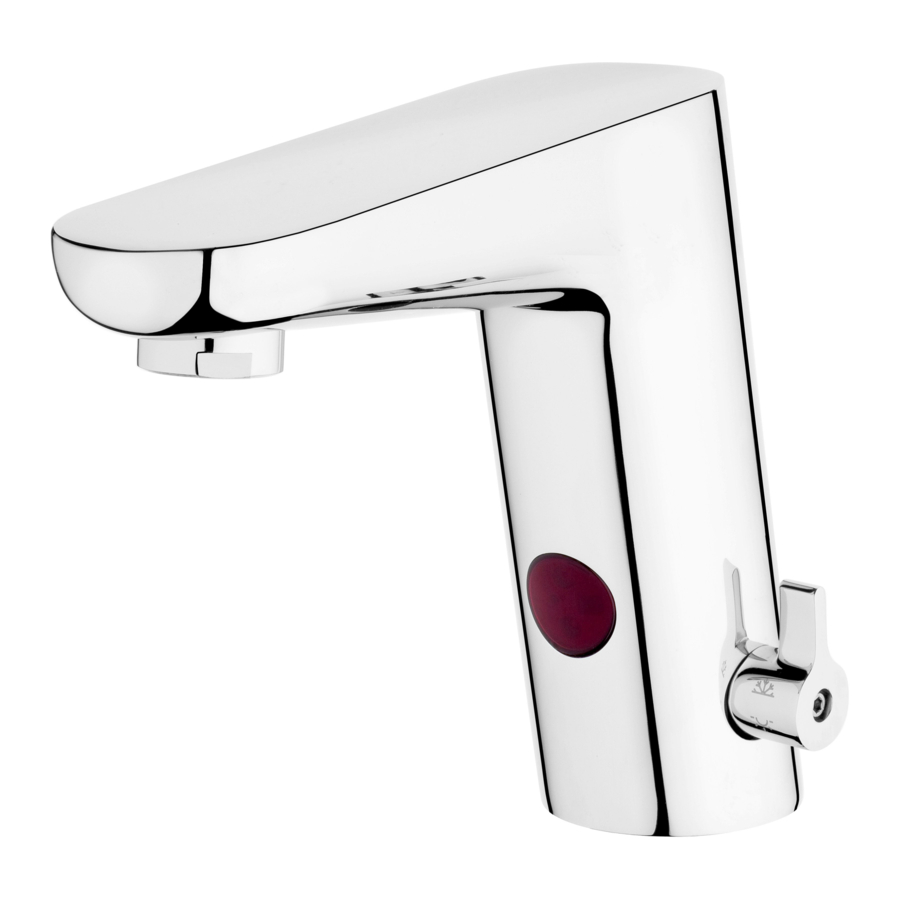

Foreno Hands Free Sensor Mixer
AF210
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Install as supplied.
Unequal Low Systems Not suitable.
Equal Low systems Not suitable.

INSTALLATION

*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
An in-line filter is always recommended on the cold supply to protect ceramics and give longevity to the cartridge.
Important: Please ensure the water system has been flushed before installing the product to prevent damage to
the cartridge.
1. Carefully unscrew /remove under-bench fittings from the body set;
2. Screw the cold/hot flexi-hoses into the bottom of the tap;
3. Position the tap within a 35mm hole on the basin. Place the rubber washer onto the fixing bolt followed by the
under-bench fittings. NB: Ensure the power supply cable is clear of the clamp (do not trap).
4. Screw the fixing nut onto the fixing bolt and tighten.
