DIODE LED DI-1810 Installation Manual

DMX 4-CHANNEL RDM DECODER
SAFETY & WARNINGS
1. Install in accordance with national and local electrical code
regulations.
2. This product is intended to be installed and serviced by a qualified,
licensed electrician.
3. DO NOT connect directly to high voltage power. Install with a
compatible Class 2 constant voltage LED driver (power supply).
4. This product is rated for indoor installation and is not protected
against moisture.
5. Install appropriately rated wire between driver, decoder, and fixture.
When choosing wire, factor in voltage drop, amperage rating, and
type (in-wall rated, etc.) Inadequate wire installation may cause fire.
6. Do not modify or disassemble product beyond instructions or
warranty will be void.

MAXIMUM DAISY-CHAIN DMX DECODERS

A maximum of 10x DMX Decoders may be connected together via
RJ45 DMX Connection Ports. DMX signal may be extended further
by installing a DMX 8-Way Splitter after the 10th DMX Decoder.

QUICK SPECS / MODELS

Input
DI-1810
12 - 24VDC
(also DI-1918)
RDM Support: Yes
Output PWM Frequency: 2KHz
DMX Splitter Compatible: Yes
Environment: Indoor Location
DMX DECODER INSTALLATION GUIDE
Output Max Load
4CH x 5A
12 - 24VDC 4CH x 96W (12V)
4CH x 192W (24V)

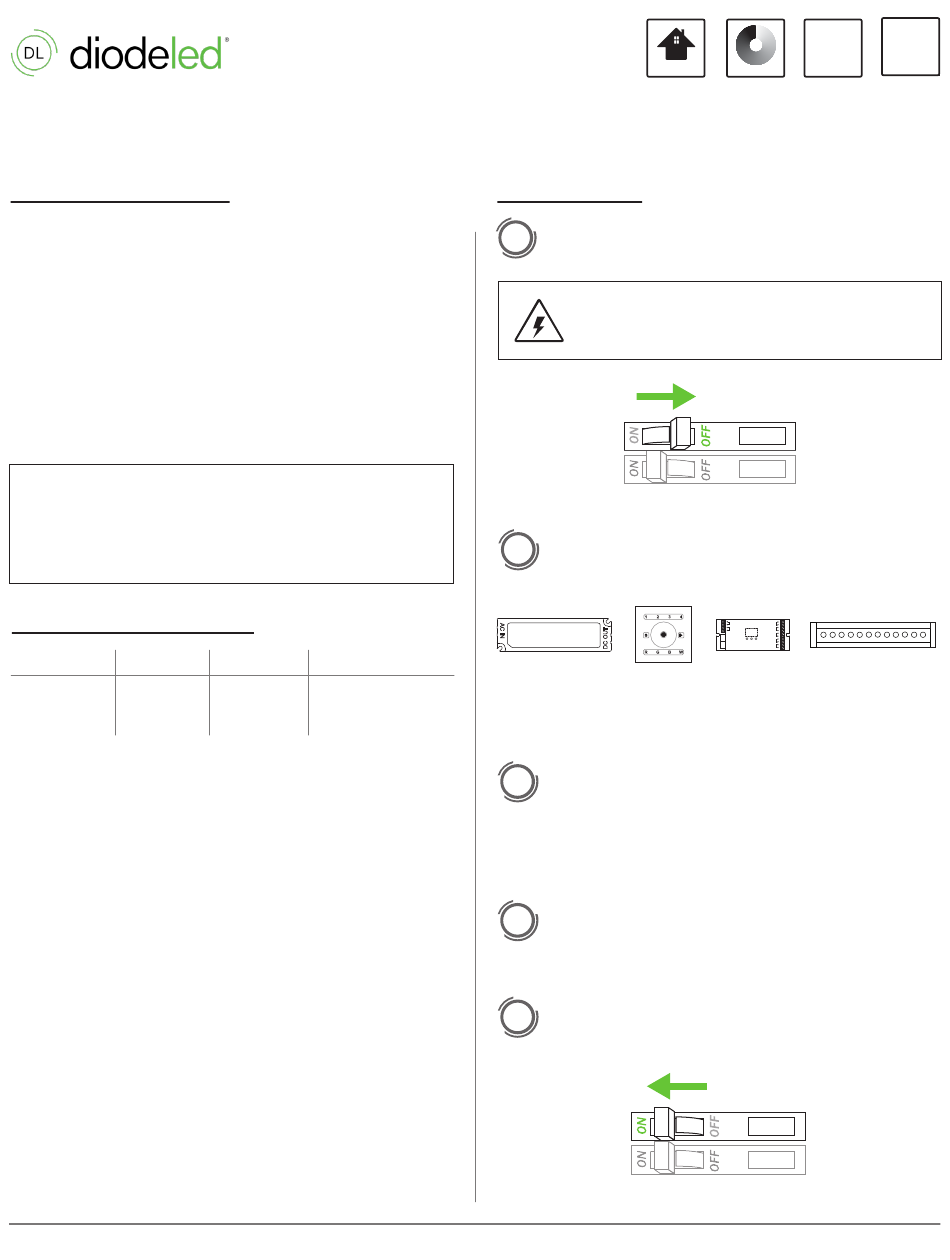

INSTALLATION

1
TURN POWER OFF AT CIRCUIT BREAKER
SHOCK HAZARD! May result in serious injury or death.
Turn power OFF at circuit breaker prior to installalation.
2
DETERMINE LOCATION TO INSTALL COMPONENTS
1) Driver
CONNECT DECODER TO DRIVER. ATTACH LED
3
LUMINAIRE. ONLY USE COPPER WIRING.
Reference SYSTEM DIAGRAM located further in guide for
visual.
CONNECT DECODER TO DMX CONTROLLER.
4
INSTALL ADDITIONAL COMPONENTS, VERIFY
5
CONNECTIONS, TURN MAIN POWER ON AT
BREAKER.
1 OF 4
12VDC
DRY LOCATION DIMMABLE
INSTALLATION GUIDE
V+
V+
V- CH1 - R
CH2 - G
Data IN
CH3 - B
0-5 0-9 0-9
Data OUT
CH4 - W
2) DMX 3) DMX
Controller Decoder
24VDC
4) Luminaire(s)
IG02162023-6.0
