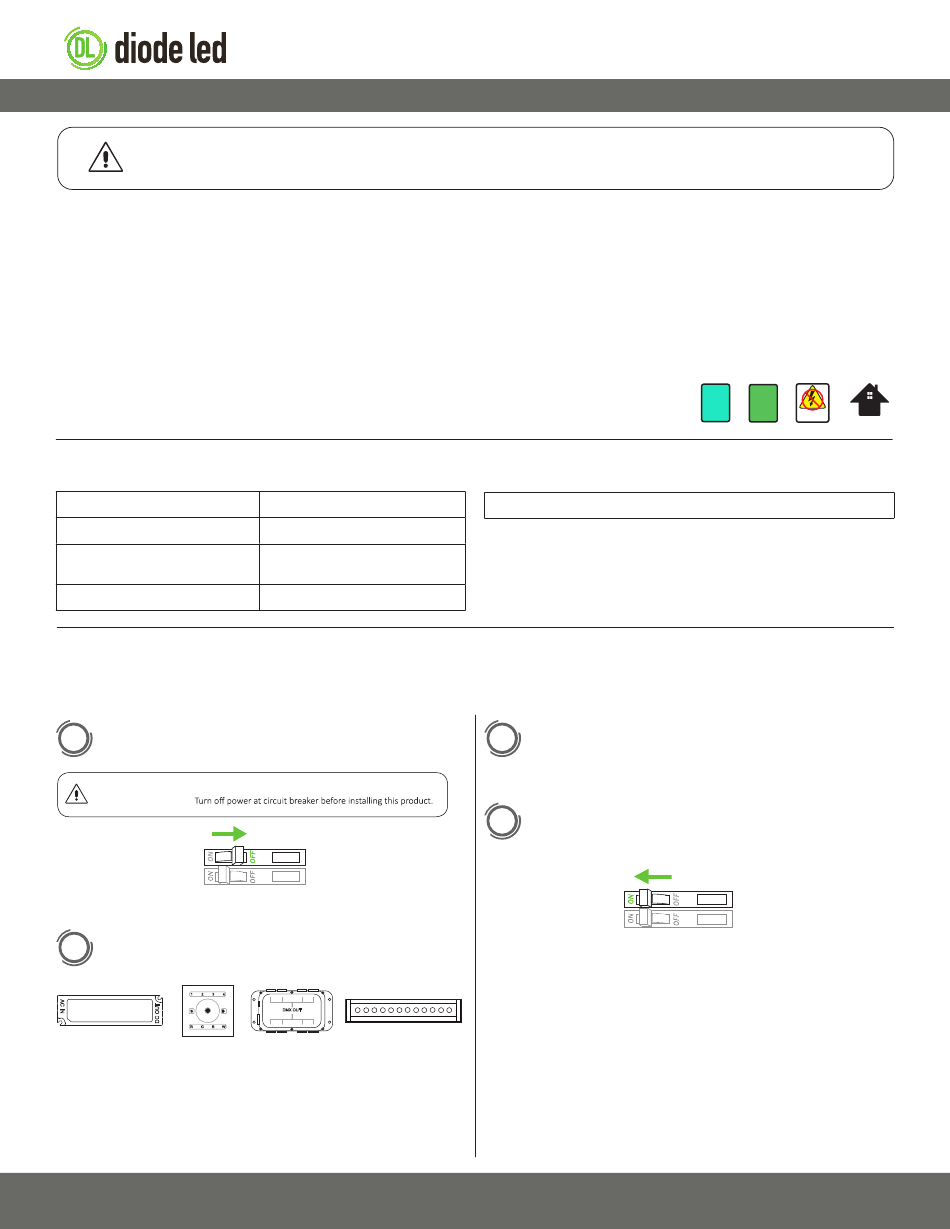

DIODE LED DI-1804 Installation Manual

®
DMX 8-WAY SPLITTER
WARNING
Safety & Warnings
• Install in accordance with the National Electric Code, and local
regulations.
• This product is intended to be installed and serviced by a qualified,
licensed electrician.
• DO NOT connect directly to high voltage power. Install with a compatible
Class 2 constant voltage LED driver (power supply).
• Only install compatible LED drivers and fixtures. Contact technical
support or visit the product page for compatible products.
• This product is rated for indoor installation and is not protected against
moisture.

Quick Specs

Input Signal
Input / Output Voltage
DMX512 Connection Ports
Ambient Temperature †

Installation

Prior to installation, verify all components are a compatible system. Configure and pre-test your LED system prior to permanent installation to ensure all
components are operating correctly. Install in accordance with the NEC and local regulations.
1
Turn OFF High Voltage AC Power at the main breaker.
WARNING
Shock Hazard. May result in serious injury or death.
2
Determine Locations to Install 4 Main Components.
1) Driver 2) DMX
Controller
Determine an accessible location to install a compatible driver between
the main breaker and DMX Splitter. Also, determine locations to install
additional system components such as DMX fixtures, controllers, etc.
info@DiodeLED.com
DO NOT CONNECT DIRECTLY TO HIGH VOLTAGE POWER!
Read all warnings and installation instructions thoroughly.
DMX512
12-24VDC Constant Voltage
Input: (1x) Male XLR-3
Output: (8x) Female XLR-3
-4° ~ 104°F (-20° ~ 40°C)
3) DMX Splitter
4) Fixture(s)
• Proper heat dissipation will prolong the working lifespan of this product.
Install in a well-ventilated area free from explosive gases and vapors.
• Ensure applicable wire is installed between driver, fixture, and any
controls in between. When choosing wire, factor in voltage drop,
amperage rating, and type (in-wall rated, wet location rated, etc.).
Inadequate wire installation could overhead wires, and cause a fire.
• Do not modify or disassemble this product beyond instructions or the
warranty will be void.
Included Models
DI-1804
† Do not install product in an environment outside the listed ambient
temperature.
3
Attach Lighting Load and Driver. Only use copper wiring.
Reference 'Wiring Connections' located further in guide for
visual. Verify a compatible constant voltage driver is installed.
4 Install Additional Components, Verify Connections, and Turn
Main Power ON at Breaker.
If system remains unresponsive or is working improperly, turn OFF
main power at breaker and verify all connections. Review the 'Wiring
Connections', 'Troubleshooting', and DMX installation guides.
1 OF 2
1.877.817.6028
www.DiodeLED.com
INSTALLATION GUIDE
12V 24V
DC DC
DO NOT CONNECT
Dry Location Only
TO HIGH VOLTAGE
IG050819-2.0
