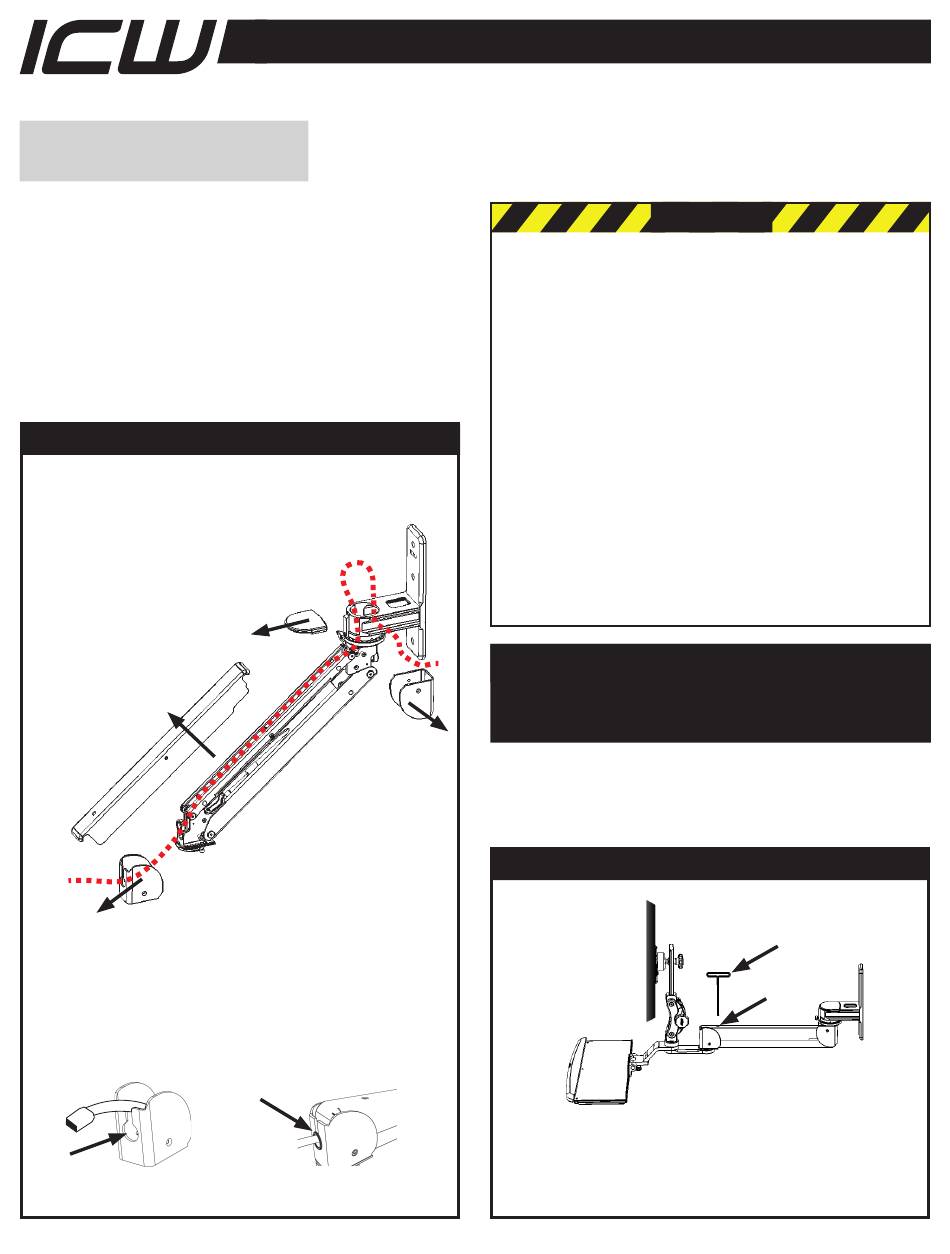

ICWUSA ELITE 5120 Installation

Advertisement

Quick Links

ICWUSA.com, Inc.
 MAXIMUM LOAD CAPACITY:
28 LBS (12.7 KG)

Instructions for All Configurations

Follow instructions on the following pages for
style of mount.
Ceiling Mount.............................................. Page 2
Quicklink ..................................................... Page 2
Pole Mount ................................................. Page 3
Wall & Wall Track Mount ............................. Page 3
Paralink....................................................... Page 4
MANAGE CABLES THROUGH ARM
REMOVE COVERS
• Slide wire port cover off wall ear.
• Place arm in vertical position. Remove top
arm cover by unscrewing the two 6-32 x 1/4"
flathead screws in the center of the
cover using a Phillips screwdriver.
• Remove end covers by
unscrewing the two
10-24 x 3/4" flathead
screws using
a Phillips
screwdriver.
• Feed the first cable through the
• Feed the cable back down through the wire port and
press into the channel of the arm.
• Repeat these steps with other cables.
• Replace covers.
NOTE: CABLES CAN BE DAMAGED IF JOINT IS ROTATED
MORE THAN 360º.
Before reattaching arm covers, slip
cables through end cover ports.
Page 1 of 4
ELITE 5120 INSTALLATION
ICW recommends wood or metal stud mounting only.
RUN CABLES
• Pull cables one at a
time through the arm.
Feed the largest cable first,
allowing enough slack so
the arm turns freely.
wall ear, up through the joint,
and out of the wire port.
Reattach black plastic bushing
around exiting cables.
If you have any questions please call Toll Free 1-800-558-4435
DANGER!
The Elite arm contains high pressure gas
springs. The following cautions MUST be
observed to avoid serious injury.
• Do not attempt to adjust the Elite arm until all
components are mounted (monitor, keyboard, etc.)
• Arm must be completely horizontal (extended)
before adjusting the arm's tension. Failure to do so will
damage the arm and void the warranty.
• NEVER loosen or remove any of the shoulder
bolts. Doing so will cause the arm to immediately
come apart with tremendous force, and could cause
serious injury.
• If equipment requiring AC power is mounted to this unit,
have a certified electrician inspect the installation.
• Failure to install this unit according to these instructions
will void all ICW warranties. If installed incorrectly, ICW
is not liable for any damage or injury caused by the unit.
IMPORTANT
DO NOT use power tools to assemble or
adjust the arm. Use hand tools ONLY.
ADJUST ARM LIFTING CAPACITY--ALL MODELS
Extend the arm straight out as shown before adjusting
the arm's lifting capacity. Be sure all equipment is
mounted on the arm before adjusting. Use the T-handle
provided.
DO NOT USE POWER TOOLS TO ADJUST.
T-Handle
Access to
adjustment
screw
ELITE 5120 INSTALLATION - 5/19/20
