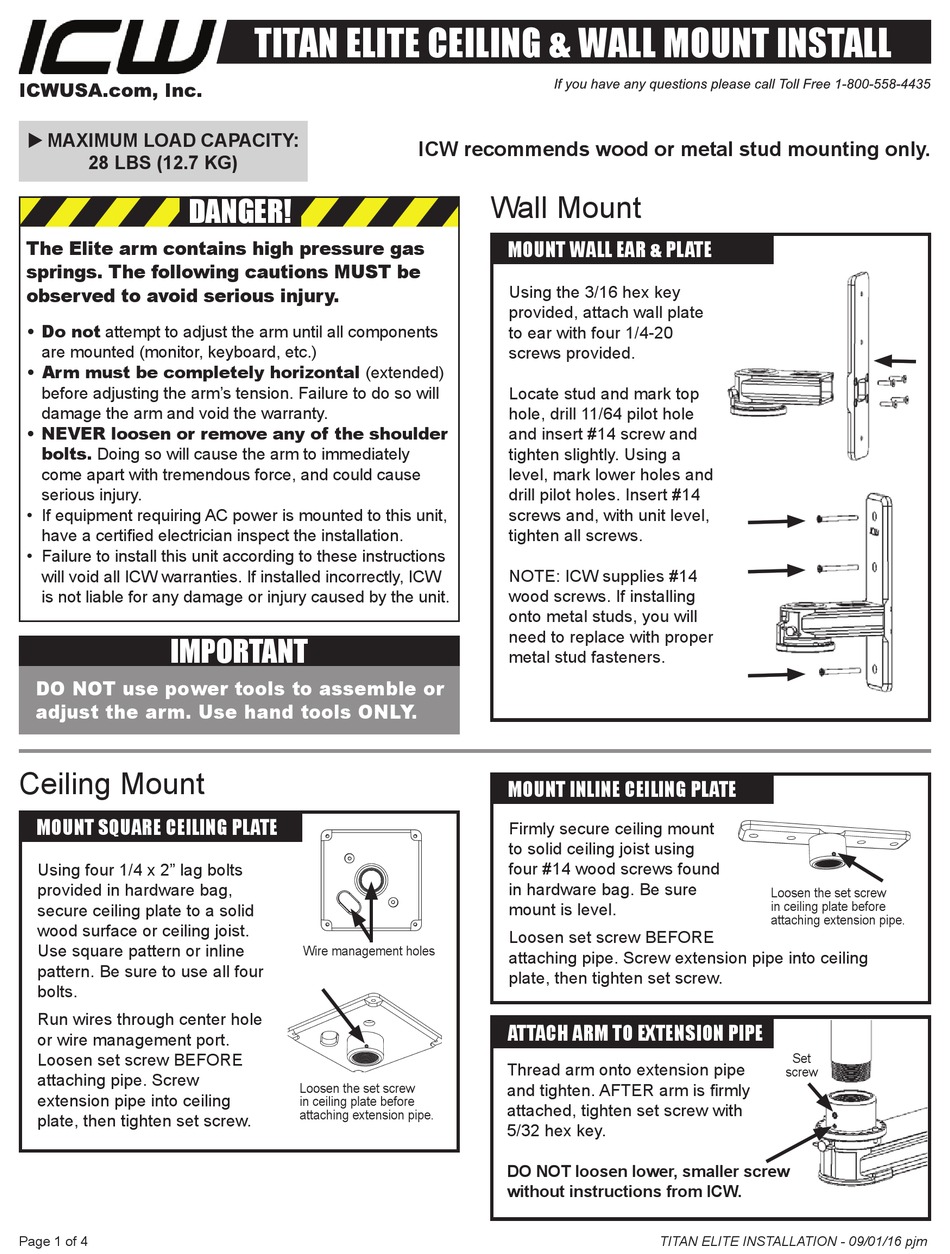

ICWUSA TITAN ELITE Install

 MAXIMUM LOAD CAPACITY:
28 Lbs (12.7 kg)
DANGER!
the elite arm contains high pressure gas
springs. the following cautions MUSt be
observed to avoid serious injury.
• Do not attempt to adjust the arm until all components
are mounted (monitor, keyboard, etc.)
• Arm must be completely horizontal (extended)
before adjusting the arm's tension. Failure to do so will
damage the arm and void the warranty.
• never loosen or remove any of the shoulder
bolts. Doing so will cause the arm to immediately
come apart with tremendous force, and could cause
serious injury.
• If equipment requiring AC power is mounted to this unit,
have a certified electrician inspect the installation.
• Failure to install this unit according to these instructions
will void all ICW warranties. If installed incorrectly, ICW
is not liable for any damage or injury caused by the unit.
IMPORTANT
Do not use power tools to assemble or
adjust the arm. Use hand tools onLY.
Ceiling Mount
MOUNT sQUARE CEILING PLATE
Using four 1/4 x 2" lag bolts
provided in hardware bag,
secure ceiling plate to a solid
wood surface or ceiling joist.
Use square pattern or inline
pattern. Be sure to use all four
bolts.
Run wires through center hole
or wire management port.
Loosen set screw BEFORE
attaching pipe. Screw
extension pipe into ceiling
plate, then tighten set screw.
Page 1 of 4
TITAN ELITE CEILING & WALL MOUNT INsTALL
ICW recommends wood or metal stud mounting only.
Wire management holes
Loosen the set screw
in ceiling plate before
attaching extension pipe.
Wall Mount
MOUNT WALL EAR & PLATE
Using the 3/16 hex key
provided, attach wall plate
to ear with four 1/4-20
screws provided.
Locate stud and mark top
hole, drill 11/64 pilot hole
and insert #14 screw and
tighten slightly. Using a
level, mark lower holes and
drill pilot holes. Insert #14
screws and, with unit level,
tighten all screws.
NOTE: ICW supplies #14
wood screws. If installing
onto metal studs, you will
need to replace with proper
metal stud fasteners.
MOUNT INLINE CEILING PLATE
Firmly secure ceiling mount
to solid ceiling joist using
four #14 wood screws found
in hardware bag. Be sure
mount is level.
Loosen set screw BEFORE
attaching pipe. Screw extension pipe into ceiling
plate, then tighten set screw.
ATTACH ARM TO EXTENsION PIPE
Thread arm onto extension pipe
and tighten. AFTER arm is firmly
attached, tighten set screw with
5/32 hex key.
DO NOT loosen lower, smaller screw
without instructions from ICW.
TITAN ELITE INSTALLATION - 09/01/16 pjm
Loosen the set screw
in ceiling plate before
attaching extension pipe.
Set
screw
