Summary of Contents for Newworld NWDO60DFS

Page 1 技术要求： 1.材质：铜版纸，材质符合ROHS标准，每平米105g； 2.尺寸：A4（210x290mm）； 3.黑白印刷，印刷字迹清晰明了. 4.图为说明书封面。 Ver. 0 230816 Rev. 1 231031 从新订单 XM11-2-23090055 、XM11-2-23090091 开始更新名称图号英国Portway 商标newworld F66GF4TSE4L232-CC KSMS-Portway-01-005 P23ZK286 NWDO60DFS_FW说明书材料标记处数分区更改文件号签名年月日品号 40400400588 铜版纸标准化设计阶段标记数量比例校对审核...

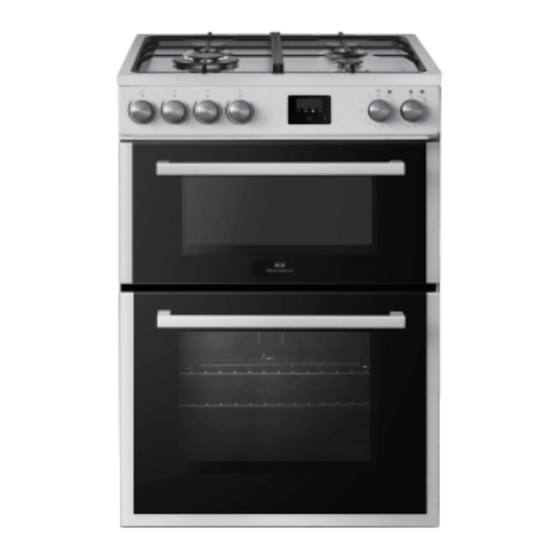

Page 2 60cm Dual Fuel Freestanding Cooker NWDO60DFS NWDO60DFW Instruction manual...
Page 3 You’ll soon be enjoying your new Freestanding Cooker It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your Freestanding Cooker.
Page 4 Contents Safety information Product support Product Support Getting to know your Freestanding Cooker Installing your Freestanding Cooker Using your Freestanding Cooker Care and Maintenance Energy ﬁche Circuit Diagram...
Page 5 Safety information Important - Please read these instructions fully before installing or operating INSTALLATION WARNINGS DURING USAGE IMPORTANT: This product MUST be installed IMPORTANT: This appliance can be used by by a qualiﬁed Gas Safe registered installer in children aged from 8 years and above and accordance with local regulations.
Page 6 Safety information Important - Please read these instructions fully before installing or operating IMPORTANT: The materials surrounding the CAUTION: When the oven is hot never touch appliance (cabinets) must be able to the oven glass by hand or with tools. withstand a minimum temperature of 100°C.
Page 7 Safety information Important - Please read these instructions fully before installing or operating GENERAL SAFETY WARNINGS CLEANING AND MAINTENANCE IMPORTANT: This appliance has been IMPORTANT: Always turn the appliance o designed for non-professional, domestic before operations such as cleaning or use only.
Page 8 Getting to know your Freestanding Cooker You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your freestanding cooker and ensure safe and correct installation and operation.
Page 9 Getting to know your You’ll be up and running in no time Gas burners Cast Iron Trivets Control Panel 4. Shelf positions Wire Shelf Top Oven Door Guide Bracket Wire Shelf Baking tray 10. Bottom Oven Door Hinge 12. Door Seal Door lock 14.
Page 10 Getting to know your Freestanding Cooker Accessories Baking tray x 1 Grill insert x 1 Chrome shelves x 3 Grill pan handle x 1...
Page 11 Installing your Freestanding Cooker Bringing it all together Installation requireme nts Data Label THIS COOKER MUST BE INSTALLED The Data Label is located on the rear of the ACCORDING TO BS 6172: 2010 BY A SUITABLY appliance.This appliance is suitable for Natural QUALIFIED GAS SAFE REGISTERED INSTALLER Gas and Universal LPG;...
Page 12 Freestanding Cooker Installation of Cooker ﬂo Emptying of the Burned Gases from Environment CONTACT AN AUTHORISED SERVICE AGENT FOR INSTALLATION OF YOUR OVEN! VENTILATION REQUIREMENTS Air inlet section min 100cm2 Attention: Regardless of room size, all rooms Air inlet section containing the appliance must have direct access to min 100cm2 the outside air via an openable window or equivalent.
Page 13 Installing your Freestanding Cooker Bringing it all together Gas Connection IMPORTANT - All Gas installations must be carried out by a suitably qualiﬁed person. For information on choosing a gas installer contact the ‘Gas Safe Register’. www.gassaferegister.co.uk The appliance can be placed close to other furniture on condition that the furniture’s height does not exceed the height of the cooker panel.
Page 14 Installing your Freestanding Cooker Bringing it all together Gas Conversion (NG to U-LPG) Setting the minimum level CONVERSION TO A DIFFERENT GAS TYPE MUST BE 1. Light one of the burners and turn the tap to CARRIED OUT BY A SUITABLY QUALIFIED GAS SAFE minimum flame REGISTERED INSTALLER 2.
Page 15 Installing your Freestanding Cooker Unpacking Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and call an authorized service technician. Levelling feet The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each corner.
Page 16 Installing your Freestanding Cooker Bringing it all together Electrical connection IMPORTANT: Electrical connections must be carried out by a suitably qualiﬁed person and in accordance with all relevant local building and installation regulations. Fitting on a Power Supply Cable Connecting appropriate power supply · terminal board/ connector block: Using a screwdriver ,prize open tabs of the Terminal board cover.
Page 17 Using your Freestanding Cooker Control panel • Adjusts the ﬂame of the hobs...
Page 18 Using your Freestanding Cooker Oven functions Defrost mode Oven light Grill - Hot air comes from the upper and lower element in the oven. This is called Top & Bottom Element Conventional cooking and is ideal for joints of meat. Bottom Element - Bottom element cooking is used for foods that typically need cooking with heat from underneath - Cakes and Bread are examples of where this function would be useful.
Page 19 Using your Freestanding Cooker Programmable Timer Clock setting Set the time before you start using the oven. 2A - Having no further settings in a few seconds, the " " symbol will stop ﬂashing and turn When connecting the appliance to the electrical always lighted, immediately cooking is started.
Page 20 Using your Freestanding Cooker Timer setting The longest settable time interval is 23 hours and 59 minutes. 1 - To set the time, press the function selection button " " repeatedly until the " " symbol starts ﬂashing, then press the "+" or "-" button to set the required time, which will be shown on the display;...
Page 21 Using your Freestanding Cooker Getting the most from your appliance General oven and cooking tips General Oven Tips The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves.
Page 22 Using your Freestanding Cooker Getting the most from your appliance Practical Cooking Advice The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.
Page 23 Using your Freestanding Cooker Getting the most from your appliance Controls Gas Burner Components Control knob (Hob top Burners) Instructions for use (hob top burners) The symbols on the control knobs mean the following: Maximum gas flow or ‘high’ flame and These parts can be removed for cleaning lighting position periodically.
Page 24 Using your Freestanding Cooker Getting the most from your appliance To light the hob burners The use of pans in excess of the maximum To light the burner, press the control knob fully diameter recommended in the table above can down and hold the knob down before rotating result in over heating/discoloration of hob surface.
Page 25 Care and maintenance Looking after your appliance Cleaning WARNING! Isolate the power supply to the appliance and make sure that the cooker is cool. Before cleaning your cooker or performing maintenance, make sure that the cooking mode selection knob and the cooking temperature selection knob is set to ‘OFF’.
Page 26 Care and maintenance Replacing the oven lamps Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains ;or unplug the appliance. Remove the glass cover of the lamp-holder by rotating anti-clockwise.
Page 27 Upper door Lower door NWDO60DFS / NWDO60DFW Model Voltage and frequency 220-240V AC 50Hz Upper oven power consumption 1600-1900W Lower oven power consumption 1710-2030W Total oven power consumption 3310-3930W Upper oven usable capacity Lower oven usable capacity Auxiliary Burner 1000W x 1...
Page 28 Energy ﬁche Brand Model NWDO60DFS / NWDO60DFW Type of oven Electric Mass 49 (+/-2) 73.5 (upper oven) N.A. (lower oven) N.A. (upper oven) 94.5 (lower oven) A+ (upper oven) Energy Class A (lower oven) Energy consumption (electricity) - conventional kWh/cycle 0.50 (upper-left oven)
Page 29 Circuit Diagram Heat dissipation fan junction box 45°C Temperature adjuster 120°C Thermal cut-out Light Circulation fan Lamp Light Lamp Top Grill Thermostat switch Back Bottom Grill Grill Thermostat switch 40402501449 Note: CA: SPARK PLUG MI: IGNITION MICRO SWITCH GA: IGNITION GENERATOR...
Page 30 Product support Help is always at hand Troubleshooting If you have a problem with your appliance, check the troubleshooting table below to try and rectify your problem before calling your product support service centre. Problem Possible Cause Solution Only parts of the cooker Links may be missing in Refer to the Quick Start work it may be that the ovens...
Page 31 Product support Help is always at hand Help and assistance If you require any technical guidance or find that your Freestanding Cooker is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 305 2263*.
Page 32 Declaration of conformance to Disposal product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relavant standards 2012/19/EU on Waste Electrical applicable to domestic appliances sold in the UK and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...
Page 33 Call us now and activate your 3 years guarantee Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 3 years. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.
