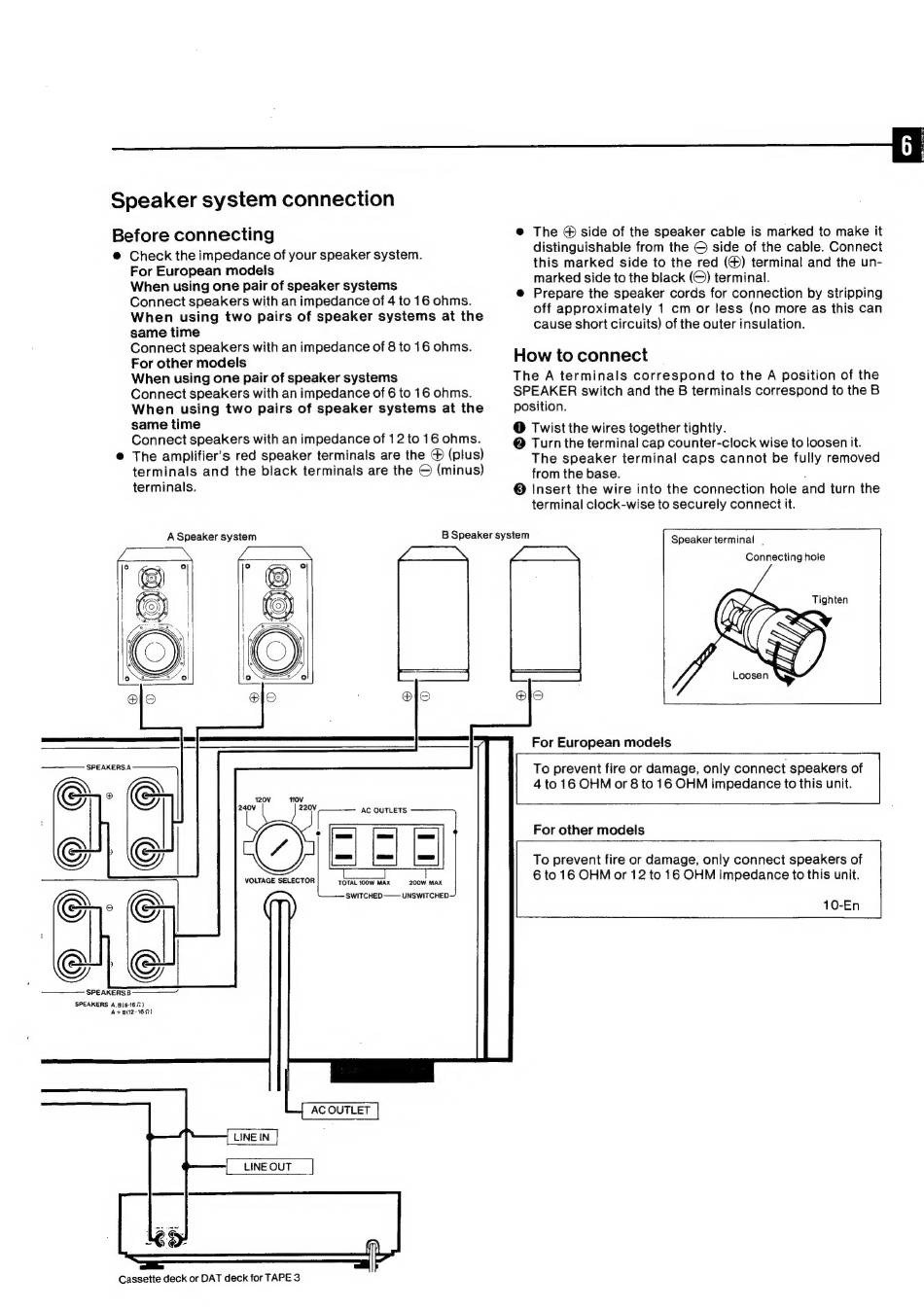

Speaker system connection
Before connecting
@ Check the impedance of your speaker system.
For European models
When using one pair of speaker systems
Connect speakers with an impedance of 4 to 16 ohms.
When using two pairs of speaker systems at the
same time
Connect speakers with an impedance of 8 to 16 ohms.
For other models
When using one pair of speaker systems
Connect speakers with an impedance of 6 to 16 ohms.
When using two pairs of speaker systems at the
same time
Connect speakers with an impedance of 12 to 16 ohms.
@ The amplifier's red speaker terminals are the @ (plus)
terminals and the black terminals are the © (minus)
terminals.
A Speaker system
SPEAKERS.A
120V nov
240V 220V —
AC OUTLETS
EL
VOLTAGE SELECTOR TOTAL 100W MAX
SWITCHED —— UNSWITCHED.
200W MAX
SPEAKEARS.B
SPEAKERS A,B(6-16 ©)
A+B(12-162)
AC OUTLET
LINE IN
LINE OUT
Cassette deck or DAT deck for TAPE 3
B Speaker system
@ The @ side of the speaker cable is marked to make it
distinguishable from the © side of the cable. Connect
this marked side to the red (@) terminal and the un-
marked side to the black (©) terminal.
@ Prepare the speaker cords for connection by stripping
off approximately 1 cm or tess (no more as this can
cause short circuits) of the outer insulation.
How to connect
The A terminals correspond to the A position of the
SPEAKER switch and the B terminals correspond to the B
position.
@ Twist the wires together tightly.
@ Turn the terminal cap counter-clock wise to loosen it.
The speaker terminal caps cannot be fully removed
from the base. .
® Insert the wire into the connection hole and turn the
terminal clock-wise to securely connect it.
Speaker terminal |
Connecting hole
Tighten
For European models
To prevent fire or damage, only connect speakers of
4 to 16 OHM or 8 to 16 OHM impedance to this unit.
For other models
To prevent fire or damage, only connect speakers of
6 to 16 OHM or 12 to 16 OHM impedance to this unit.
10-En
