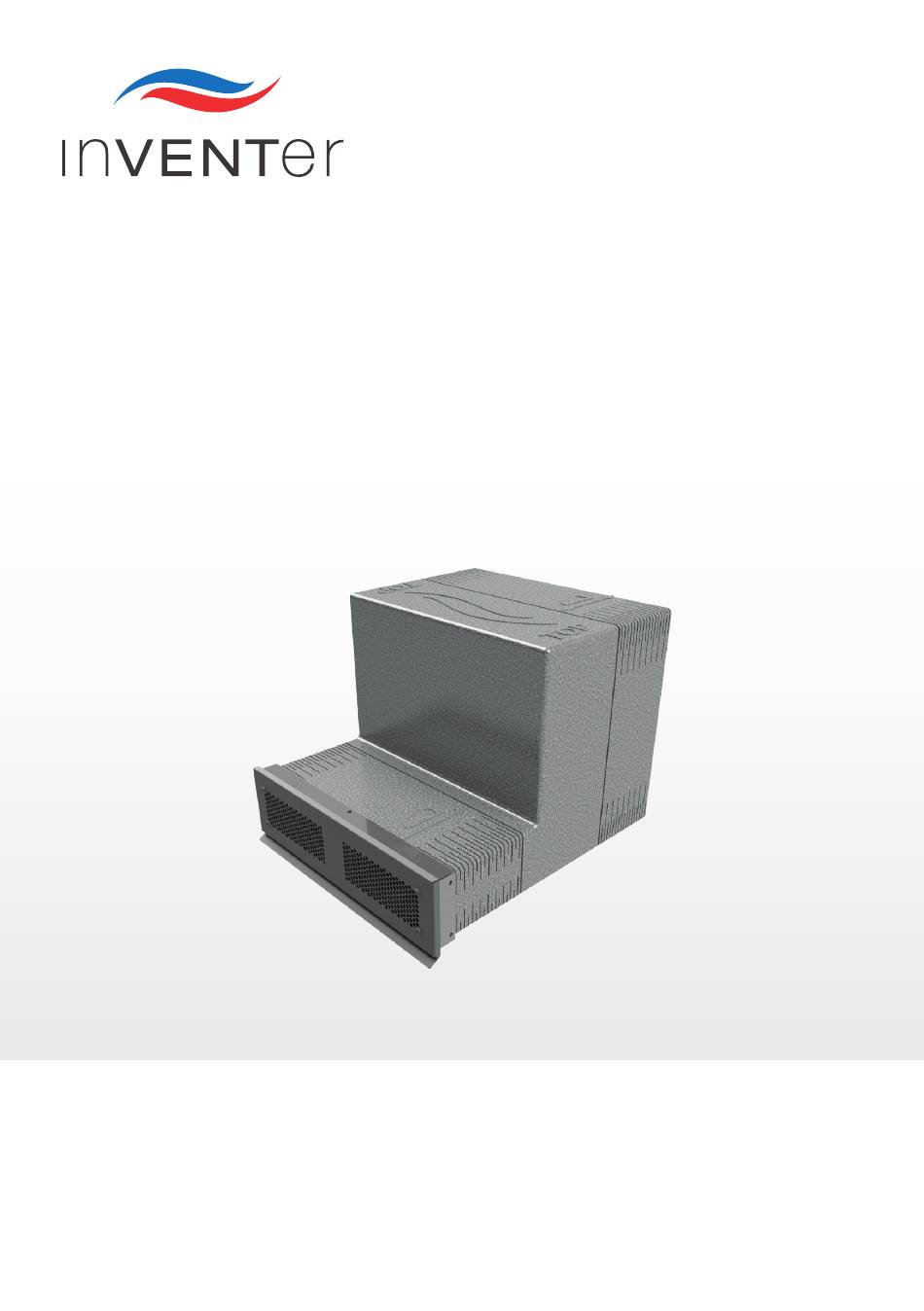

- Page 1 Installation instructions Nordic external termination Nordic façade termination Nordic V-290x89 external grille www.inventer.eu...
- Page 2 +49 (0) 36427 211-0 Ortsstraße 4a Fax: +49 (0) 36427 211-113 07751 Löberschütz E-mail: info@inventer.de Germany Web: www.inventer.de CEO: Annett Wettig VAT ID number: DE 815494982 Jena District Court HRB 510380 Nordic variant of the inVENTer ventilation units | Installation instructions...
-
Page 3: Table Of Contents
Fitting the façade termination ....................19 Fitting the external grille ......................28 Technical data ..........................29 Scope of supply ..........................29 Disposal ............................29 Guarantee and warranty ........................ 30 Service ............................. 30 Nordic variant of the inVENTer ventilation units | Installation instructions... -
Page 4: User And Safety Instructions
Blue bar over a graphic: graphic shows the exterior wall. Action required: This prompts the user to perform a specific action. ► Check the results: This requires you to check the results of the action you have performed. Nordic variant of the inVENTer ventilation units | Installation instructions... -
Page 5: Safety Instructions
USER AND SAFETY INSTRUCTIONS Safety instructions The installation instructions are part of your Nordic external termination and must be available at all times (see www.inventer.de/downloads). When handing the system to a third party, the information regarding access to the installation instructions must be handed over also. - Page 6 Installation must only be carried out by trained professionals. Installation must not be carried out by children and/or persons who are not fully capable of doing so due to their physical, sensory or mental capabilities, inexperience or lack of knowledge. Nordic variant of the inVENTer ventilation units | Installation instructions...
-
Page 7: Overview: Nordic External Termination
(white/grey/anthracite/custom colour) optimised for clinker brick height means that the ventilation units are integrated into the wall structure in a visually discreet manner. The Nordic external termination can be cut to size. It can be shortened if required and is therefore suitable for insulation thicknesses from 120 mm to 320 mm. -
Page 8: Scale Drawings
Sliding sleeve M3x0,5 Ø Figure 3: Scale drawing of sliding sleeve V-284x74x20 1 Sliding sleeve 3 Fixing holes for external grille (4 x) 2 Fixing holes for façade termination (6 x) Nordic variant of the inVENTer ventilation units | Installation instructions... -
Page 9: Preparing For Installation
Plaster + masonry + insulation + render Plaster + masonry + insulation + air gap + 115 mm clinker brick only necessary in conjunction with Connect UP inner cover and Undercover inner cover Nordic variant of the inVENTer ventilation units | Installation instructions... -
Page 10: Position Of The Wall Opening
Minimum wall thickness – Insulation thickness 120 ... 315 – R-D103 wall sleeve 495 (745) Diam. 103 Nordic façade termination 120 ... 315 Nordic V-290x89 external grille Masonry and plaster. Nordic variant of the inVENTer ventilation units | Installation instructions... - Page 11 Minimum wall thickness – Insulation thickness 120 ... 315 – Wall sleeve 495 (745) Diam. 160 Diam. 200 Nordic façade termination 120 ... 315 Nordic V-290x89 external grille Masonry and plaster Nordic variant of the inVENTer ventilation units | Installation instructions...
-
Page 12: Sectional Drawing Of The Installation Setup
Installation version 1: Twin-shell masonry with facing (clinker) ≤ 90 1 – 2° Wall thickness ≥ 355 12,4 Figure 8: Sectional drawing showing the aV100 ALD Nordic ventilation unit (side view) as an example A Plaster 1 External grille with sealing tape B Masonry 2 Drip rail... - Page 13 120 ... 315 1 – 2° Wall thickness ≥ 250 12,4 Figure 9: Sectional drawing showing the av100 ALD Nordic ventilation unit (side view) as an example A Plaster 1 External grille with sealing tape B Masonry 2 Drip rail...
- Page 14 Installation version 1: Twin-shell masonry with facing (clinker) ≤ 90 1 – 2° Wall thickness ≥ 475 12,4 Figure 10: Sectional drawing showing the iV-Smart+ Nordic ventilation unit (side view) as an example A Plaster 1 External grille with sealing tape B Masonry 2 Drip rail...
- Page 15 TICS 120 ... 315 1 – 2° Wall thickness ≥ 370 12,4 Figure 11: Sectional drawing showing the iV-Smart+ Nordic ventilation unit (side view) as an example A Plaster 1 External grille with sealing tape B Masonry 2 Drip rail...
- Page 16 Installation version 1: Twin-shell masonry with facing (clinker) 1 – 2° 12,4 Wall thickness ≥ 475 Figure 12: Sectional drawing showing the iV14-MaxAir Nordic ventilation unit (side view) as an example A Plaster 1 External grille B Masonry 2 Drip rail...
- Page 17 TICS 120 ... 315 1 – 2° 12,4 Wall thickness ≥ 370 Figure 13: Sectional drawing showing the iV14-MaxAir Nordic ventilation unit (side view) as an example A Plaster 1 External grille B Masonry 2 Drip rail C External thermal insulation composite...
-
Page 18: Installation And Assembly
Check the delivery for completeness and transport damage upon receipt using the delivery note. Report missing items immediately. The scope of supply of the Nordic external termination is made up of two delivery units: The Nordic façade termination with Nordic sliding sleeve, and a Nordic external grille. -
Page 19: Installation Instructions And Requirements
Make sure that the cut-out in the circumferen- tial end-stop tape is placed in the lower area of the wall sleeve (condensate drip). Nordic variant of the inVENTer ventilation units | Installation instructions... - Page 20 Wall sleeve � 160 mm ► Cut the inner ring circumferentially out of the adapter. Also observe the installation markings on the adapter. ► Remove the inner ring cut from the façade termination. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 21 The smaller ring on the adapter is not needed; it can be disposed of. Wall sleeve � 200 mm No adapter is used for installing your ventilation unit. The entire adapter is disposed of. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 22 ► Shorten the adapter required for the ventilation unit on the side without the installation marking by the offcut on the masonry side (Y). You have cut the adapter to size. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 23 ► Shorten the adapter required for the ventilation unit on the side without the installation marking by the offcut on the masonry side (Y). You have cut the adapter to size. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 24 To do this, gradually pull off the protective film from the adhesive surface of the sealing tape. ► Also secure the sealing tape on the inside to the sliding sleeve's central strut. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 25 Check the cut length again to ensure it matches the length determined.Ensure that you measure up to the edge of the sliding sleeve. The plaster protection is not included in the measurement. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 26 The air outlet must always be directed towards the ground. Wall sleeve support Air outlet ► Align the façade termination horizontally. The façade termination is secured to the exterior wall. Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 27 10 mm of insulation is applied to the façade termination. ► Apply the render to the insulation. ► Render the sliding sleeve flush with the render. The façade termination is secured to the exterior wall. Nordic variant of the inVENTer ventilation units | Installation instructions...
-
Page 28: Fitting The External Grille
► Screw the external grille to the sliding sleeve. Make sure that the drip rail is directed towards the ground. You have fitted the external grille. The external termination is fitted. Nordic variant of the inVENTer ventilation units | Installation instructions... -
Page 29: Technical Data
TECHNICAL DATA, SCOPE OF SUPPLY, DISPOSAL TECHNICAL DATA Technical data The technical data contained in the instructions for your specific ventilation unit apply. The use of the Nordic external termination results in the following standard sound level differences: Standard sound Standard sound level Ventilation unit... -
Page 30: Guarantee And Warranty
Failure to observe the intended use will invalidate all warranty claims. Manufacturer warranty inVENTer GmbH provides a five-year warranty for all electrical components and the wall sleeve, as well as a thirty-year warranty for the ceramic component of the thermal accumulator. - Page 31 GUARANTEE AND WARRANTY NOTES Nordic variant of the inVENTer ventilation units | Installation instructions...
- Page 32 GmbH Ortsstraße 4a D-07751 Löberschütz Germany www.inventer.eu Subject to modifications. We accept no liability for printing errors. Item number: 5050-0006 Version: 1.0 – 04/2021...
