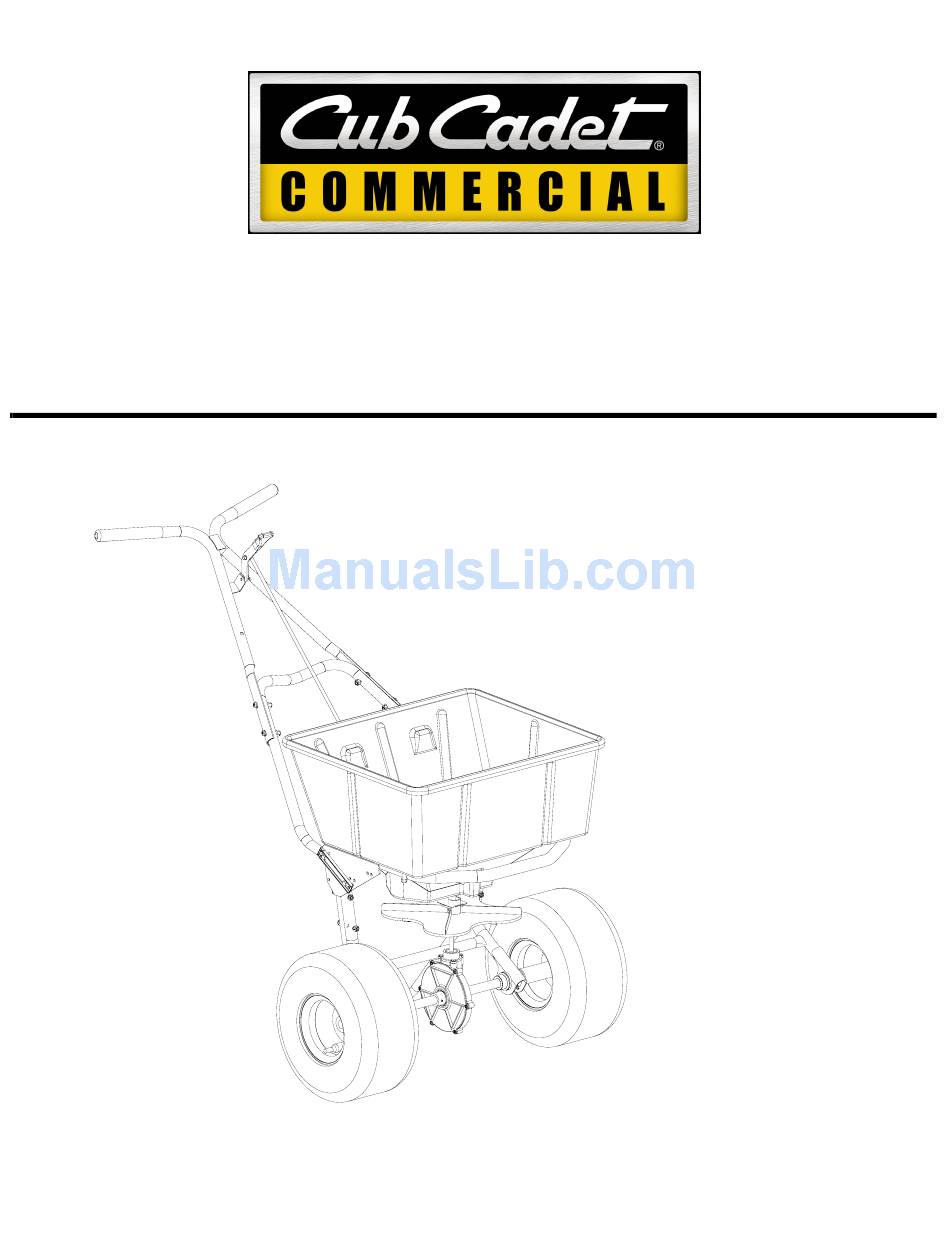

- Page 1 80 LB Stainless Steel Rotary Spreader Professional Turf Equipment PARTS LIST AND INSTRUCTIONS This product may be covered by one or more of the following patents: 4,511,090, Pending...
- Page 2 80LB. Hopper Assembly - Figure 1 and Parts List The Optional Jet-Action Deflector Part No. 02004523 Ref. Part Description 00031168 Screw, 1/4-20 x .75 00060036 Lock Nut, 1/4-20 00061066 Deflector 00060057 Screw, 1/4-20 x 7/8 00061052 Cotter Pin 00061053 Flat Washer 01006254 Mounting Tube 01006305 Handle 01006308 Ring Support...
- Page 3 Ref. Part Description 00010171 Retainer Clip “C” 00018901 Drive Wheel 02004758 KIT, IMPELLER andGEAR SET 00030317 Impeller 00030382 Impeller Shaft 00030383 Axle 00030384 Gearset Oil Seal 00030385 Gearset Seal 00030415 Tap Screw 00030446 Handle Grip 00030591 Gearset Housing 00030592 Gearset Cover 00030593 Gearset Cap 00030594 Gearset Bevel Gear 00030595 Gearbox Pinion Gear...
- Page 4 Shut-Off Assembly - Figure 3 and Parts List Ref. Part Description 01006825 Shut-off Plate 00020492 Slide Lever 01009945 Cotter Pin, 3/32 x 1/2 Lg 00060033 Flat Washer, 1/4” 00060036 Nylock Nut, 1/4-20 00060060 Pivot Lever Assembly 00060061 Pivot Lever Rod Ref.
-
Page 5: Mounting Instructions
Mounting Instructions Install the deflector tube mount (ref. 20) onto the right side of the spreader frame (from the inside) as shown. Install the tube bracket mount (ref. 19) to the right side of the frame using appropriate hardware as shown. -
Page 6: Parts List
The Optional Remote 3rd Hole Slide - Part No. 02004521 Mounting Instructions 1. Mount the dual lever bracket (Ref. 1) to the right handle using one machine screw (Ref. 2), one flat washer (Ref. 3) and one hex nut (Ref. 4) as shown below. - Page 7 Rotary Spreaders - Assembly Instructions Hopper and Frame 1. Remove the spreader components from the carton. You should find all of the parts shown above plus the Hardware Package. The Hardware Package contains: C-Clip Calibration Gauge (ODD) Calibration Gauge (EVEN)
-
Page 8: Spreader Calibration
1,000 sq. ft. (10 ft. x 100 ft. = 1,000 sq. ft.). Weigh 20 lbs. of product and place it in the spreader hopper and spread it over the distance necessary to equal 1,000 sq. ft. (100 ft.). Then weigh the product left in the hopper and subtract this amount from the amount with which you started. - Page 9 General Requirements-Personal Protective Equipment: OSHA Standard 1910.132 through 1910.139 OSHA standard 1910.132 states in relevant part: a. Protective equipment, including personal protective equipment (PPE) for eyes, face, head, and extremities, protective clothing, respiratory devices, and protective shields and barriers, shall be provided, used, and maintained in a sanitary and reliable condition whereever it is necessary by reason of hazards of processes or environment,...
- Page 10 Many factors influence how long PPE (especially respirators) re- mains effective. As well as hours of use, an air-purifying respira- tor’s service life is affected by the concentration of dust and other contaminants in the enviroment; the user’s body size; how strenu- ously the user works while the respirator is worn;...
- Page 11 Notes...
- Page 12 The limited warranty set forth below is given by Cub Cadet LLC with respect to new merchandise used for commercial and related purposes...
