Elite Acoustics Engineering
StompMIX X4-2
4 Channels Digital Mixer Pedal
with Rechargeable Battery
Quick Guide Handbook - V1.02
WHAT IS IN THE BOX
Your StompMix X4-2 package contains the following:
(1) StompMix X4-2 unit
(1) AC to 12VDC Power Supply Adapter
NOTE: Due to continuous development and improvements of our products, features and specifi cations are subject to
change without notice. All weights and measures are approximate.
For more technical questions, please visit: www.eliteacoustics.com
Advertisement
Related Manuals for Elite Acoustics Engineering StompMIX X4-2
Summary of Contents for Elite Acoustics Engineering StompMIX X4-2
- Page 1 Rechargeable Battery Quick Guide Handbook - V1.02 WHAT IS IN THE BOX Your StompMix X4-2 package contains the following: (1) StompMix X4-2 unit (1) AC to 12VDC Power Supply Adapter NOTE: Due to continuous development and improvements of our products, features and specifi cations are subject to change without notice.
-
Page 2: Lcd Functions

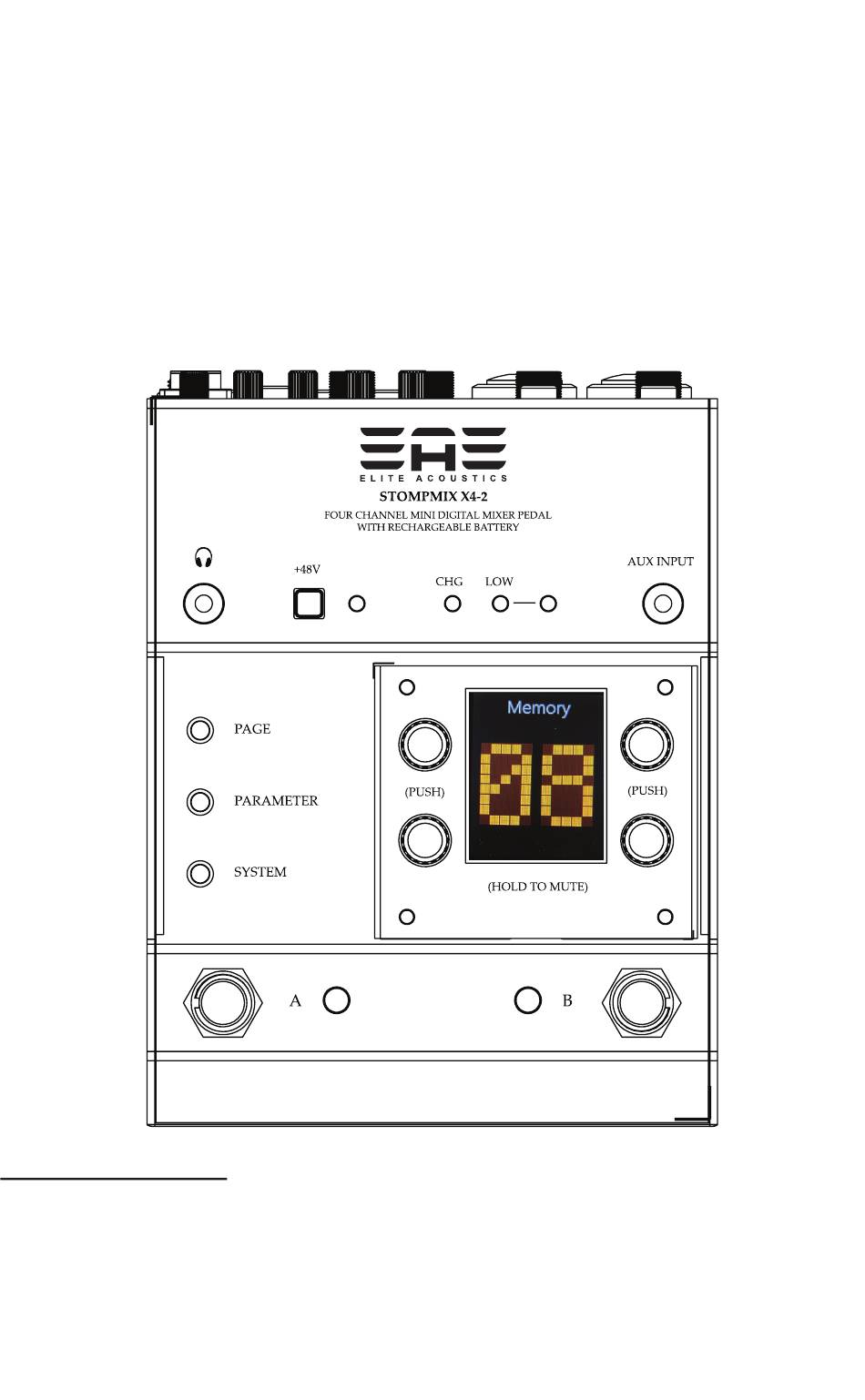

LCD FUNCTIONS Menu Buttons with LCD: Press any of the 3 menu buttons(black button located to the left theLCD) or 4 encoders(blue knobs located around LCD) to access and adjust features and settings. Most menus have several pages of options, which are adjusted by turning the corresponding encoder. - Page 3 “MUTE” HOLD down the Corresponding encoder to MUTE or UNMUTE each channel.
- Page 4 PRESS the “page” button to access these FUNCTIONS “Main Mix” “Aux Mix” Adjust the level Adjust the level of each of the 4 of each of the 4 channels sent channels sent to the Aux Mix to the Main MIX Outputs.
- Page 5 PRESS the corresponding Encoder knob for these Functions. use the corresponding Encoder knob for these Functions. “Channel EQ” Adjust for each channel Mid Freq High “Channel Util” - more details on next page. Polarity (=) or (-) Notch Filter Filter - Off/Highpass/Notch Filter Freq.
- Page 6 use the corresponding Encoder knob for these Functions. “Channel Util” Input Phase Polarity is (-) Reversed. Notch - 76 Hz. Filter - Notch 56 Hz. “Channel Util” Input Phase Polarity is (=) - NOT reversed. Notch - OFF Filter - OFF Filter Freq.
- Page 7 Editing “Main Mix” parameters PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the Main Mix stereo panning for each of the 4 channels. Preset “Parameter” key Adjust the Main Mix output Level.
- Page 8 Editing “Aux Mix” parameters PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the AUX stereo panning for each of the 4 channels. Preset “Parameter” key Adjust Aux Send connection - “Pre” or “Post” Pre - Pre “Main Mix level” Post - Post “Main Mix level”...
- Page 9 Editing “Delay Mix” parameters PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the 4 Delay Parameter by the corresponding encoder knobs.
- Page 10 Editing “Reverb Send” parameters PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the 4 Reverb Parameter by the corresponding encoder knobs. “PreDelay” “Decay” “Tone” and “Shimmer”...
- Page 11 PRESS the “system” button to access these FUNCTIONS Input Meters It is critical to adjust the normal input levels to be below -12db level to avoid Clipping the inputs of the StompMix 4. Distortion can occur when inputs are clipping. CHAN 1 and CHAN 2 have input level knobs and PAD switches, CHAN 3 and CHAN 4 require input level control from the extenal device.
- Page 12 “Memories” Mem - indicated the Memory slot # Clear - to Clean Memory slot indicated Store - to Store Memory slot indicated. “Press” and“Hold” - push/hold the Encoder. Recall - to recall the memory indicated. “Push” - quick press ONLY. DO NOT hold.
- Page 13 USE the corresponding Encoder knob for these Functions. Assign “A” and “B” foot switches “Assigns” “Assigns” “A” -- CHAN 1 “A” - Memory ON/OFF DOWN “B” -- CHAN 2 “B” - Memory ON/OFF “Assigns” “Assigns” “A” - CHAN 1/2 “A” -- Reverb ON/OFF ON/OFF “B”...
- Page 14 USE the corresponding Encoder knob for these Functions. Assign “OUT1” and “OUT2” output routing “Assigns” “Assigns” “MAIN” Mix MON “AUX” Mix and “AUX Mix output to OUT1 MONO output to OUT1 (L/R) “MAIN” Mix output to “AUX” Mix output OUT2 OUT2 “Assigns”...
- Page 15 FootSwitch: A and B. Headphone +48V Battery Status Aux Input Output Charging...
- Page 16 ELITE ACOUSTICS PADP OUT1 Mic/Line Mic/Line Instr Instr CH3C POWER OUT2 INSTR INSTR lift MIC/LINE MIC/LINE OUT1 CHAN 1 LEVEL and PAD MIC/LINE or INSTRUMENT INPUT select Mic/Line Instr INSTRUMENT INPUT (HIGH Z - 1M ohm) 1/4” TS INSTR MIC/LINE combo jack. XLR/1/4”...
- Page 17 CHAN 2 LEVEL and PAD MIC/LINE or INSTRUMENT INPUT select Mic/Line Instr INSTRUMENT INPUT (HIGH Z - 1M ohm) 1/4” TS INSTR MIC/LINE combo jack. XLR/1/4” TRS MIC/LINE OUTPUT 1 LEVEL OUT1 CHAN 1- 4 INPUT LEVEL TRIM CH3C Chan 3/4 INPUT 1/4” TS OUTPUT 2 L/R 1/4”...
- Page 18 lift GND LIFT FOR XLR OUTPUT OUTPUT 1 L/R XLR OUT1 POWER Power Switch DC INPUT (12VDC, 3000mA) USB jack - Factory Use ONLY...
- Page 19 SYSTEM SPECIFICATIONS • System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A conversion. Integrated Digital Mixer supports routing and seamless signal-level management for four fully configurable audio channels. Color Graphic LCD presents a highly intuitive GUI for settings and save &...
- Page 20 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
