Elite Acoustics Engineering
StompMIX X6 - 6 Channels Digital Mixer
with Lithium Battery and Bluetooth
®
Quick Guide Handbook
WHAT IS IN THE BOX
Your X6 package contains the following:

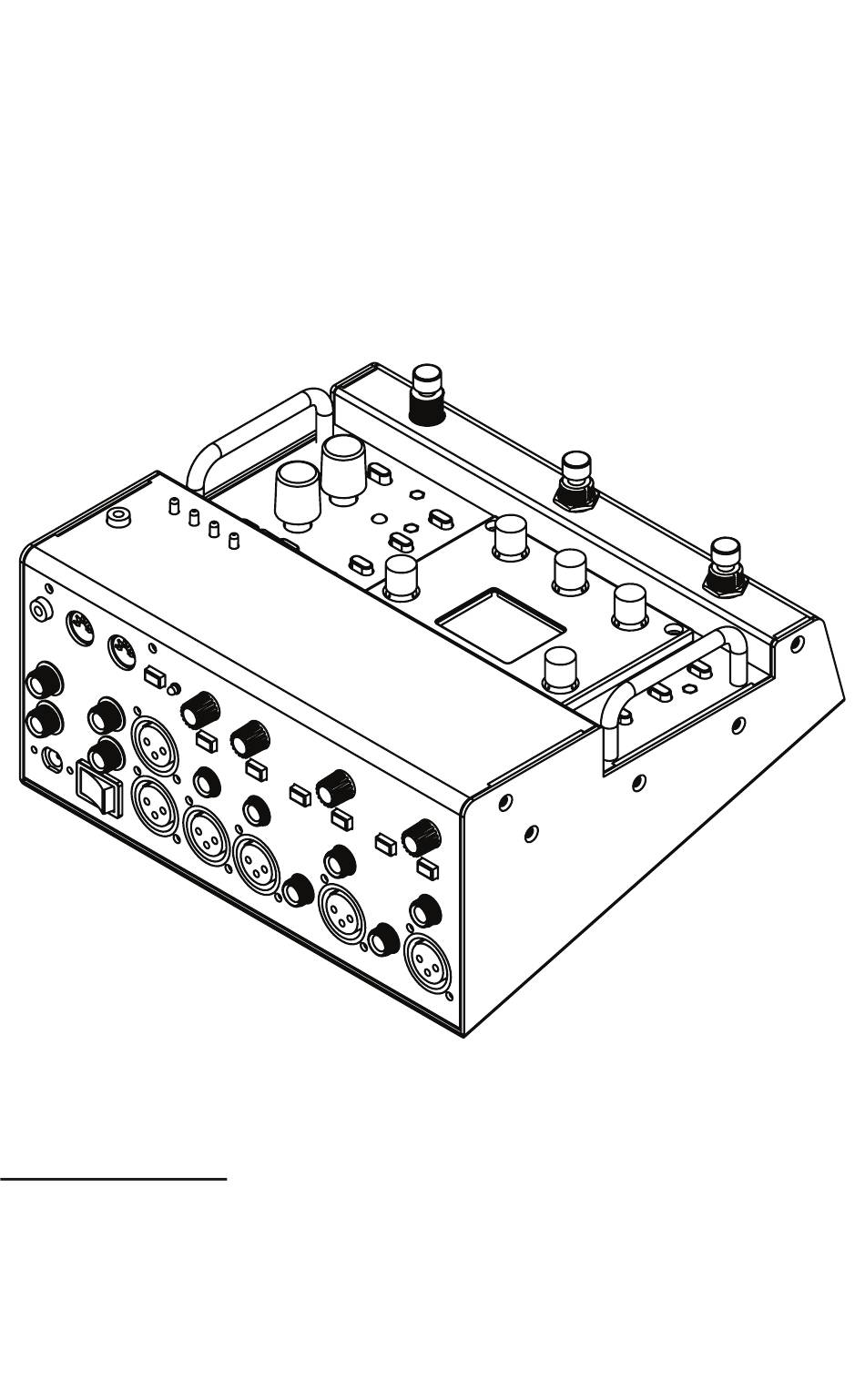

(1) StompMix X6 unit
(1) Quick Start Guide & Registration Card
(1) AC to 12VDC Power Supply Adapter
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Designs, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
For a copy of the complete User's Manual, please visit: www.eliteacoustics.com
Advertisement
Related Manuals for Elite Acoustics Engineering StompMIX X6
Summary of Contents for Elite Acoustics Engineering StompMIX X6
- Page 1 Elite Acoustics Engineering StompMIX X6 - 6 Channels Digital Mixer with Lithium Battery and Bluetooth ® Quick Guide Handbook WHAT IS IN THE BOX Your X6 package contains the following: (1) StompMix X6 unit (1) Quick Start Guide & Registration Card (1) AC to 12VDC Power Supply Adapter The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing.
- Page 2 Foot Switch “A” “B” “MAIN MUTE” Aux Mix Level control Knob. Main Mix Output Controls Main Mix Volume Knob: Mono: Changes Mix Main output to Mono sound Peak LED: RED indicate Signal Clip Signal LED: GREEN indicate Signal Present Main Mix MUTE LED Footswitch to MUTE MAIN MIX output.
-
Page 3: Lcd Functions
Main Ch56 Main Chorus Delay System Reverb LCD FUNCTIONS Menu Buttons with LCD: Press any of the 6 menu buttons(black button located to the left and right of LCD) or 5 encoders(blue knobs located around LCD) to access and adjust features and settings. Most menus have several pages of options, which are adjusted by turning the corresponding encoder. - Page 4 System “System” : “Routing” “System” : “Scenes” Assign “Pre” or “Post” fader i.e., Save and Recall up to 10 mixes i.e., “Main Mix” Channel 1 through scenes. Channel 6, signals to the Aux Sends. You can also select either “Main” mix or “Aux”...
-
Page 5: Bluetooth Function
Chorus Sends Ch56 Chorus “Chorus” : “Chorus Sends” “Chorus” : “Chorus Param” Adjust the Chorus level of each of Adjust the Depth of the Chorus for the 5 channels. each of the 5 channels. Delay Delay Param Route Delay Fbck TimX BPM Chan “Delay”... - Page 6 “FOOTSWITCHES” “A” “B” “MAIN MIX MUTE” Footswithes A and B are used to change Sences. +48V LED: Indicates Midi IN and MIDI out Phantom Power is on DC input Jack and Power Switch...
- Page 7 Channel 1 and 2 Gain: Gain level control PAD: Fixed attenuation to reduce input level Source: Select Mic/ Line or Instrument input Line In: 1/4” TRS input Mic In: XLR for Microphone Input Instrument In [13]: Channel 3 and Channel 4 Gain: Gain level control PAD: Fixed attenuation to reduce input level...
- Page 8 Channel 5/6 1/8” TRS jack input Left (Mono): 1/4” balance TRS input Right: 1/4” balance TRS input Bluetooth Signal can also be mixed into ® Channel 5/6 AUX MIX Output: 1/4” TS Left/Right Main MIX Output: Output XLR Left/Right Connect to an Output Active Speaker for stage Monitoring or...
-
Page 9: System Specifications
SYSTEM SPECIFICATIONS • System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A conversion. Integrated Digital Mixer supports routing and seamless signal-level management for five fully configurable audio channels. Color Graphic LCD presents a highly intuitive GUI for settings, save &... - Page 10 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
