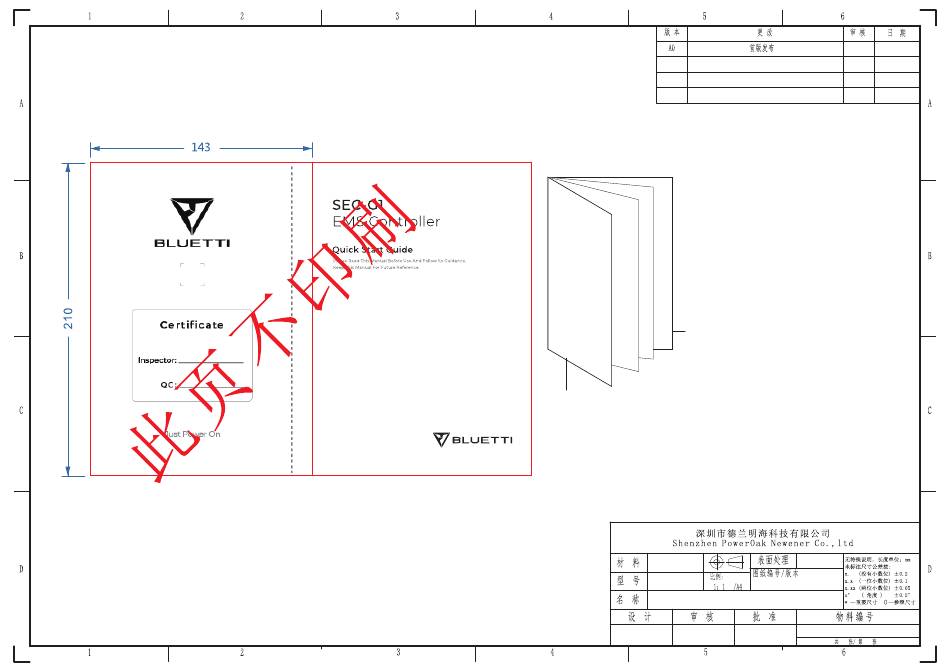

技术要求：
成品尺寸：A5(143*210mm)
材质：80g书写纸封面封底内页，双面印刷，装订；
颜色：单黑印刷；
所用材质需符合RoHS;
注：印刷需清晰，不能有模糊，脏污，脱墨，花点，重影，印歪，
纸张不平整等不良。
封面
说明书示意图
封面
A1
A2
样品承认书要求：
01、封面（供应商&我司承认会签）
02、图纸/规格
03、尺寸报告
04、包装说明
05、试验报告（如纸张，胶水，装订环保证明等）
06、材质分解表（如纸张纸的克重品牌，
材质克重和胶水品牌型号等）
07、材质证明、MSDS（如有第三方正式机构的
证明也附加上）
08、IQC检验报告
封底
页数共16P
SEC-G1
slp020-6d03A0
英文说明书（美规BLUETTI）
杨振华
2024.03.07
杨振华
24.03.07
17.0303.0724-00
Advertisement
Table of Contents
Related Manuals for Bluetti SEC-G1
Summary of Contents for Bluetti SEC-G1
- Page 1 杨振华 24.03.07 封底 封面 样品承认书要求： 说明书示意图 01、封面（供应商&我司承认会签） 02、图纸/规格 03、尺寸报告 04、包装说明 05、试验报告（如纸张，胶水，装订环保证明等） 06、材质分解表（如纸张纸的克重品牌， 材质克重和胶水品牌型号等） 07、材质证明、MSDS（如有第三方正式机构的 证明也附加上） 08、IQC检验报告 封底 封面 页数共16P 技术要求： 成品尺寸：A5(143*210mm) 材质：80g书写纸封面封底内页，双面印刷，装订； 颜色：单黑印刷； 所用材质需符合RoHS; SEC-G1 slp020-6d03A0 注：印刷需清晰，不能有模糊，脏污，脱墨，花点，重影，印歪， 英文说明书（美规BLUETTI） 纸张不平整等不良。 杨振华 17.0303.0724-00 2024.03.07...
- Page 2 SEC-G1 EMS Controller Quick Start Guide Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.
- Page 3 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 4: Table Of Contents
Contents Safety Instructions Key Features Packing List Product Overview Installation EMS Controller 8-core Cable and Ethernet Cable Connection EMS Controller Interface Specifications Appx. 1 FCC WARNING Appx. 2 IC Warning statement Appx. 3 Consignes de sécurité JUST POWER ON... -
Page 5: Safety Instructions
1. Safety Instructions • The EMS controller is ONLY applicable to BLUETTI products. • Only authorized personnel should handle the internal component replacements. No end-user serviceable components available. • The max available output power of the DC power source for this product should not exceed 15W. -
Page 6: Product Overview
4. Product Overview Name Description Connects to the inverter’s LINK PORT or PCS Port 1-3 other devices. For third-party meter and charging station communication, as well as external ATS control. Multi-use Port Ensure the connected meter meets the inverter’s requirements. For mounting the EMS controller on the wall. -
Page 7: Installation
5. Installation 5.1 EMS Controller For a strong and uninterrupted wireless signal, install the EMS controller in an open area, away from obstructions. Keep it close to your home WiFi router. Do not place the controller near walls made of steel-reinforced concrete or metal, as these materials can disrupt both WiFi and Bluetooth signals. -
Page 8: 8-Core Cable And Ethernet Cable Connection
5.2 8-core Cable and Ethernet Cable Connection Connect 8-core cable Connect Ethernet cable Connecting 8-core cable: Step 1: Prepare an 8-core cable (recommended: UL2238, 24AWG) of the appropriate length. Step 2: Twist off the end cap of the 8-core cable. JUST POWER ON... - Page 9 Step 3: Pass the 8-core cable through the cap. Loosen the terminal screw. Refer to the 8-core terminal sequence in the table, insert the cores accordingly, and tighten the screw. Terminal Screw Positioning Hole Connector Function Description Note Reference Diagram RS485-B2 Connects to RS485-B- Charging station...
- Page 10 Connecting Ethernet cable: Step 1: Prepare an Ethernet cable of the appropriate length. Step 2: Refer to the table below, and pass through the Ethernet cable through the cap. Use a crimping tool to properly crimp one end of the cable. Function Color Description...
-
Page 11: Ems Controller Interface
Tap to monitor the energy flow within the system. Tap to configure: • Charging and discharging settings. Besides using the BLUETTI App, you can also adjust system settings here. Please refer to the EMS Controller Interface User Manual for details. -
Page 12: Specifications
7. Specifications Item Description Communication Interface WiFi (2.4GHz) & Bluetooth (4.2) 3 × RJ45: connects to inverters or other devices External Interface 1 × 8-core Connector: connects to meter and so on Antenna External Rod Antenna(North American version) Data Interface Up to 3 Independent CAN (250kbps) Input Voltage 9V-15VDC... -
Page 13: Appx. 1 Fcc Warning
Appx. 1 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 14: Appx. 3 Consignes De Sécurité
2.33dBi Appx. 3 Consignes de sécurité Instructions de sécurité • Le contrôleur EMS s'applique UNIQUEMENT aux produits BLUETTI. • Seul le personnel autorisé doit procéder au remplacement des composants internes. Aucun composant réparable par l'utilisateur final n'est disponible. • Le symbole affiché est destiné à vous rappeler de lire les instructions de la documentation accompagnant le produit avant de l'utiliser et de l'entretenir. - Page 15 SHENZHEN POWEROAK NEWENER CO., LTD. Add: F19, BLD No.1, Kaidaer, Tongsha Rd No.168, Xili Street, Nanshan, Shenzhen, China USA COMPANY Company: BLUETTI POWEROAK INC Add: 6185 S VALLEY VIEW BLVD STE D LAS VEGAS NEVADA 89118 United States FRN: 0033559824...
- Page 16 Warranty Card Manufacture Date Sale Date File No. Manufacturer Warranty Instructions 1. 72-months warranty 2. After-Sale-Service mailbox：service@ bluettipower.com 3. Following situations will go against the warranty terms: A. Any problems, malfunction or damages due to incorrect using methods or caused by unauthorized disassembly or repair. B.
- Page 17 Cer t ifi ca te Inspector: Q C : P/N:17.0303.0724-00A0...
