possIble sensor types to connect to MInI-MIG

part# type
904001-00 Space
904220-00 Temperature
904250-00 Temperature
904022-00 Temperature
904112-00 Temperature
904021-00 Temperature
904060-01 Switch
904060-00 Switch
904060-02 Switch
380001-00 Count (Input #16)
380002-00 Count (Input #16)
380003-00 Count (Input #16)
380004-00 Count (Input #16)
380005-00 Count (Input #16)
380006-00 Count (Input #16)
380010-00 Count (Input #16)
380011-00 Count (Input #16)
380012-00 Count (Input #16)
380013-00 Count (Input #16)
380020-00 Count (Input #16)
380021-00 Count (Input #16)
380022-00 Count (Input #16)
380023-00 Count (Input #16)
380024-00 Count (Input #16)

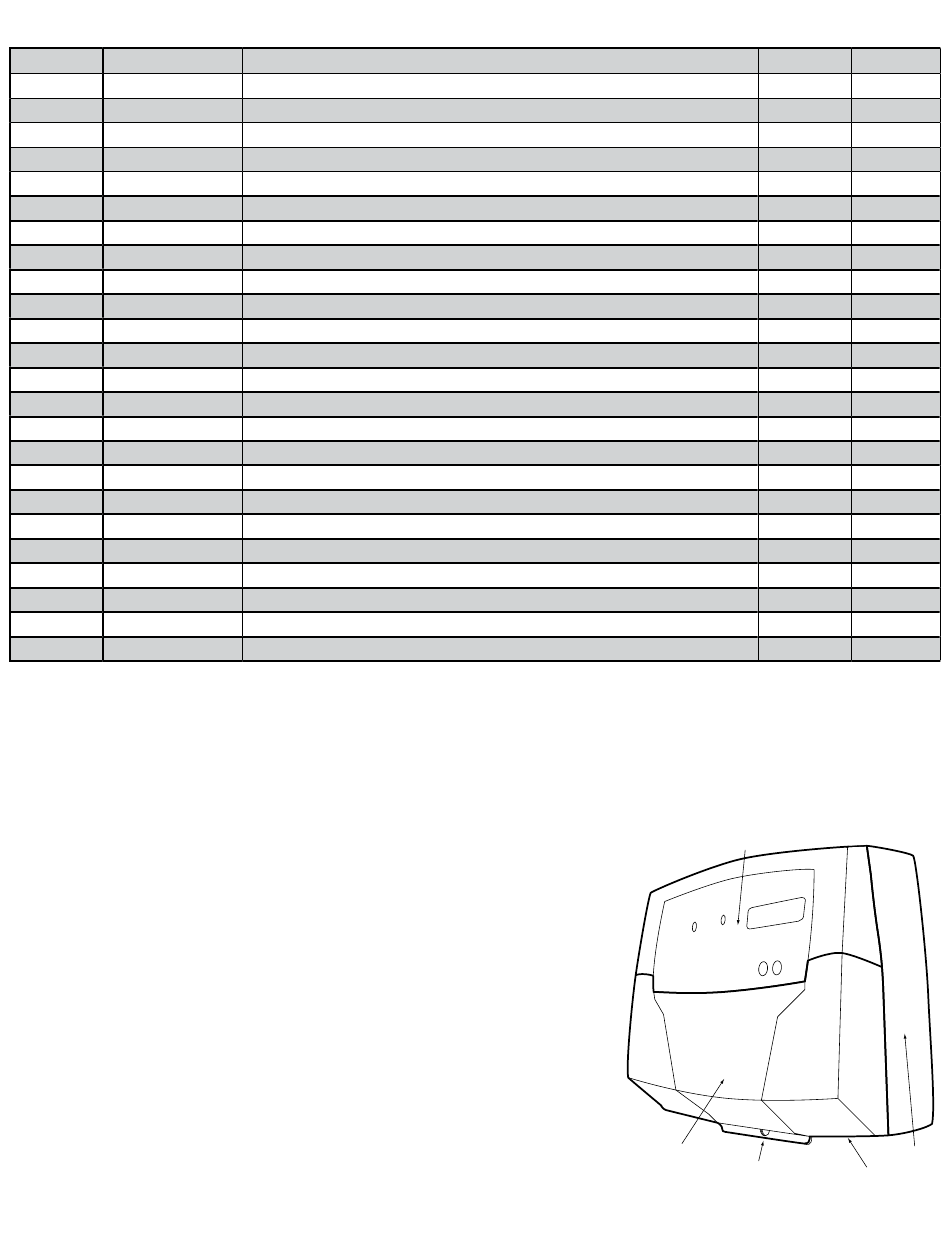

The Mini-MIG consists of three primary enclosure components.
• T he Enclosure Display Module: contains the display, buttons, LEDs and electric wiring terminals. Wiring terminals are of the
plug-in type to ease installation and removal. The Display Module mounts to the
base using two screws. NOTE: Never unscrew the PCB board from the Enclosure
Display Module. If there was a problem with the control, the complete Enclosure
Display Module must be return to factory for inspection and repair.
• T he Enclosure Base: contains the holes to mount and hold the control against the
wall or any flat surface. All other enclosure components mount on the base. The
bottom section of the Enclosure Base contains the wiring chamber with knockouts
on the bottom to ease the installation.
• T he Enclosure Wiring Cover: covers the wires from the external environment.
It has two screws to hold it to the base and a hole to secure a lock on the wiring
enclosure. A plastic web that separates the wiring chamber into high and low volt
sections has been provided.
Room Space Sensor in plastic enclosure to be wall mounted
Outdoor, Strap-On, or Immersion Sensor (3-in-1 Sensor)
Brass Tube Sensor ⅜" diameter with concave surface.
UV, Corrosion, and Moisture Resistant Sensor
Stainless Steel Sensor with Tapered Tip ¼" x 6"
Stainless Steel Sensor with Round tip ¼" x 6"
Float (Sump Pit) Assembly with 1" Clamp- provides Dry Contact closure
Float (Sump Pit) Assembly with 1 ½" - provides Dry Contact closure
Float (Sump Pit) Assembly with 2" - provides Dry Contact closure
Water Meter Counter ½" NPT 150 PSI, 200˚F
Water Meter Counter ¾" NPT 150 PSI, 200˚F
Water Meter Counter 1" NPT 150 PSI, 200˚F
Water Meter Counter 1 ¼" NPT 150 PSI, 200˚F
Water Meter Counter 1 ½" NPT 150 PSI, 200˚F
Water Meter Counter 2" NPT 150 PSI, 194˚F
Water Meter Counter ½" NPT 232 PSI, 248˚F
Water Meter Counter ¾" NPT 232 PSI, 248˚F
Water Meter Counter 1" NPT 232 PSI, 248˚F
Water Meter Counter 1 ½" NPT 232 PSI, 248˚F
Water Meter Counter 2" NPT 232 PSI, 248˚F
Water Meter Counter 3" NPT 232 PSI, 248˚F
Water Meter Counter 4" NPT 232 PSI, 248˚F
Water Meter Counter 6" NPT 232 PSI, 248˚F
Water Meter Counter 8" NPT 232 PSI, 248˚F

InstallatIon

name
Enclosure Wiring Cover
startup
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Enclosure Display Module
Hole for optional lock
Bottom knockouts
(not supplied)
size
1"
1 ½"
2"
½"
¾"
1"
1 ¼"
1 ½"
2"
½"
¾"
1"
1 ½"
2"
3"
4"
6"
8"
Enclosure Base
