HOOKER FURNISHINGS SS640-RPHZ1-088 Assembly Instruction

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loose during
shipment. Read all instruction and study the drawing carefully before starting the assembly process.
Inside the carton you will find a red plastic bag that have the raf recliner's wing in it. Remove the wings from the plastic bag and set
them aside to be used in assembly and installation
CAUTION: Make sure to read the instructions below before assembling your double power raf recliner. We suggest two
people be used in the assembly of your double power raf recliner.

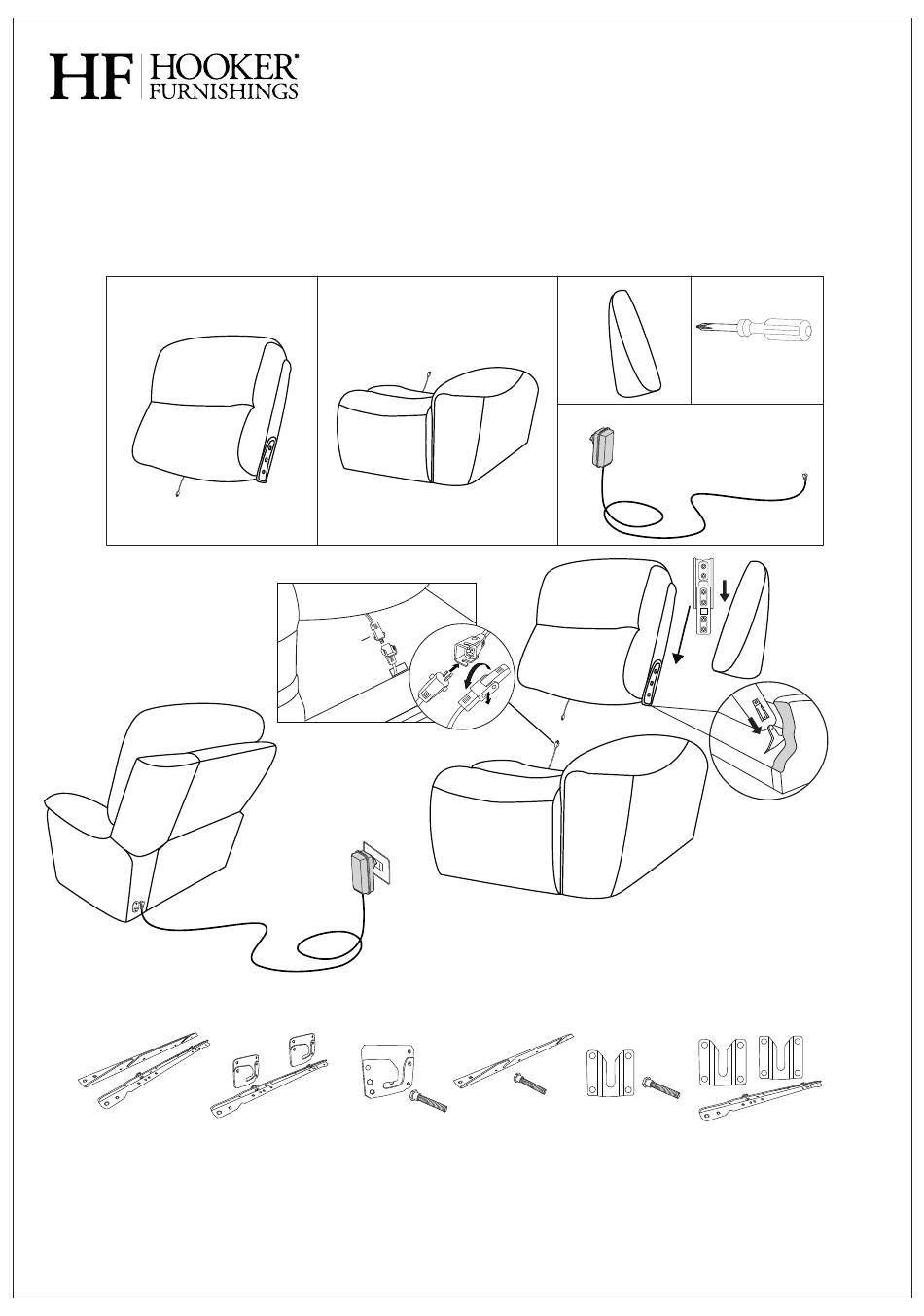

A×1
You can connect two or more recliners by connecting each position with male and female buckle as Figure A illustrated.
Figure A
or
Notes: Do Not plug the power cord into a power outlet until your funiture is fully assembled and in place.
To help prevent shock and or damage to your product only plug the power cord into a grounded outlet.
IMPORTANT NOTE
· To avoid any risk of suffocation to children or pets, dispose of all plastic bags immediately.
· To ensure proper performance, occasionally check for loose screws and tighten as needed.
ASSEMBLY INSTRUCTION
ITEM: SS640-RPHZ1-088 Torres Right One Arm Power Headrest Recliner
B×1
Headrest
The headrest leadwires are yellow.
D
or or
1/ 2
C×1
D×1
A
B
or or
Not Included
C
Ensure both clips on back are
aligned, then press top of back
frame downward until a clicking
sound is heard.
