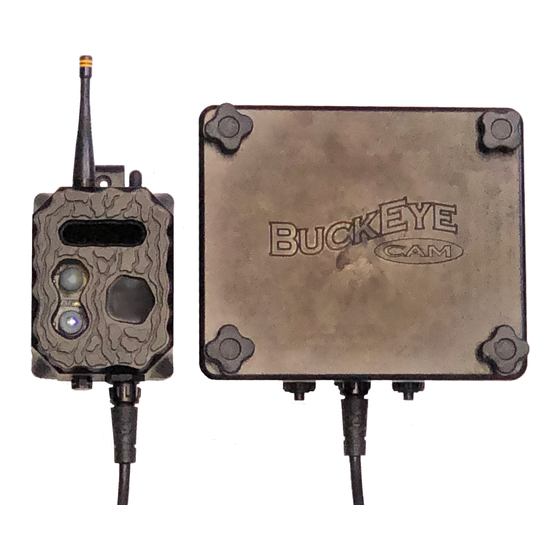

BuckEye Cam X80 User Manual
Dl wireless camera
Hide thumbs
Also See for X80:
- Quick start manual (2 pages) ,
- User manual (16 pages) ,
- User manual (24 pages)
Related Manuals for BuckEye Cam X80
Summary of Contents for BuckEye Cam X80
- Page 1 Product of Athens Technical Specialists, Inc. X80 DL Wireless Camera User's Manual Revision 1.0 www.buckeyecam.com...
-
Page 2: Table Of Contents
This manual is written with the idea that the user has a general knowledge of X80 Wireless network operation. If you are not familiar with X80 Wireless networks, please read X80 Wireless Network User's Manual. The manual can be downloaded from www.buckeyecam.com. -
Page 3: Warnings
Camera Unit or PCBase Unit, the system may not comply with the FCC regulation Part 15.247, Operation within the license-free band 902 – 928 MHz. Contact manufacturer regarding use of optional high-gain antennas with the X80 Wireless Camera System. To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. -
Page 4: Overview
X80 wireless devices operating on the same X80 network. Pictures taken by the camera are transmitted to the computer or server running the X80 Network Manager. Just like other X80 wireless devices the camera has a repeater function, allowing it to extend the range of the network. -
Page 5: Register Camera
3.Register Camera 3. Register Camera Before a camera can be used in the field, it must be registered to an X80 wireless network. X80 Network Manager must be running and connected to a base. Instructions below show how to manually register a camera to the X80 Network Manager software. - Page 6 3.Register Camera Check status using X80 Remote app. Open the X80 Remote app and make sure you are in range of the camera. In the app, tap on the camera to connect to it. If the camera is not registered you should see status lines “Not registered”...
-
Page 7: Camera Control Panel
Commands Commands section has commands such as Check Status and Settings that are common for all X80 devices as well as camera specific commands. Check Status – Software sends a request to the camera to get the latest battery level, RF signal, and picture count information. - Page 8 The number will decrement when the picture or video is received by the X80 Network Manager. Total Received counter can be used to track the total number of pictures the camera took and transmitted.
-
Page 9: Camera Settings
This is a visible red LED on the front of the camera. It is very useful for doing a “walk test” in front of the camera to verify that it is triggering correctly. (Note: If camera concealment is X80 DL Wireless Camera User's Manual 8 of 18... - Page 10 RF communication range to receive trigger commands. Trigger Remote Flashes If an X80 Remote Flash is registered on the network, it can be selected to be activated to increase IR illumination when infrared pictures are taken.
- Page 11 If Bluetooth is set to “Always On”, the user has an option to assign a four character access code. If the code is set, the user would be required to enter it when connecting to the camera using X80 Remote app.
-
Page 12: Camera Installation
Alternatively, the battery pack may be placed on the ground. This may make it easier to conceal. Once the battery pack is in place, connect it to the camera with the supplied cable. X80 DL Wireless Camera User's Manual 11 of 18... - Page 13 Do a “walk test”. Install Step 4 button in X80 Remote app to open preview mode. Walk in front of Open Preview the camera to verify motion detection. A red LED on the front of the camera will blink when the motion sensor is triggered. The camera will also take a picture and transmit it to the app.
- Page 14 6.Camera Installation distance. You can also use Trigger button to manually trigger the camera. Make sure to tap button to exit the preview < Back mode. X80 DL Wireless Camera User's Manual 13 of 18...
-
Page 15: Camera Technical Specifications
7.Camera Technical Specifications 7. Camera Technical Specifications Acceptable Camera Power Option X80 DL Camera can only be powered using the following power sources: Smart Battery Pack Powered with UB1290, 12V SLA battery. • Check status of connected device • Solar charger port, for optional solar panel •... - Page 16 7.Camera Technical Specifications X80 DL Camera Dimensions 1.00 2.55 0.94 1.23 0.74 0.46 4.413 0.38 1.19 1.18 0.50 2.05 3.36 Note: All linear dimensions are in inches. X80 DL Wireless Camera User's Manual 15 of 18...
- Page 17 Transmission range and speed will depend on the type of antennas that are used and the surrounding terrain. Average supply current will vary depending on the number of images taken, signal strength, IR usage, etc.. X80 DL Wireless Camera User's Manual 16 of 18...
-
Page 18: Additional Information
X80 Network Manager video tutorials are available at www.buckeyecam.com. LiveCam Images that are received by X80 Network Manager may be automatically uploaded to an optional LiveCam account. Images that are uploaded to LiveCam may be viewed from any computer that has an Internet connection by logging into your LiveCam account. -
Page 19: Warranty And Service
(866) 325-8172 • (740) 592-2874 Fax (740) 594-2875 www.buckeyecam.com Athens Technical Specialists, Inc. (ATSI) warrants Products (BuckEye Cam ) sold by it and guarantees to correct, by repair or replacement at our option, any defects of material and workmanship which develop under normal and proper use within six (6) months from the date of the original purchase when inspection proves the fault to be of manufacturing.
